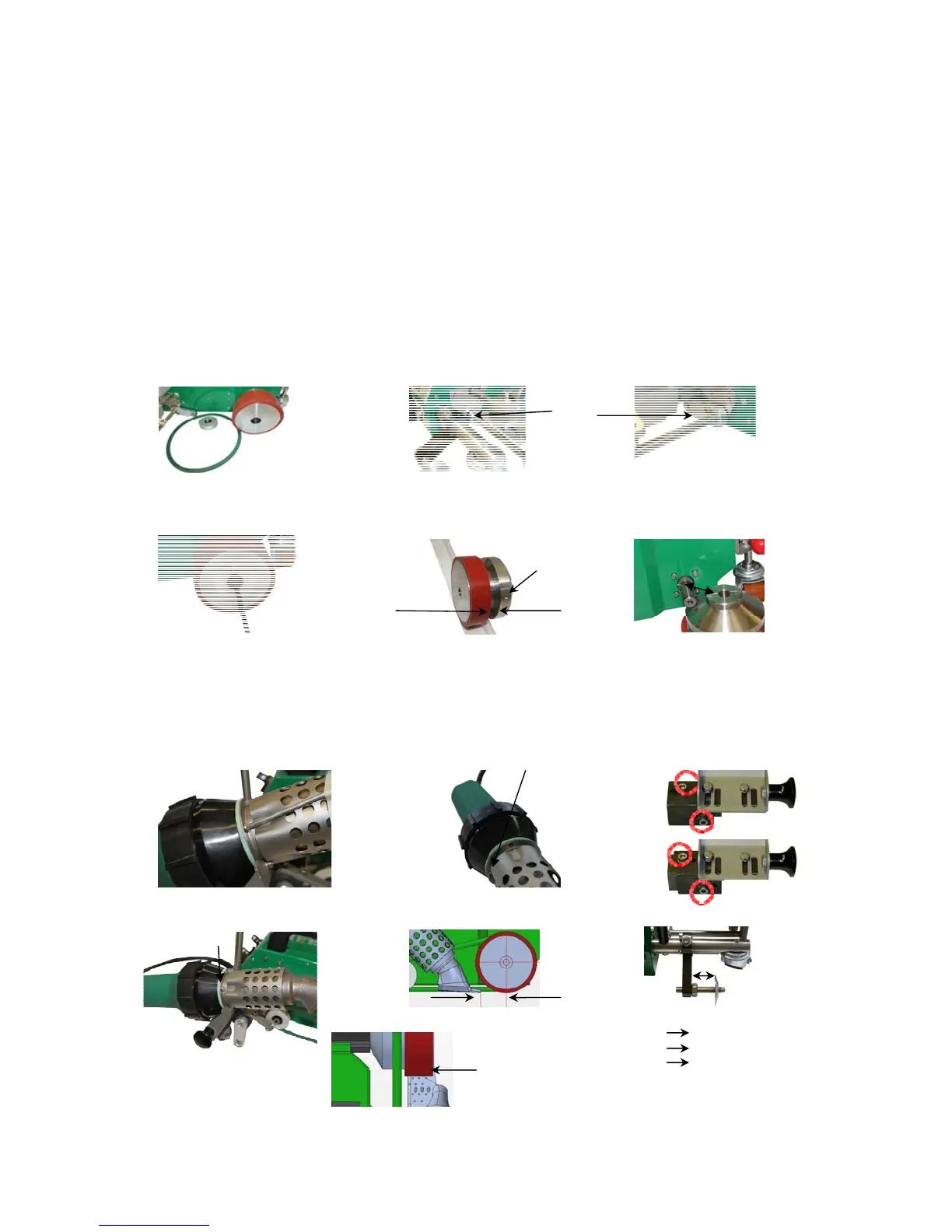

ASSEMBLY INSTRUCTIONS FOR ACCESSORY NO. 4:
KEDER ACCESSORY KIT
Art.no. 5230192 Art.no. 5230193 Basis is here a Planon overlap
Keder roller 30mm Keder roller 40mm welding machine with 30mm or
40mm seam width!!!
Required tools: Allen key SW3/5, Torx wrench T20, Spanner SW17
4.0. Adjustment of the keder accessory kit:
4.1. Switch off the device
4.2. Unplug the tool
4.3. Remove the round belt and the tensioner 4.4. flap the roller backwards and fix it with the screw (12) into the bore hole
(Allen key SW5) (Torx T20)
1
2
4.6. Remove the pressure roller 4.8. Adjust the diameter of the beading 4.7. Mount the desired keder roller
(Allen key AW5) and fix the steel roller with 3 compatibly to the nozzle width
Set screws. (Allen key SW3) (Fixation snaps)
3xfixing
Distance = ø
When the diameter of the keder is mall, fix
the tapered side of the rand disc to the
pressure roller.
When changing the seam width the nozzle must be changed as well!
4.9. Remove the nozzle (Torx T20) 4.10. Attach and fix the desired nozzle 4.11. Adapt the holder to the nozzle
(30 or 40mm) Consider position width (SW10/Allen key SW5)
4.12. Mount the hand tool (Torx T20) 4.13. Adjustment see page 4 4.14. Adjust the guide roller (SW17)
38-42mm
Space for welding line with
10mm 20mm
20mm 30mm
30mm 40mm
Distance between outer edge nozzle and pressure roller approx..2.0mm
Fasten all screws and nuts!
Keep the parts
Position see 4.10.
To Next Page
