BAK PLANON - Assembly: Guide Handle Installation; Guide Handle Adjustment

BAK Thermoplastic Welding Technology AG
14
ASSEMBLY INSTRUCTIONS FOR ACCESSORY NO. 5:
GUIDE HANDLE
Art.no. 5230077
Guide handle
Allen screw M8x25
Required tools: Allen key SW6
5.0. Adjustment of the rand accessory kit:
5.1. Switch off the device
5.2. Unplug the tool
5.3. Lay the tool down to the side

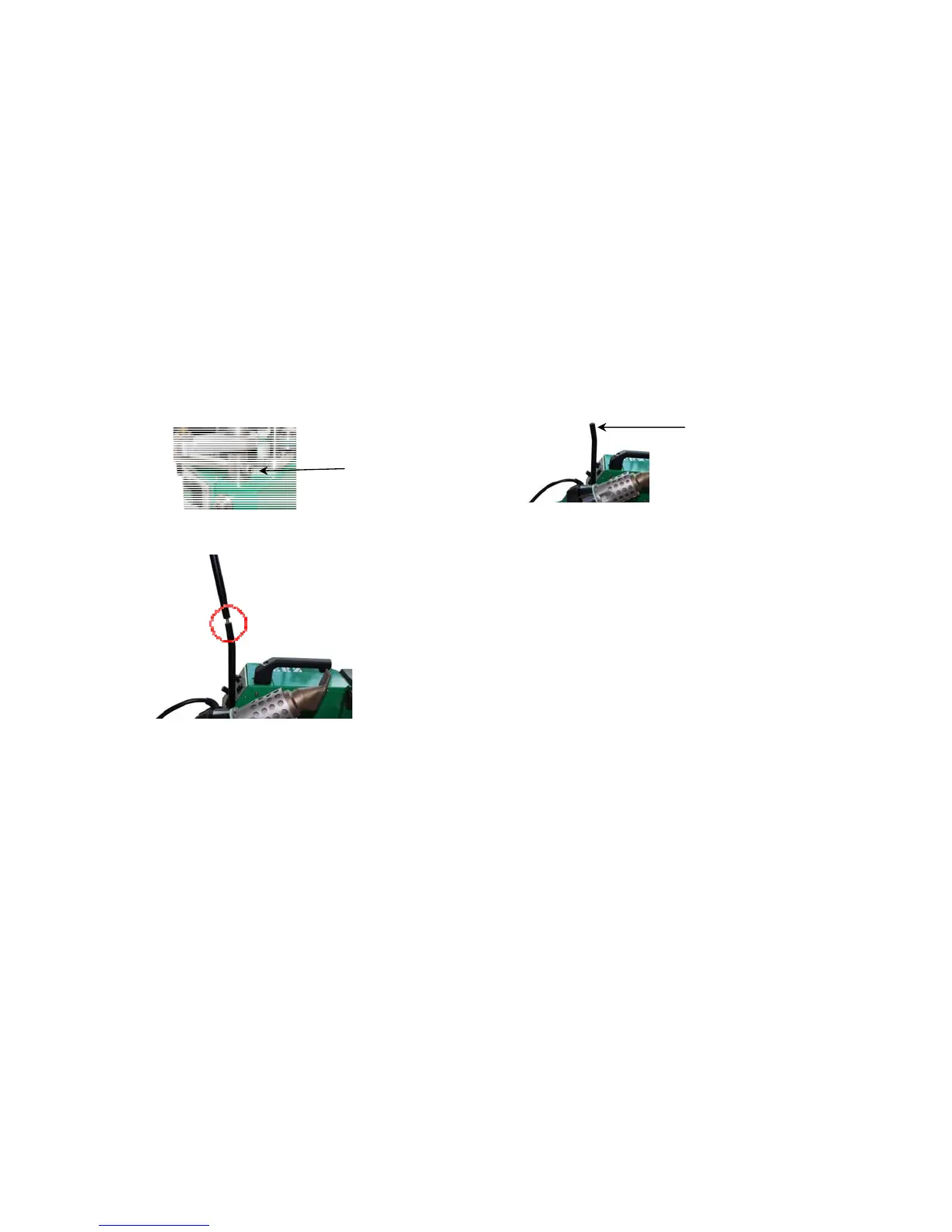

5.4. Mount the guide handle with allen screw M8x25 5.5. Fix the guide handle and fasten the screws
Take notice of the bent direction.
5.6. Screw and fasten the upper part of the guide handle
5.7. Draw the tool up
5.8. Removing the guide handle in opposite order
