Baker BP Dominator 3650E - Page 37

37

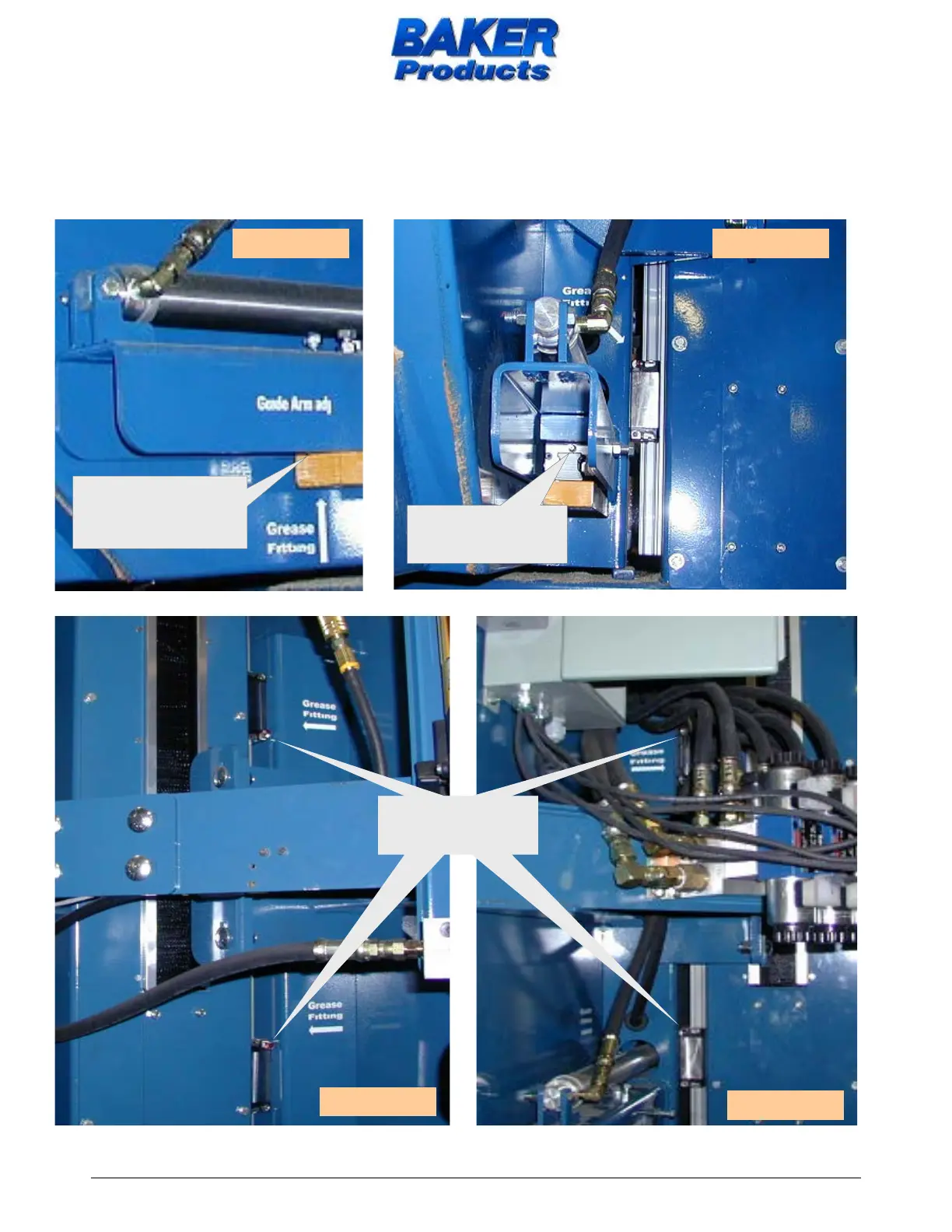

Inspection and Maintenance: (continued)
 WEEKLY or every 40 Hours - Grease the linear bearing on the guide arm and head
raise/lower rails. We recommend JT-6 grease (no more than 1 pump for each).
Figure 33C
Linear rail bearings
(2 per side)
Linear rail bearings
(2 per side)
Figure 33B
Linear rail bearings
(2 per side)
Linear rail bearings
(2 per side)
“End View” of linear
guide arm bearing
Figure 33
Figure 33A
“Side View” linear
bearing inside guide
arm guard
