17
Manufactured under one or more of these patents. U.S. Patents: 5332944, 5361215, 5550753, 5559720, 5,883,459, 6253227, 6282370, 6590188, 6976052, 6965815, 7030343, 7,417,834 b2,
Canadian Patent: 2342614, Australian patent: 2373248 other patents both foreign and domestic applied for and pending. All material copyright of Balboa Water Group.
The wiring diagram in the system show connections for TN and TT electrical services (Line, Neutral, Ground).
IT Power Requirements:
Single Service [3 wires (line, line, ground)]
230VAC, 50Hz, 1þ, 16A/32A, (Circuit Breaker rating = 20A/40A max.)
Protective Earth Wire (Green/Yellow) must be connected to system ground terminal as marked.
All equipment (pumps, blower, and heater) runs on service line L1 with L2 acting as the return - 230VAC.
Set the DIP switches according to the wiring diagram so that total system current draw never exceeds the rated service
input when using a particular setup.
Three Service [4 wires (line, line, line, ground)]
230VAC, 50Hz, 1þ, 16A/32A, (Circuit Breaker rating = 20A/40A max.)
Protective Earth Wire (Green/Yellow) must be connected to system ground terminal as marked.
All equipment (pumps, blower, and heater) runs on service line L1 with L2 acting as the return - 230VAC.
Set the DIP switches according to the wiring diagram so that total system current draw never exceeds the rated service
input when using a particular setup.

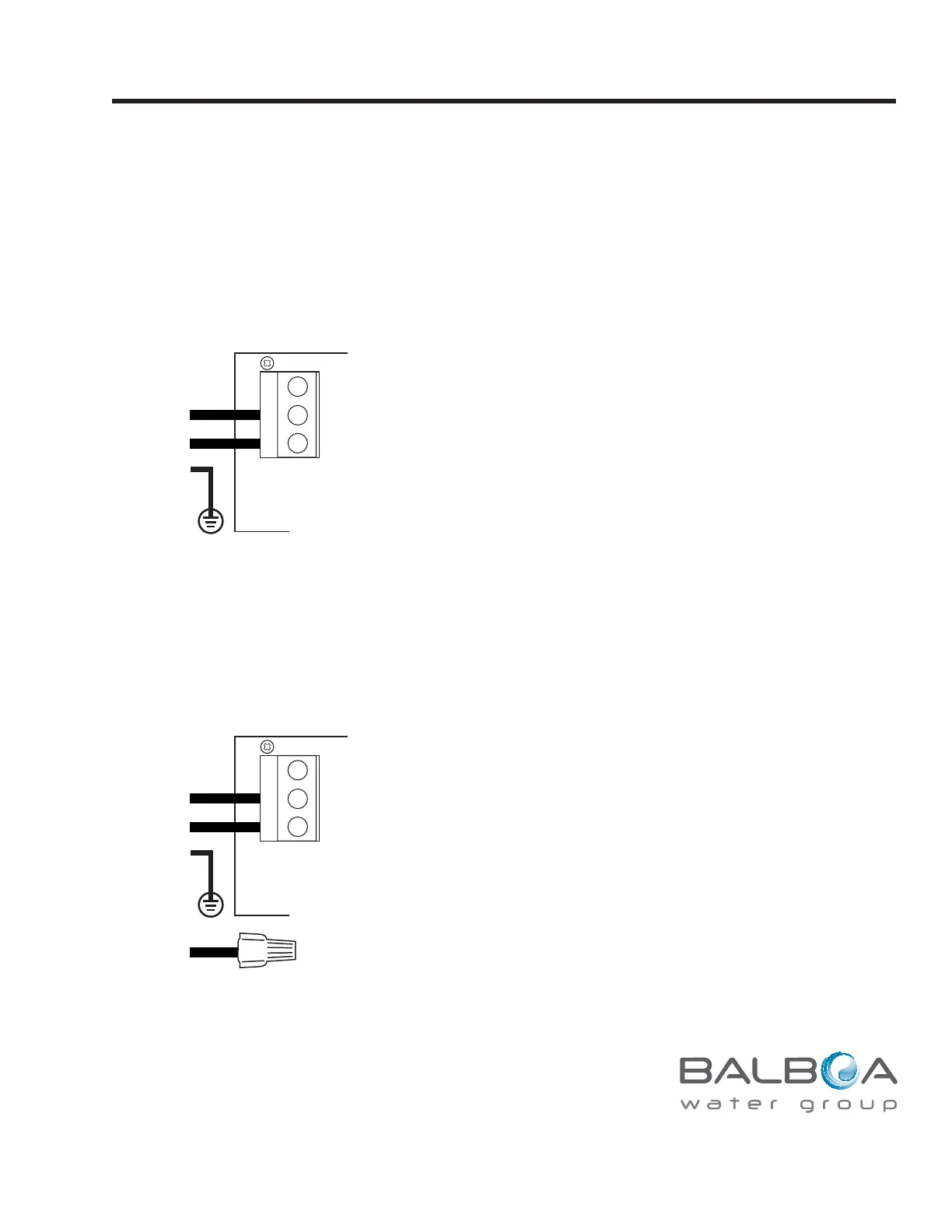

IT Electrical System (No Neutral)
Blue indicates changes from the original Setup 1 default
Refer to Page 3 to choose a suitable Plumbing Kit.
L2
L1
N
GRN
L2
L1
N/A
BRN
BRN
L2
L1
N
GRN
L2
L1
L3
N/A
BRN
BRN
LINE 3 - CAP (INSULATE) END.
DO NOT CONNECT.
BRN
