english
Station Address
For the correct parametering of the bus master as per type, a diskette, containing the unit’s
master data in the form of a GSD file is included with the BIS C-60_2 processor.
The Processor BIS C-60_2 is delivered with the station address 126. This has to be set indi-
vidually before using in a bus system. See information on
12.
An input buffer and an output buffer are used for the data exchange with the control system.
The size of these buffers has to be configured via the master.
The possible settings are entered in the GSD file (and Type file). A minimum of 4 and a maxi-
mum of 128 bytes can be accommodated. However, it must be an even number.
Besides, in the case of the BIS C-60_2 processor, there are 6 further bytes (User-Parameter
Bytes) which have to be set while parametering. The significance of the 6 bytes for para-
metering is described starting from
25.
The preset is stored in the GSD file.
Input/Output Buffer
Unit's Master Data
Parametering Bytes
User-Parameter Bytes
☞
☞
BUS interface PROFIBUS-DP
C60_2-019_818217_0806-e.p65
12
english12

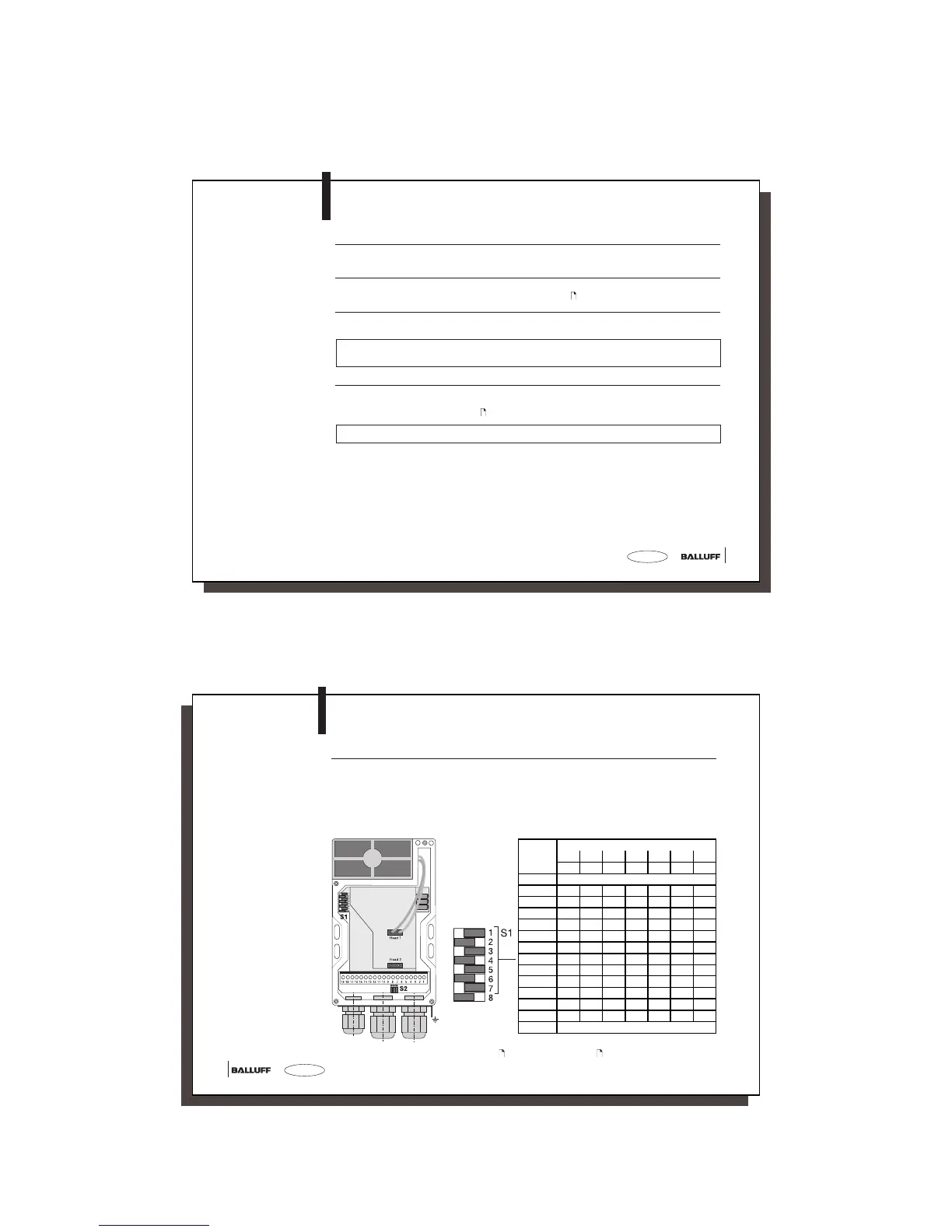

Station Address
setting
The station address under which the unit is accessed on the bus can be assigned through the
slide switch S1. Each address shall be assigned only once.
The slide switch S1 is binary coded. The setting of the station address is carried out according
to the scheme shown in the table. Switch position: no = left, yes = right.
The address 85 is set in the following figure.
➪
no yes
To open the cover of the processor, see 58 for BIS C-6002 or 76 for BIS C-6022.
BUS interface PROFIBUS-DP
Slide switch S1
(with cover removed)
Station
Address
Slide switch S1
7654321
2
6
2
5
2
4
2
3
2
2
2
1
2
0
0not allowed
1 nonononononoyes
2 nononononoyesno
3 nononononoyesyes
4 nonononoyesnono
5 nonononoyesnoyes
...
85 yes no yes no yes no yes
...
123 yes yes yes yes no yes yes
124 yes yes yes yes yes no no
125 yes yes yes yes yes no yes
126 yes yes yes yes yes yes no
127 not allowed
