Balluff BTL BNC Series Assembly Instructions

1 english
BTL BNC_ 00- _ _ _ _ -C12NL_ _0-000S04 / BTL ZNC_ 00- _ _ _ _ -C12NL_ _0-000S04
Magnetostrictive Linear Position Sensor – Rod Style
The CE Mark verifies
that our products meetthe requirements
ofthecurrentEUDirective.
About this guide
This manual provides all necessary information for the
installation and connection of the BTL magnetostrictive
linear position sensor with IO-Link interface.
It applies to the following models:
– BTL BNC_ 00- _ _ _ _ -C12NL_ _0-000S04
– BTL ZNC_ 00- _ _ _ _ -C12NL_ _0-000S04
Other applicable documents
A comprehensive user’s guide and additional information
about this product can be found at www.balluff.com on
the product page.
Intended use
The BTL magnetostrictive linear position sensor, together
with a machine controller (e.g. PLC), comprises a position
measuring system. It is intended to be installed into a
machine or system and used in the industrial sector.
Proper function according to the specifications in the
technical data is only assured when the product is used
solely as described in the user’s guide and the respective
documents as well as in compliance with the technical
specifications and requirements and only with suitable
original Balluff accessories.
Otherwise, there is deemed to be unintended use.
Unintended use is not permitted and will result in the loss
of warranty and liability claims against the manufacturer.
Reasonably foreseeable misuse
The product is not intended for the following applications
and areas and may not be used there:
– In safety-oriented applications in which personal safety
depends on the device function
– In explosive atmospheres
– In food applications
Ø 10.2
25 0.5 Ø 25
34 10.5
60X
41
Ø 45
M12
Thread size:
BTLB…: M18×1.5
BTLZ…: 3/4“-16UNF
Magnet
2)
Measuring length
Null point End point
Mounting surface
Rod end
LED
Type X Rod end
BTL _NCA… 30 −1mm with thread M4/4.5 deep
BTL _NCE… 2" −0.04" with thread M4/4.5 deep
1)
Unusable area
2)
Not included in scope of delivery
1)1)
Safety notes
Activities such as installation, connection and
commissioning may only be carried out by qualified
personnel.
Qualified personnel are persons whose technical
training, knowledge and experience as well as knowledge
of the relevant regulations allow them to assess the work
assigned to them, recognize possible hazards and take
appropriate safety measures.
The operator is responsible for ensuring that local safety
regulations are observed.
In particular, the operator must take steps to ensure that a
defect in the product will not result in hazards to persons
or equipment.
The product must not be opened, modified or changed. In
case of defects and unrepairable malfunctions of the
product, it must be taken out of operation and secured
against unauthorized use.

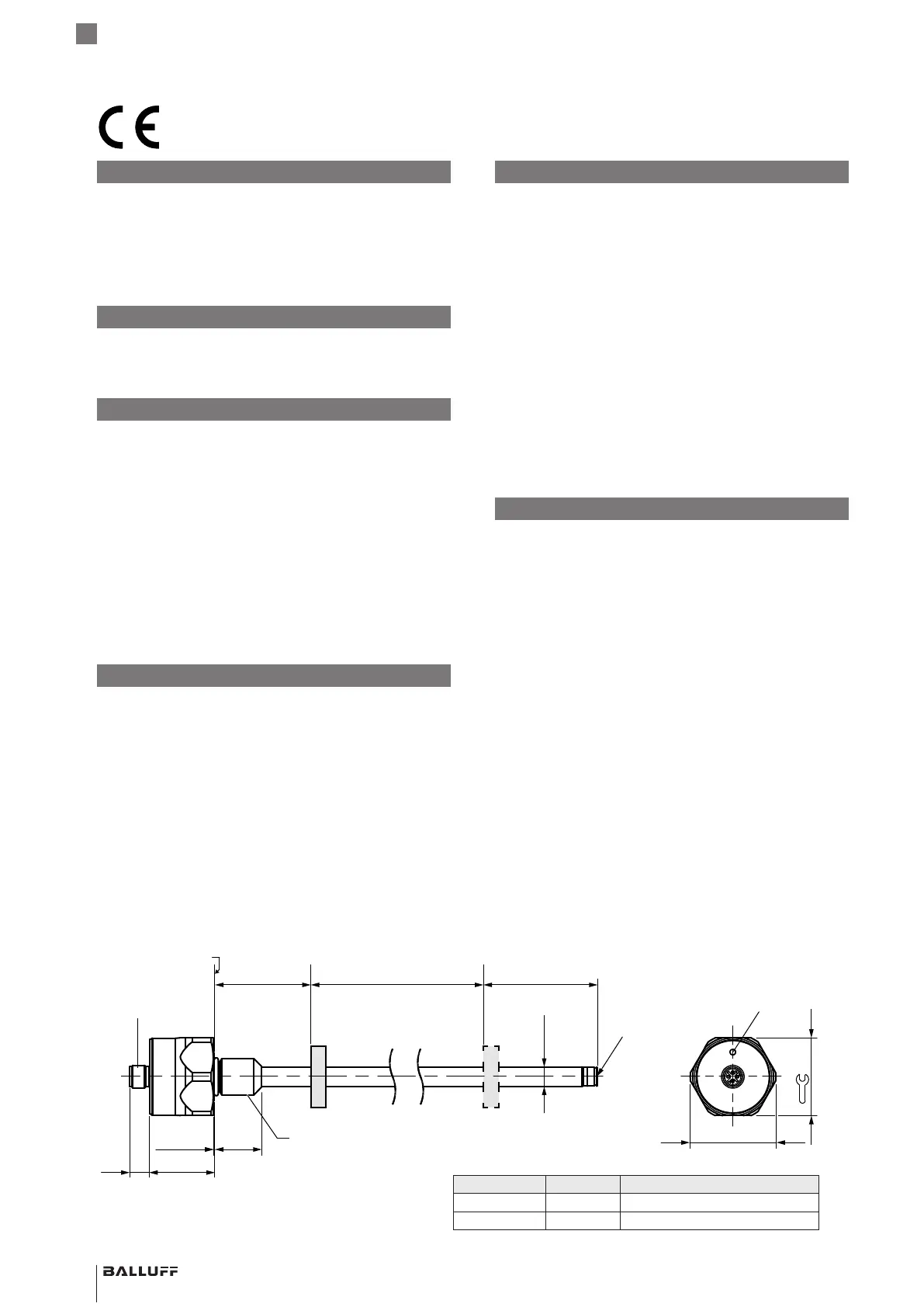

Dimensions and function
To determine the position of a plant component, a magnet
is connected to the component. Together they are moved
along a waveguide located inside the BTL.
Operation is possible with one or two magnets, whereby
the number can be set to one magnet or used flexibly.
