Balluff BTL PF 400 C15A Series User Manual

16 english
7
Configuration with the Balluff Engineering Tool (BET)
7.1 Balluff Engineering Tool (BET)
NOTICE
Interference in function
Configuration with the BET while the system is running
may result in malfunctions.
► Stop the system before performing the configuration.
With the PC software BET the BTL can be quickly and
easily configured on the PC (does not apply to
BTL PF_400-…S35).
The PC software and the relevant configuration
guide can be found online at www.balluff.com
on the product page.

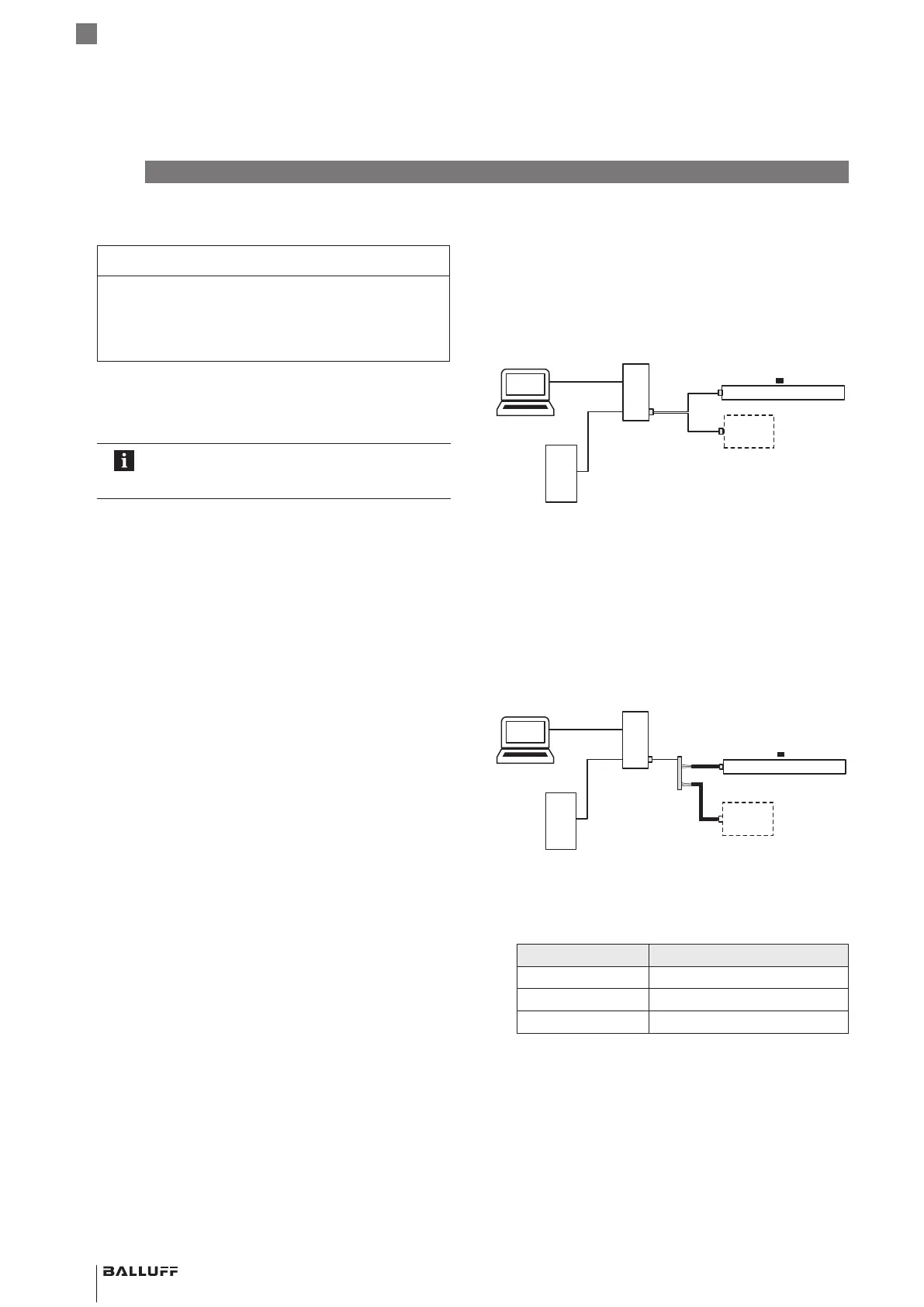

7.2 Connect units
The units must be connected for configuration with the
BET (connector version see Fig. 7-1, cable
version see Fig. 7-2).
BTL connector version
Fig. 7-1:
PC (with BET)
IO-Link master
PLC
(optional)
Power supply
BTL
Connection of units with BTL connector version
► Connect BTL to the master via the adapter cable
(accessory).
► Optional: Also connect outputs to the control (PLC) via
the adapter cable.
► Connect PC (with BET) to the master.
BTL cable version
Fig. 7-2:
PC (with BET)
IO-Link master
PLC
(optional)
Power supply
BTL
Connection of units with BTL cable version
► Connect BTL cable to the master via the adapter cable
(accessory), e.g., using a connecting clamp.
Assignment of wire colors:
BTL cable Adapter cable, master
BN (brown) BN (brown)
BU (blue) BU (blue)
WH (white) BK (black)
► Optional: Connect outputs to the control (PLC) via the
adapter cable.
► Connect PC (with BET) to the master.
BTL PF _ 400- _ _ _ _ -C15A _ _ _ _ - _ _ _ _ _ _
Magnetostrictive Linear Position Sensor – Profile Style
