4.3 Dimensional Clearances
When installing the washer-extractor, it is important to allow adequate clearance on all sides of the
machine. When multiple machines are installed, it is important to allow for the specified minimum
clearances between machines. The following table shows recommended minimum clearances for
the various freestanding models.
Note: The dimensions are approximate and subject to normal manufacturing tolerances. If
exact dimensions are required for construction purposes, request certified drawings from the
factory. We reserve the right to make changes at any time without notice.

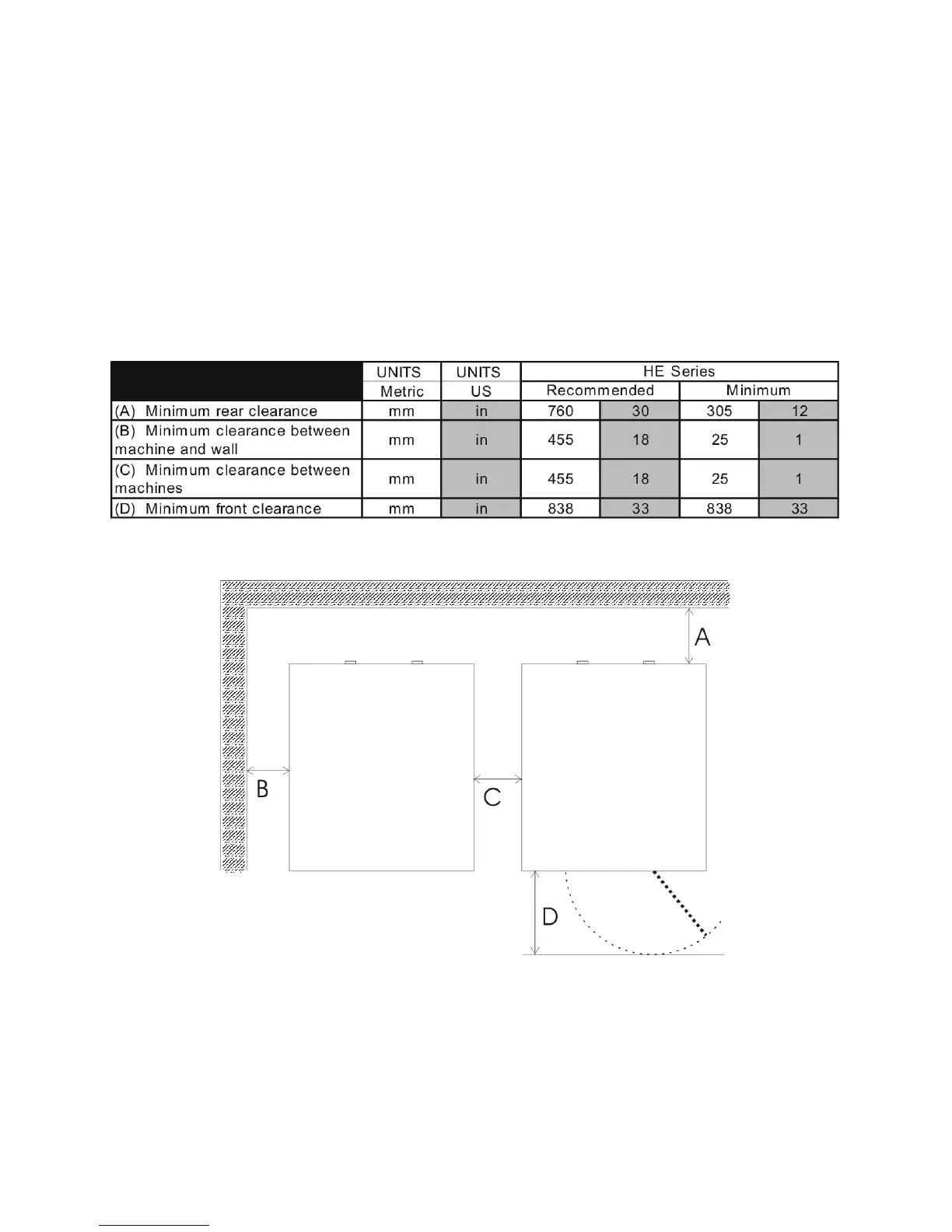

Figure 4.1: Minimum Service Clearances
