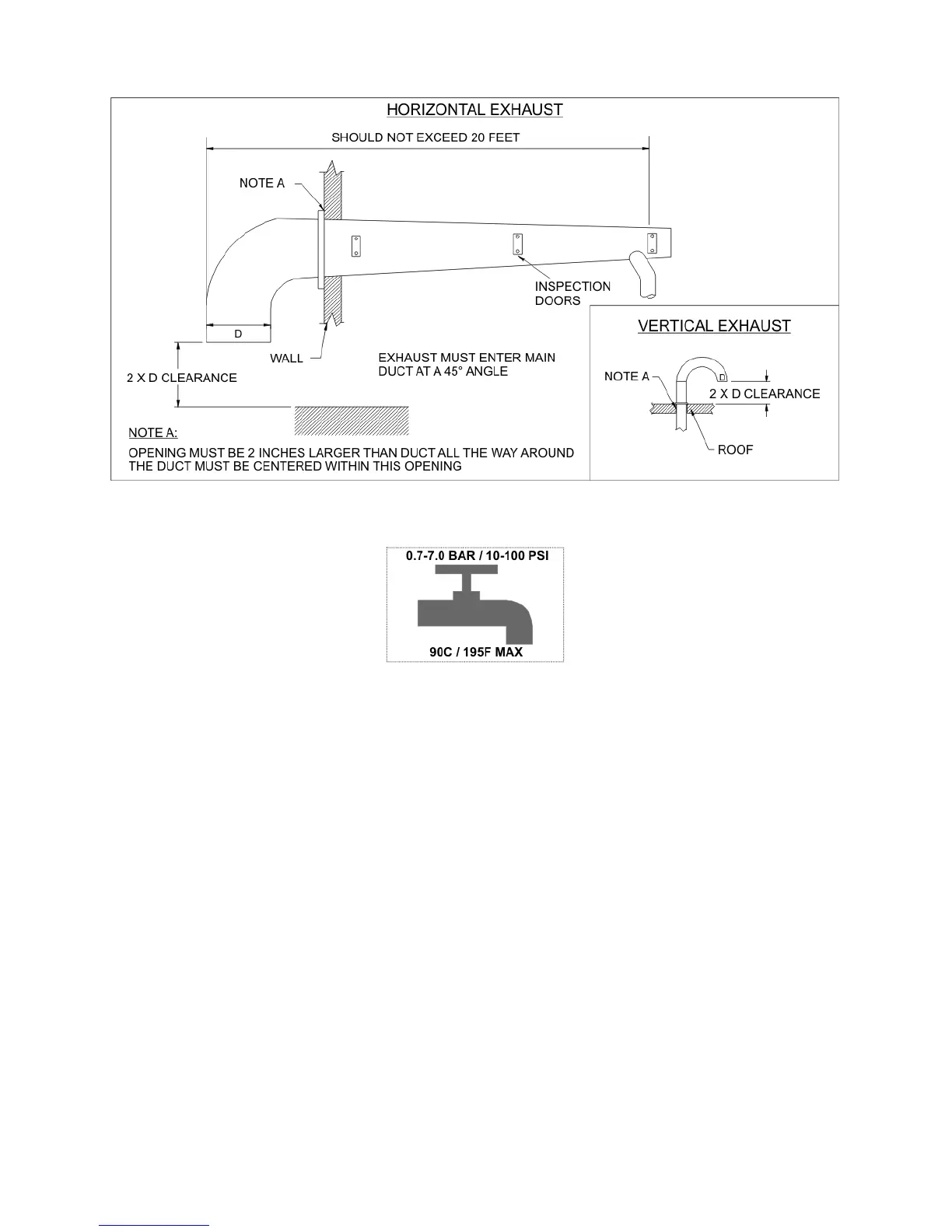

Figure 3.12: DE Series - Exhaust Detail
Figure 3.13: Fire Suppression Water Connection
WARNING: Do not store flammable materials near the dryer.
WARNING: Do not allow lint to accumulate in or around the dryer. Lint is highly flammable.
WARNING: Do not allow the exhaust or fresh air supply to be restricted or interrupted in any
way.
3.8 Enclosure Requirements
It is recommended that the rear of the dryer be positioned no less than 2 feet (24 inches) from
nearest obstruction (i.e., wall) for ease of installation, maintenance, and service. Bulkheads and
partitions should be made from noncombustible materials.
The clearance between the bulkhead header and the dryer must be a minimum of 4 inches and
must not extend more than 4 inches to the rear of the dryer front. The bulkhead facing must not
be closed in all the way to the top of the dryer. A 2 inch clearance is required.
Note: Bulkhead facing should not be installed until after dryer is in place. Ceiling area must be
21
