B&D BDCB-RC - Control Panel Dimensions & Information; Control Components Information

3
12” W x 15” L x 3” D
B&D
SERIAL NUMBER
INFORMATION
PANEL LOCK

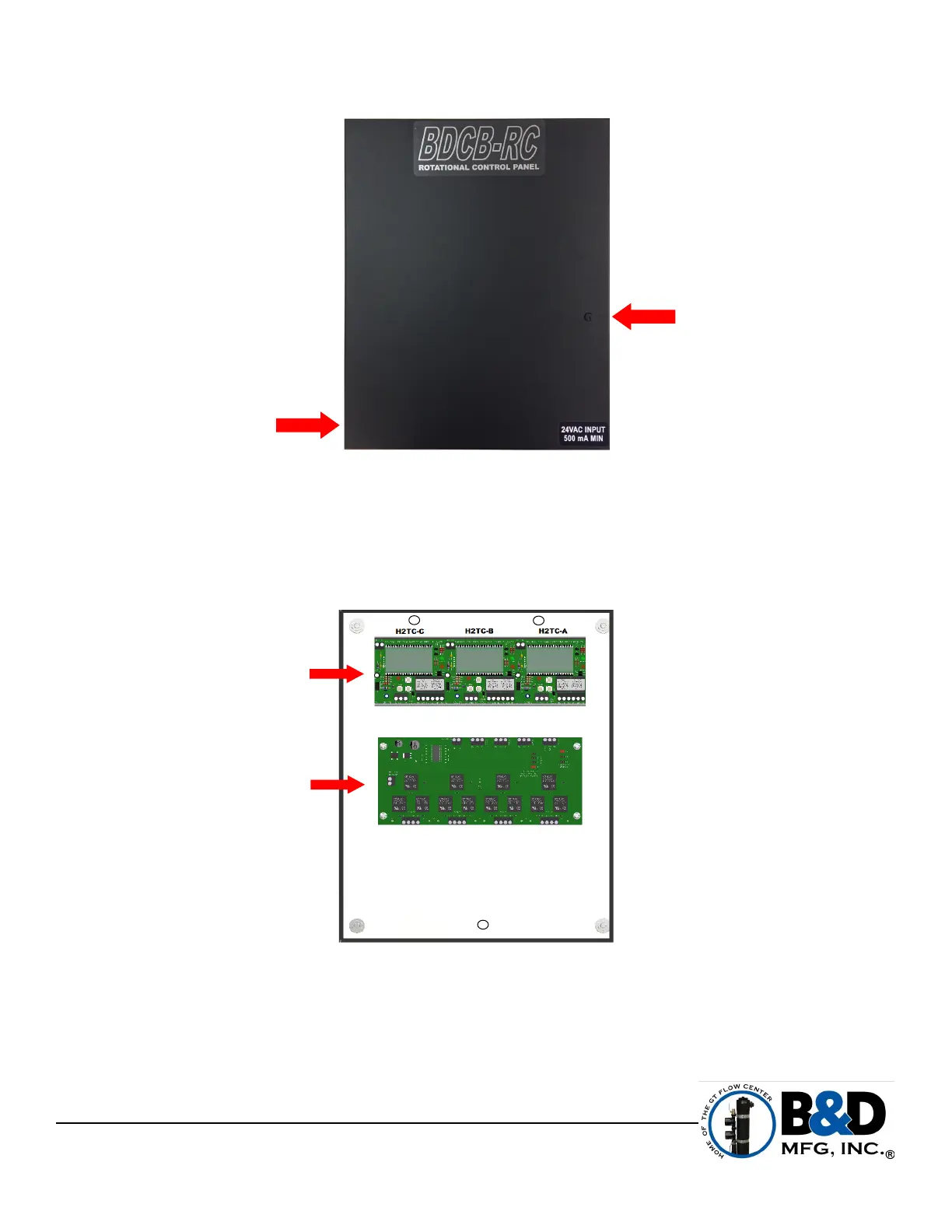

CONTROL PANEL DIMENSIONS
B&D TEMPERATURE CONTROL
(H2-2TC)
B&D ROTATIONAL BOARD
(BDCB-RC)
CONTROL PANEL COMPONENTS INFORMATION
NOTE: All BDCB-RC4HP control panels come prewired with labels and a wiring decal mounted on the inside
of the control panel door.
