IMMERSION WELL INSTALLATION
If your using the Rotational Control (BDCB-RC4HP) with the B&D HSS Buffer Tank Controls, you will need to insert the
thermistor probe that is provided with the Rotational Control Panel into the HSS Buffer Tank immersion well assembly or
attach the Rotational Control Panels immersion well probe to a location in the system to get a temperature reading.
See below for immersion well location on the HSS Buffer Tank.
B&D HSS BUFFER TANK
If you chose to use the same location as the one from the HSS Buffer Tank Control Box, this will give the temperature
boards located in the Rotational Control Panel the same temperature reading as the temperature controller (H2-2TC) in
the HSS Buffer Tank Control Box.

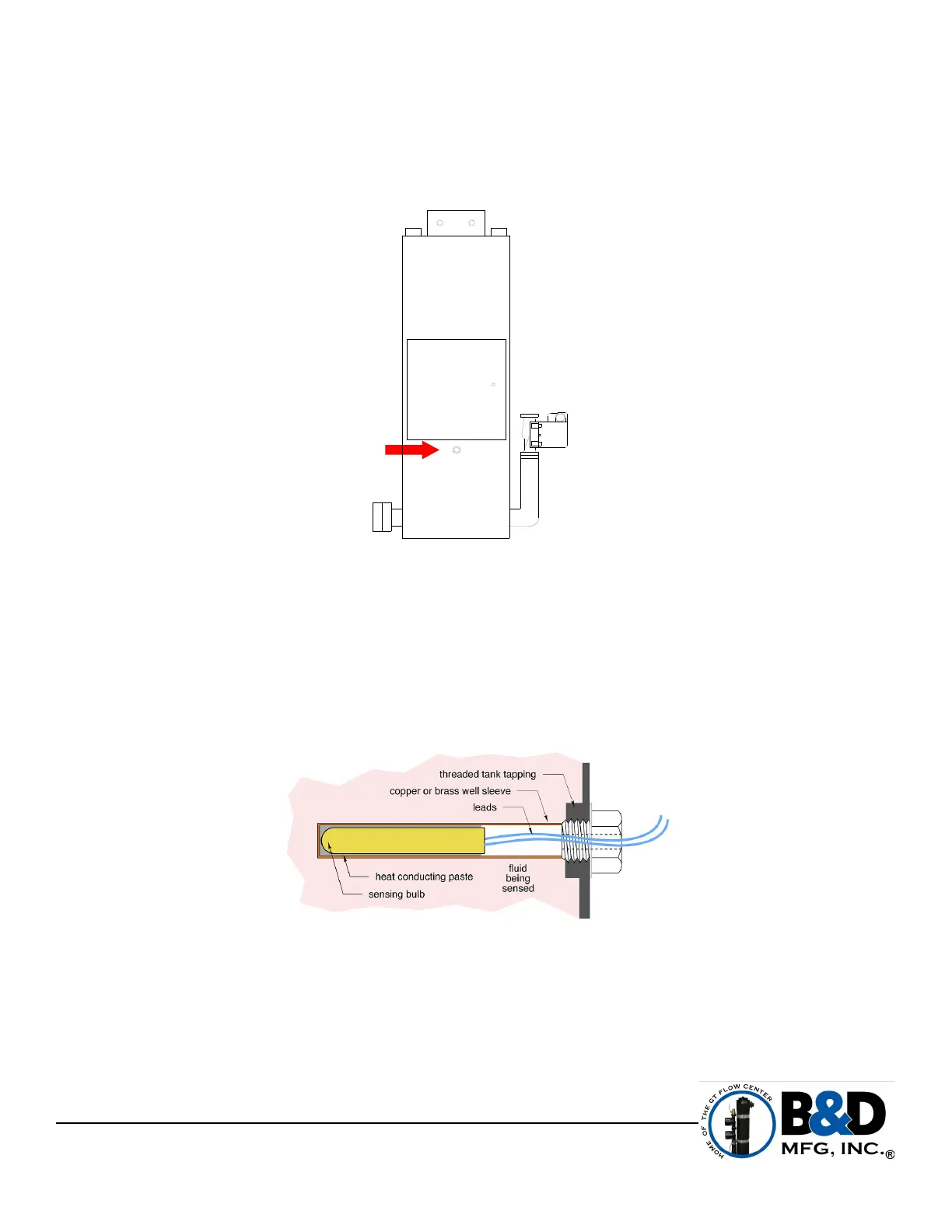

If you chose to use a location other than the HSS Buffer Tank immersion well, it is recommended to use an immersion
well assembly to give the best results for a temperature reading. Please see illustration below to help guide you to a
proper installation to adding the Rotational Control Panel immersion well probe into your designated location.
NOTE: Prior to inserting the sensor, a small amount of thermal paste should be injected into the end of the
well. The sensor body should also get coated with thermal paste as in the figure above.
The objective is to completely fill the gap between the sensor body and inside surface of the well with thermal paste.
Doing so improves conductivity and reduces the time lag between changes in water temperature and when that change
is detected by the sensor.
