Page 4

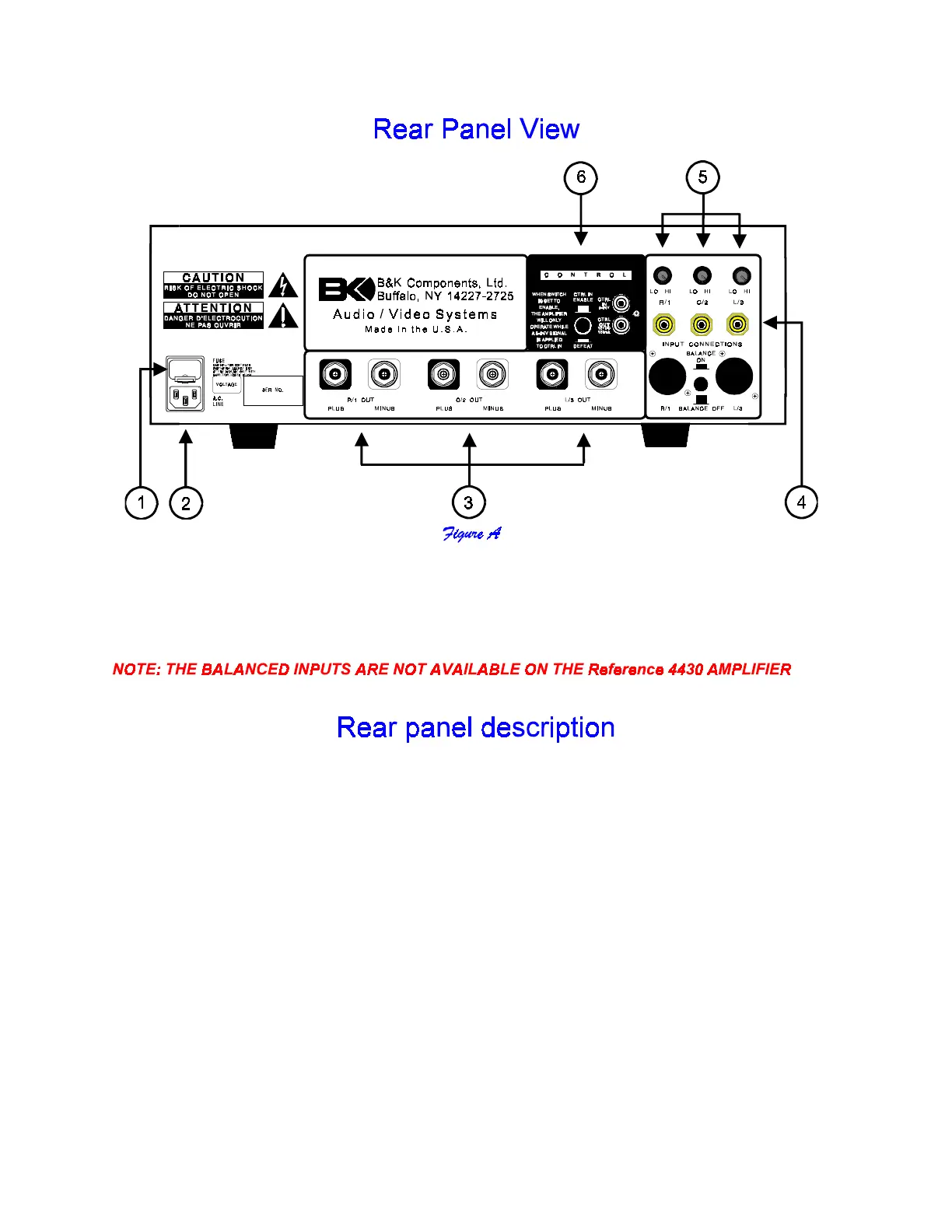

1. AC fuse holder 4. Inputs
2. AC Input receptacle 5. Level controls
3. Speaker outputs 6. Amplifier control muting input/output
1. AC fuse holder - Holds the AC Line fuse. This fuse is an 12 Amp / 250 Volt
Slow Blow fuse. Replace with same type and value fuse
only.
2. AC Input receptacle - For attaching the supplied AC power cord to the
amplifier.
3. Speaker outputs - For connecting the speakers to the amplifier. Explained
further on page 7.
4. Inputs - For connecting signal patch cables (interconnects) from the
preamplifier to the amplifier to pass signal. Explained further
on page 7.
