B&Q CSS1354 - Construction of Drawers; Fitting Draw Runners to Drawers

will be on the outside surface
of the Right Drawer Side.
4

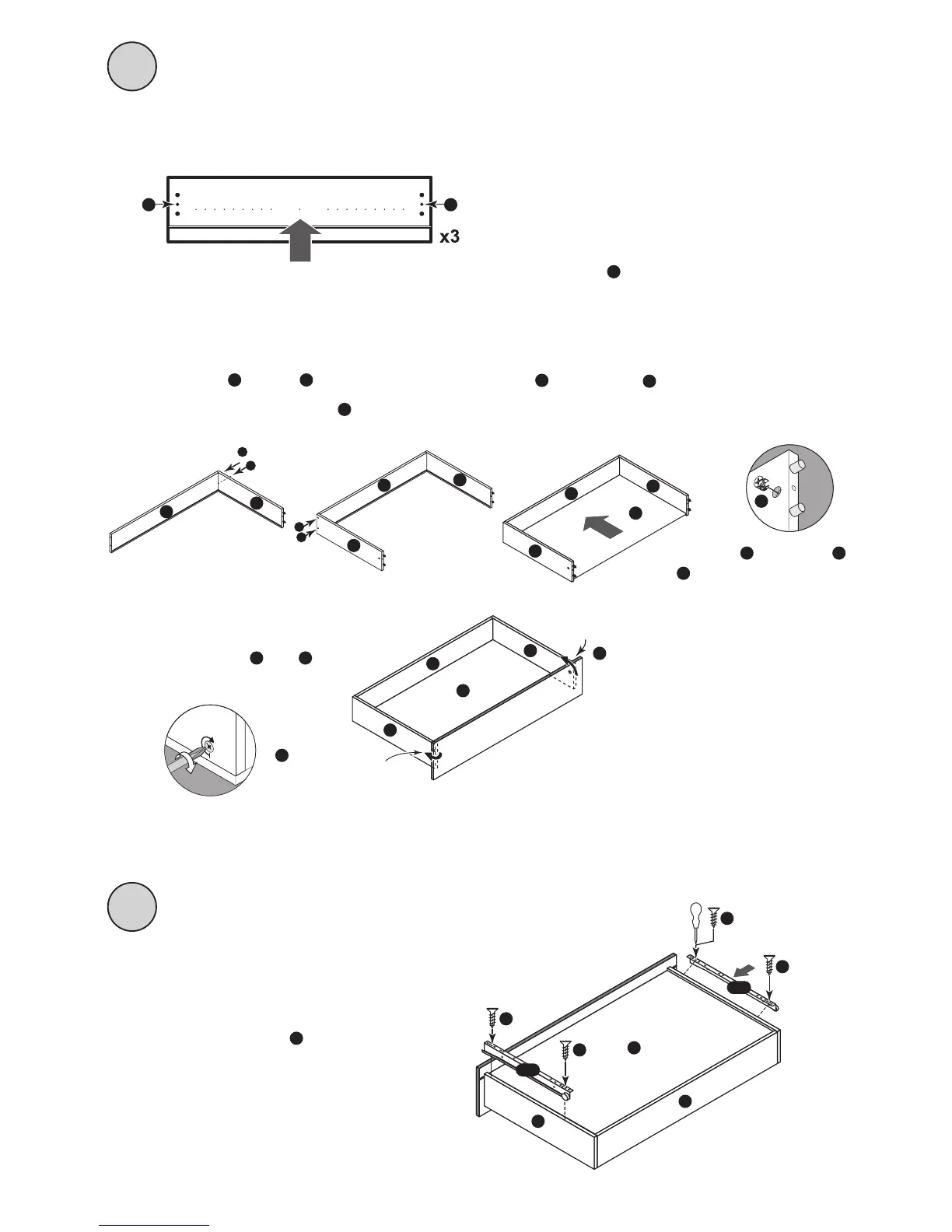

Construction of Drawers
Before fitting the Cam Legs to your Drawer Fronts you will have to drill the holes required for the Handles
you have purchased separately. Drill through the appropriate pilot hole(s) for the Handles you have
purchased.
We do not recommend the use of Power Screwdrivers as they can too easily drive the Screws at an angle
causing them to breakout of the panel, and it is too easy to over tighten the Screws and strip the threads
formed in the chipboard.
PILOT HOLES.
HANDLE FIXING INSTRUCTIONS IMPORTANT NOTE:
From the REAR FACE of the Drawers drill through the
holes using a 2.5mm diameter drill. From the FRONT
FACE of the Drawers, open out the 2.5mm diameter
holes using a 5mm drill. Screw Handles to Drawer Fronts.
Screw the Cam Legs into the holes shown.
X
GG
G
X
X
X
2
3
5
4
3
4
2
3
4
Fit the LH , and RH , drawer sides to the drawer back , using screws as shown.
Now slide the drawer base into place as shown.
2 3
4
X
5
will be on the
outside surface of
the Left Drawer Side.
O
O
Then fit cams into panels
and , as shown, ensuring
that the arrow is pointing
towards the drawer front.
O
Repeat for other 2 Drawers.
5
Fitting of Draw Runners to Drawers
4
3
2
5
Position each runner onto drawer bottom, as
shown, flush to the back of the drawer front.
Then use a bradawl to mark the two holes as
indicated.
Secure with screws , as shown.
Now repeat for the other two drawers.
C
C
C
C
C
4
5
3
2
3
O
Now fit the drawer front onto
drawer sides and , and
tighten cams clockwise.
2 3
AF
AH
