Features of BW10-310A VCSEL driver
• Anode grounded VCSEL driver up to 30mA for BW10 VCSEL. Supports 1060 nm, 1550 nm and
1654 nm family
• Integrated TEC controller for BW10 VCSEL
• Integrated swept voltage generation for BW10 VCSEL. Supports up to +40V for 1060 nm VCSEL
family and up to -20V for 1550 nm and 1654 nm products.
• Designed to be used with BW10-420C fixture.
• Swept voltage source supports:
o sinusoidal shape (50 Hz to 120 KHz)
o triangular shape (50 Hz to 100 KHz)
o square root shape (50 Hz to 75 KHz)
• 60Msamples 8bit arbitrary waveform generator for up to 120KHz sweep signals.
• Integrated pin protection
• Single 5V power supply (included)
Shipping list
• Transport case
• BW10-310A driver box
• BW10-420C test fixture
• 5V / 4A wall mount power supply with interchangeable AC blades for global use. Barrel plug with
positive center, 5.5mm outer diameter, 2.5mm inner diameter, 9.5mm length. (CUI Inc. / SMI24-5-V-
P6)
• 1 pc. 1.5m USB 2.0 cable (USB A to USB B)
• 2 pcs. 1.5m BNC cables
• 1 pc. 1.5m D-Sub 15 cable (Amphenol CS-DSDMDB15MF-005)
• Optional for SOA connection (not included in standard package): 2 pcs. 1.5m D-Sub 9 cable
(Phoenix Contact 2300009)
Driver box connections

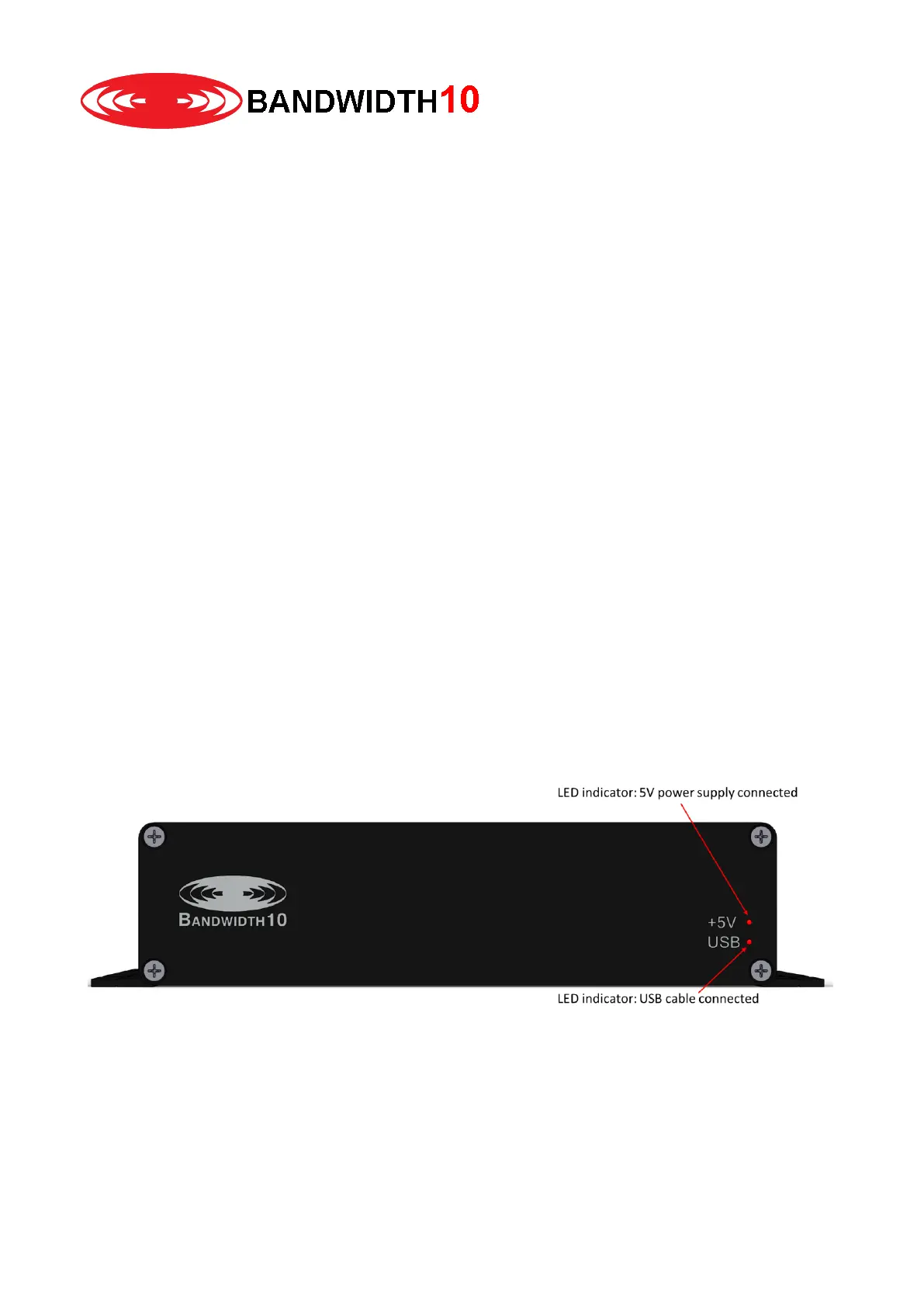

Frontside:
