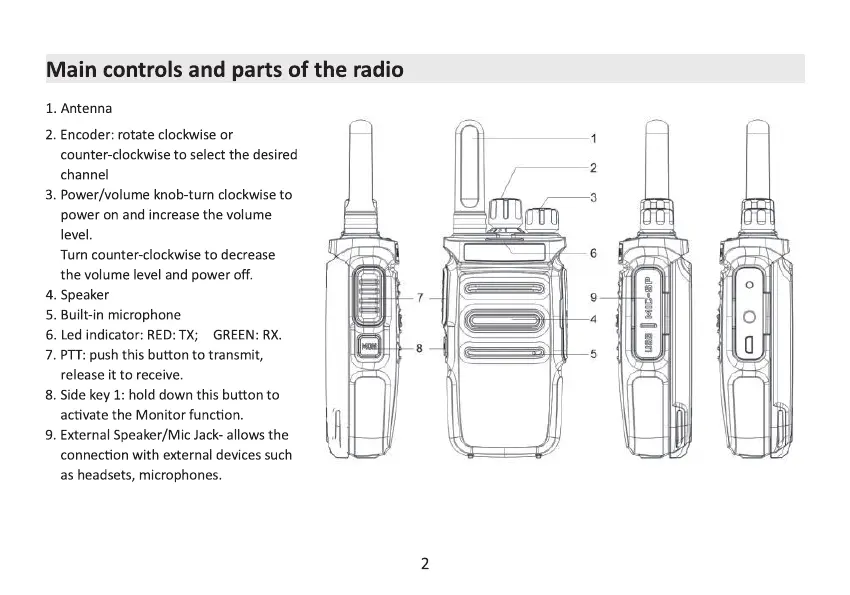

Main controls and parts of the radio
1. Antenna
2. Encoder: rotate clockwise or
counter-clockwise to select the desired
channel
Power/volume knob-turn clockwise to
3.
power on and increase the volume
level.
Turn counter-clockwise to decrease
the volume level and power off.
4. Speaker
5. Built-in microphone
6. Led indicator: RED:TX; GREEN: RX.
7. PTT: push this button to transmit,
release it to receive.
8. Side key 1: hold down this button to
activate the Monitor function.
9. External Speaker/Mic Jack- allows the
connection with external devices such
as headsets, microphones.
2
3
iii'il
6
9
4
5
i'i•il
o
7
8
2
