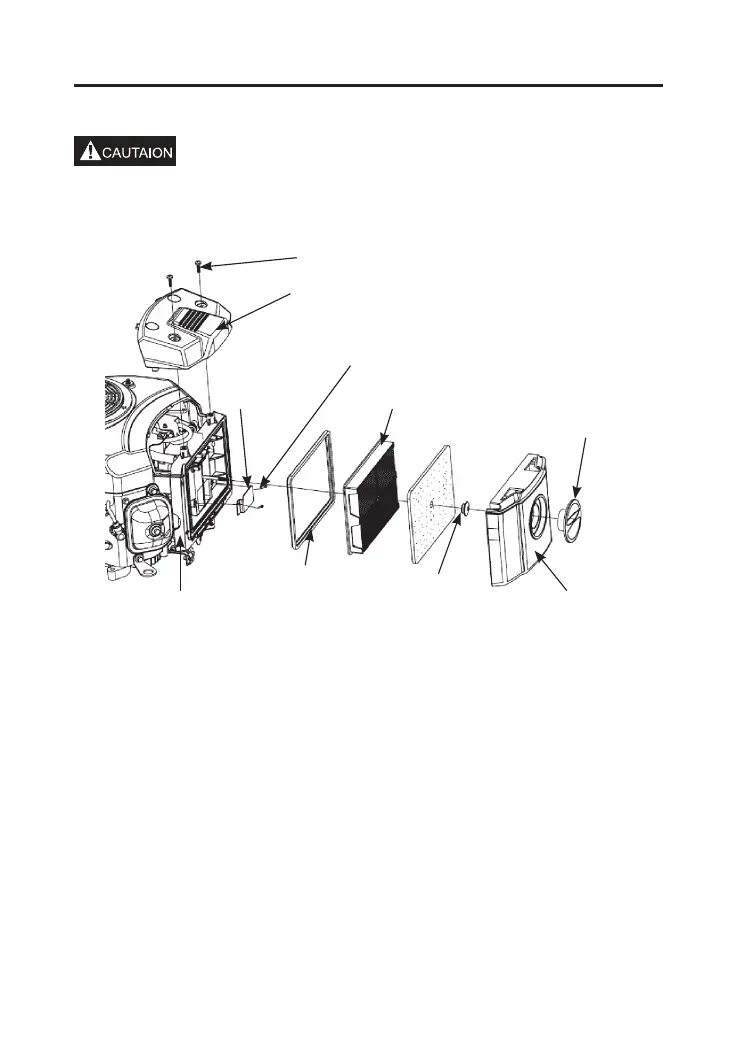

2. air Cleaner

Never run the engine without an air cleaner, or severe wear

of the engine may be resulted in.

①

Remove the fan cover decorating plate

②

Remove the air cleaner housing.

③

Remove foam element or paper element, paying attention to prevent

dust and foreign matter entering into air cleaner.

④

Check, clean or replace damaged air cleaner parts.

⑤

Check, clean or replace damaged air cleaner parts.

LOCKING LEVER ASSY.

DECORATIVE BOARD

ELEMENT ASSY.

LOCKING NUT ASSY.

AIR CLEANER SEAT

GASKET

CLASPER

AIR CLEANER CASE

HEX. FLANGE BOLT –

SMALL SER. M6×35(2PCS)

INTAKE TUBE

COVER
