B. PARTS LIST

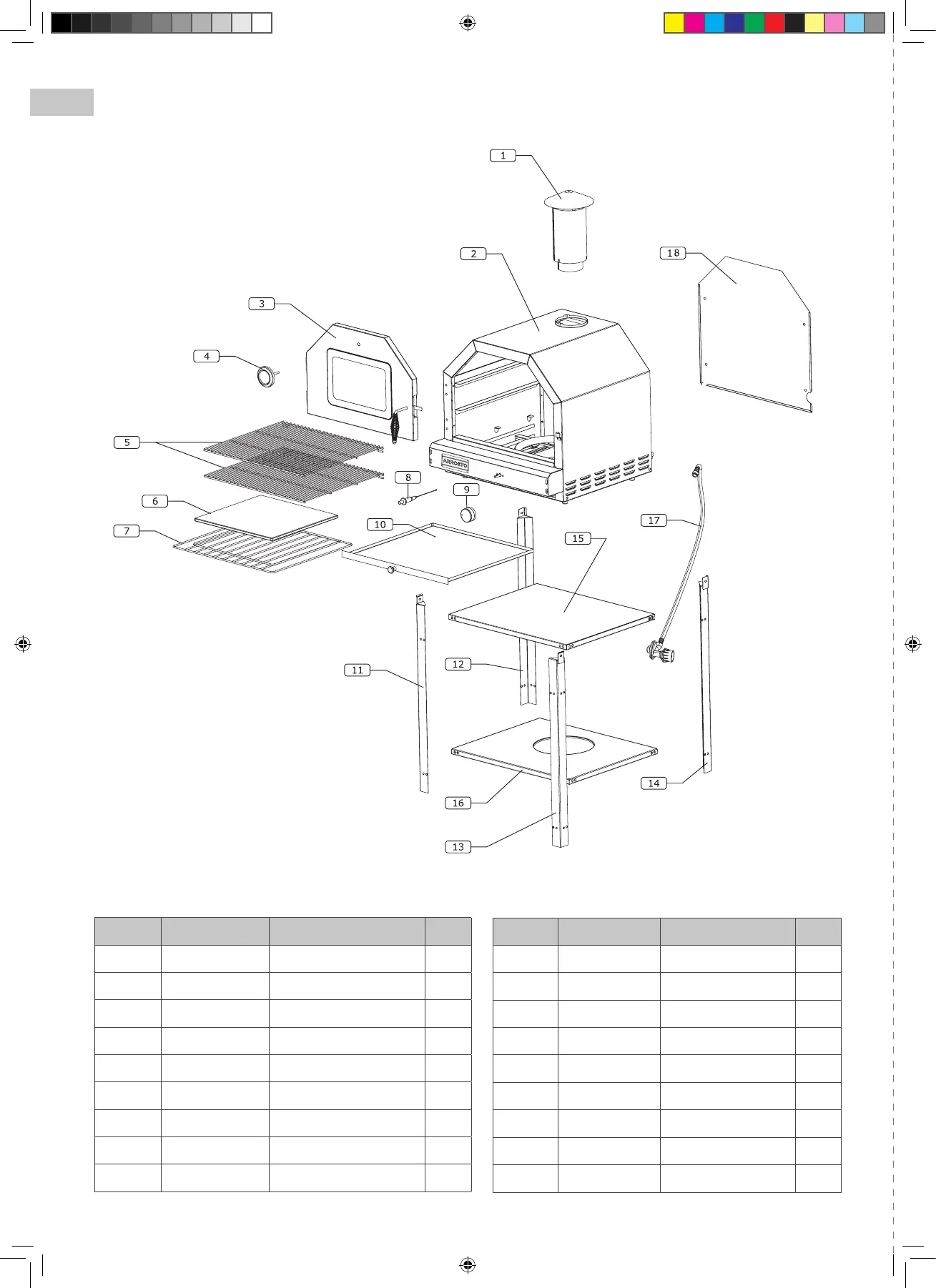

Line drawings are not to scale. Specications are subject to change without notice.
PIC NO ITEM CODE DESCRIPTION QTY
1 HKGP01 Chimney 1
2 HKGP02 Oven body 1
3 HKGP03 Door 1
4 HKGP04 Temperature guage 1
5 HKGP05 Roast racks 2
6 HKGP06 Pizza stone 1
7 HKGP07 Wire support grid 1
8 HKGP08 Igniter 1
9 HKGP09 Control knob 1
PIC NO ITEM CODE DESCRIPTION QTY
10 HKGP10 Drip tray 1
11 HKGP11a Leg (front left) 1
12 HKGP11b Leg (back left) 1
13 HKGP11c Leg (front right) 1
14 HKGP11d Leg (back right) 1
15 HKGP12 Storage shelf 1
16 HKGP13 Gas bottle shelf 1
17 HKGP14 Hose & regulator 1
18 HKGP15 Heat shield 1
