Page 14
Assembly instructions (continued)
(b) If the two adjacent modules are both barbeques, then bolt the
adjacent fireboxes together
WHAT YOU NEED TO JOIN THE BBQ FIREBOXES:
2 x M6 Hex Nuts
2 x Washers φ 6.4 /14.5mm
2 x M6*60mm screws

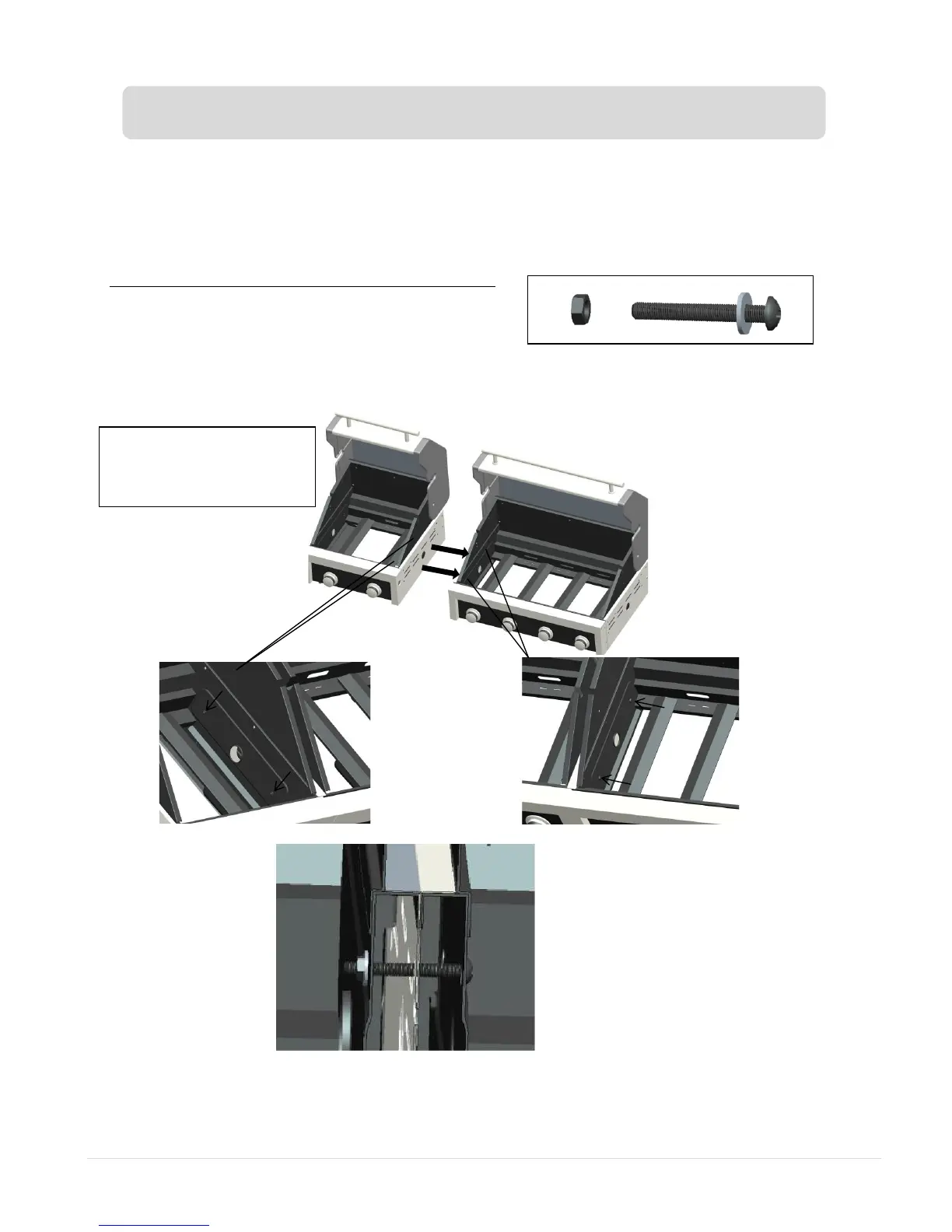

Join the 4B and 2B firebox using two M6*60mm screws, washers and hex nuts as shown.
(Note that the fibre washer goes immediately against the firebox inside the bbq)
