Page 19
Assembly instructions (continued)
STEP 11 CART MODELS ONLY: Connect the side burner corrugated
gas pipe
The side burner corrugated gas pipe will already be connected to the side burner. You will need
to connect the other end to the bbq.

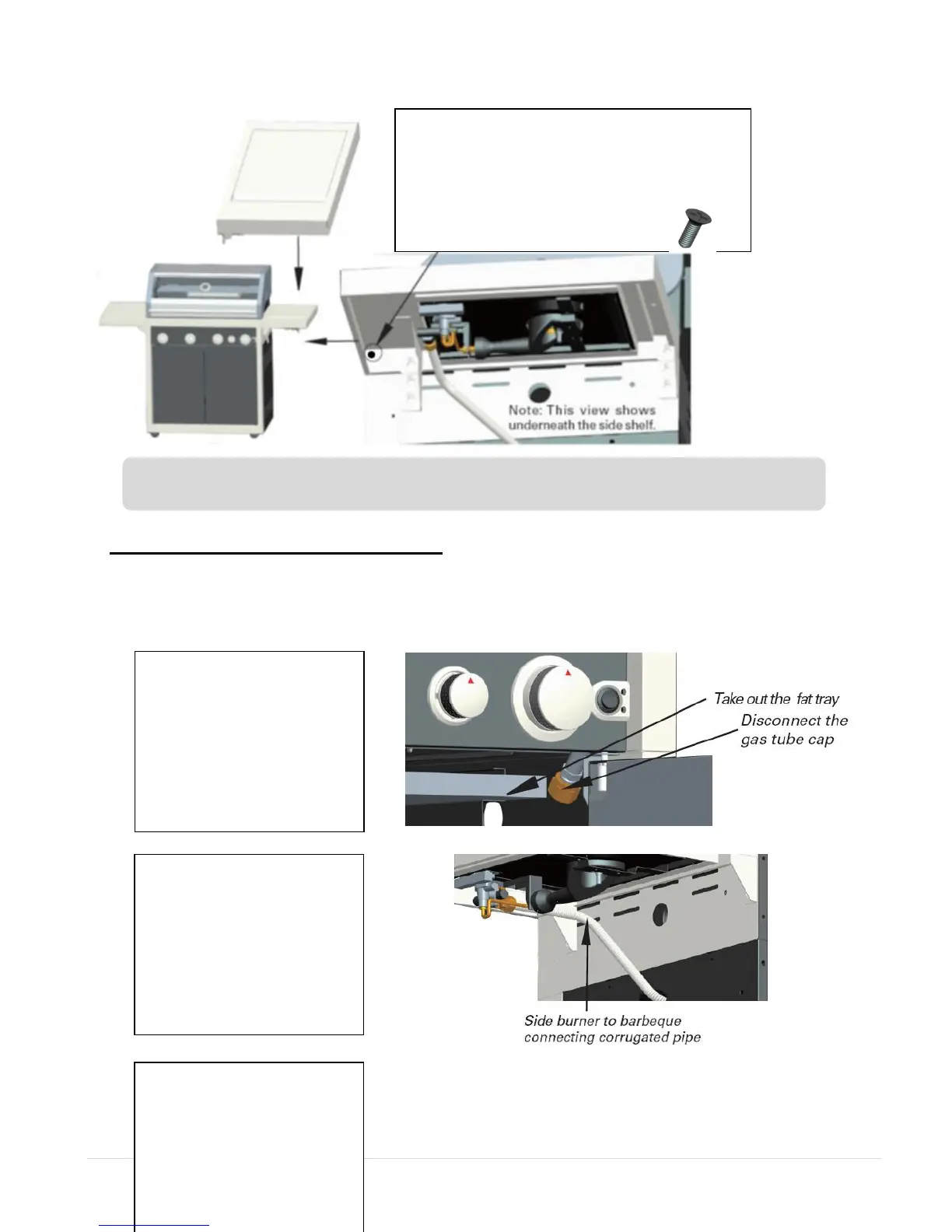

Use 1 piece M6*15mm short screw which
was removed from the bbq previously and
thread it through the side shelf and back
into the bbq control panel front corner hole
as shown. Tighten all screws.
(a) Remove the grease
channelling tray and use two
spanners to disconnect the
cap from the manifold outlet,
(one spanner to hold the
manifold, the other to loosen
the cap).
(b) Thread the
corrugated gas pipe from
the side burner through
the bbq as shown. You
will need to gently bend
the pipe a little to help
guide it into place.
(c) Connect the
corrugated gas pipe to the
manifold using two
spanners (one spanner to
hold the manifold, the
other to tighten the fitting).
Tighten firmly.
