Page 21

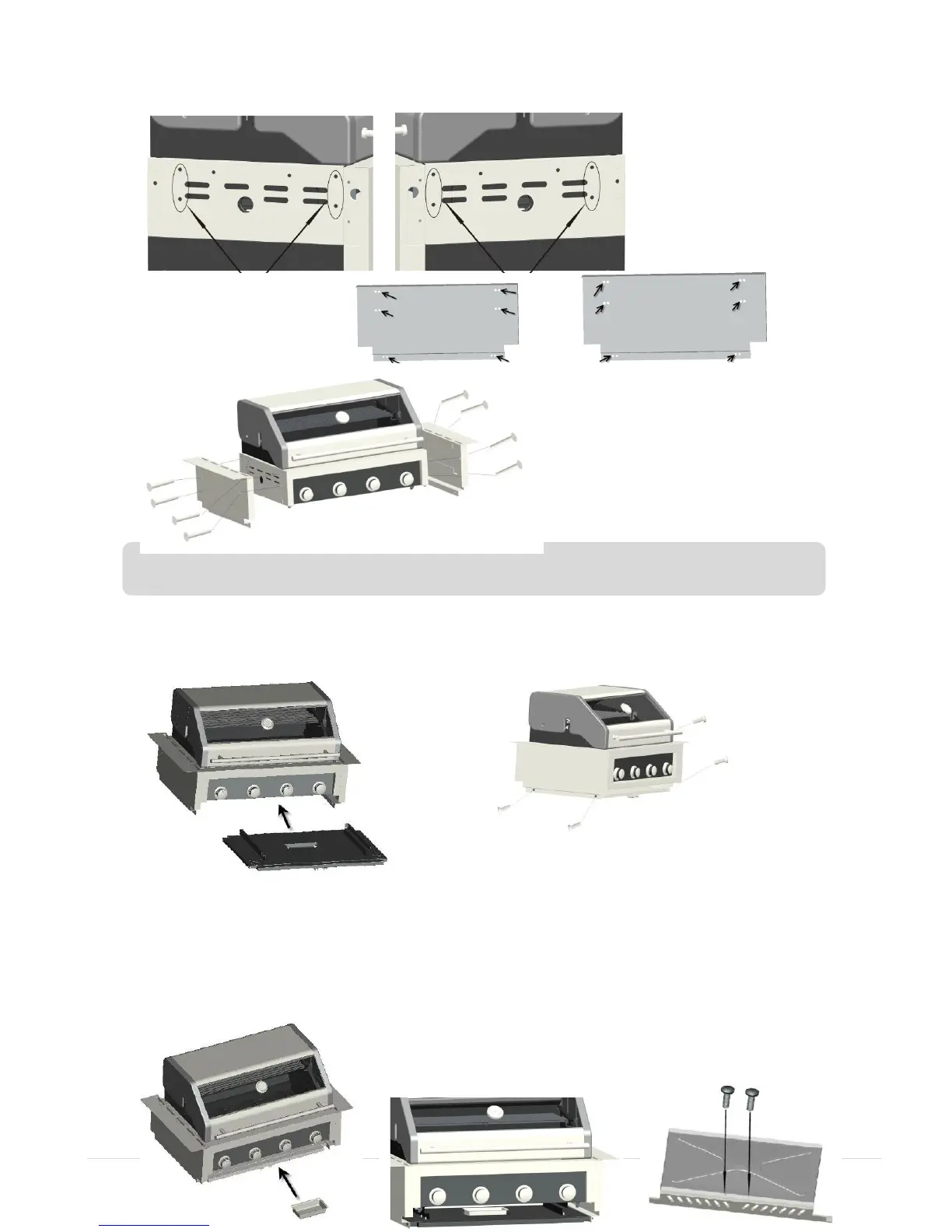

(c) Attach the build-in brackets
Assembly instructions (continued)
(d) Attach the separator panel, taking care to thread the bbq hose and regulator (and for the
deluxe model only, the electric cabling) through the access hole in the separator panel.
(e) Fit the grease channelling tray front dress piece / handle as shown below. The 4 burner has a
grease cup that fits later into the separator panel and is accessed with the grease channelling
tray removed.
(f) The grease channelling tray fits underneath the
barbeque by sliding into the brackets on the separator panel.
