6I21Y06P-1
QUICK CONNECTOR ASSEMBLY
STEP 2:

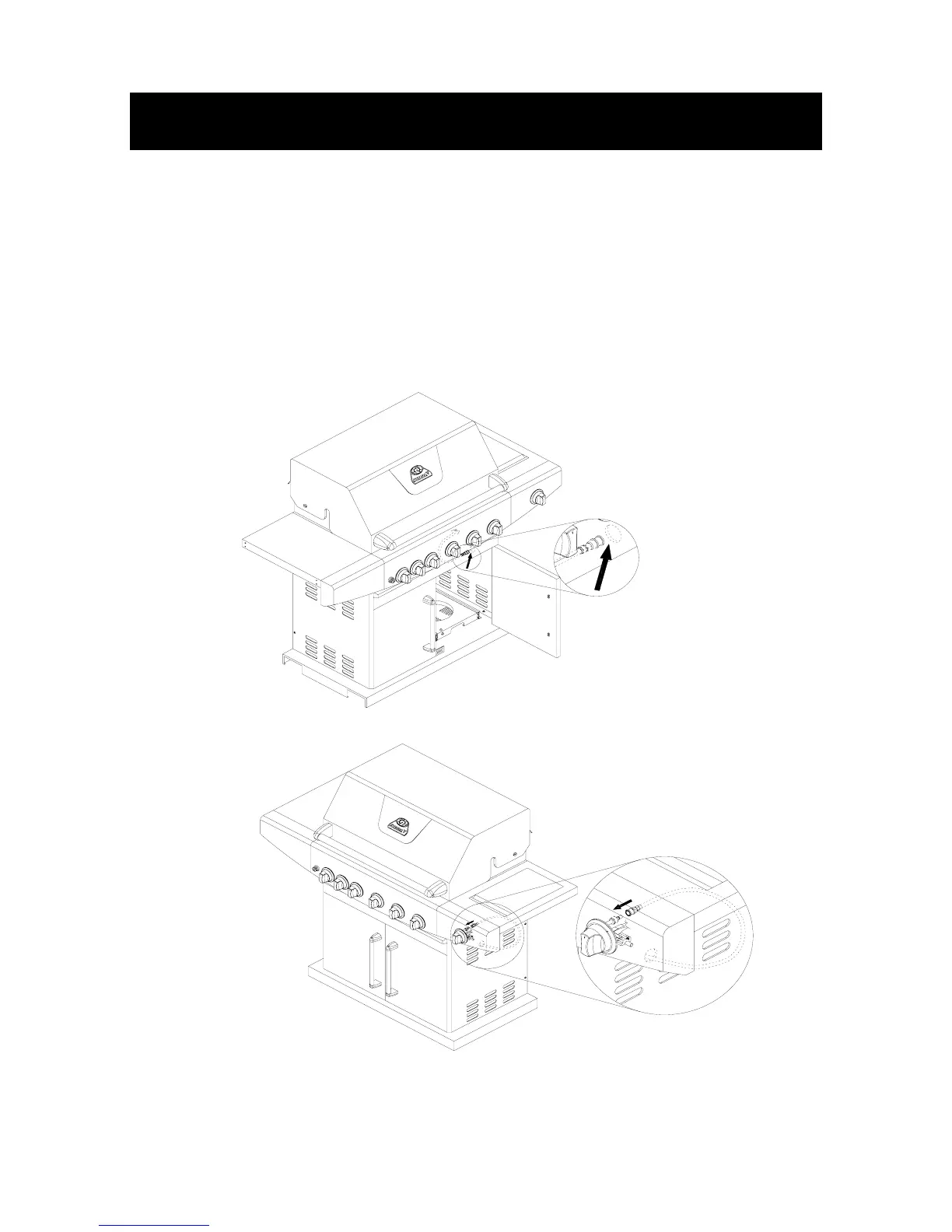

¾ Push the Quick Disconnect fitting mounted on the manifold through the
access hole in the Right cart panel (See figure below).
¾ Connect the Quick Disconnect fitting to the side burner fitting – it is
necessary to push the Slide Collar while inserting the Quick Disconnect to
the side burner fitting and then release the Slide Collar.
¾ Pull firmly out on the quick disconnect to make sure that it is securely
locked into the side burner fitting.
