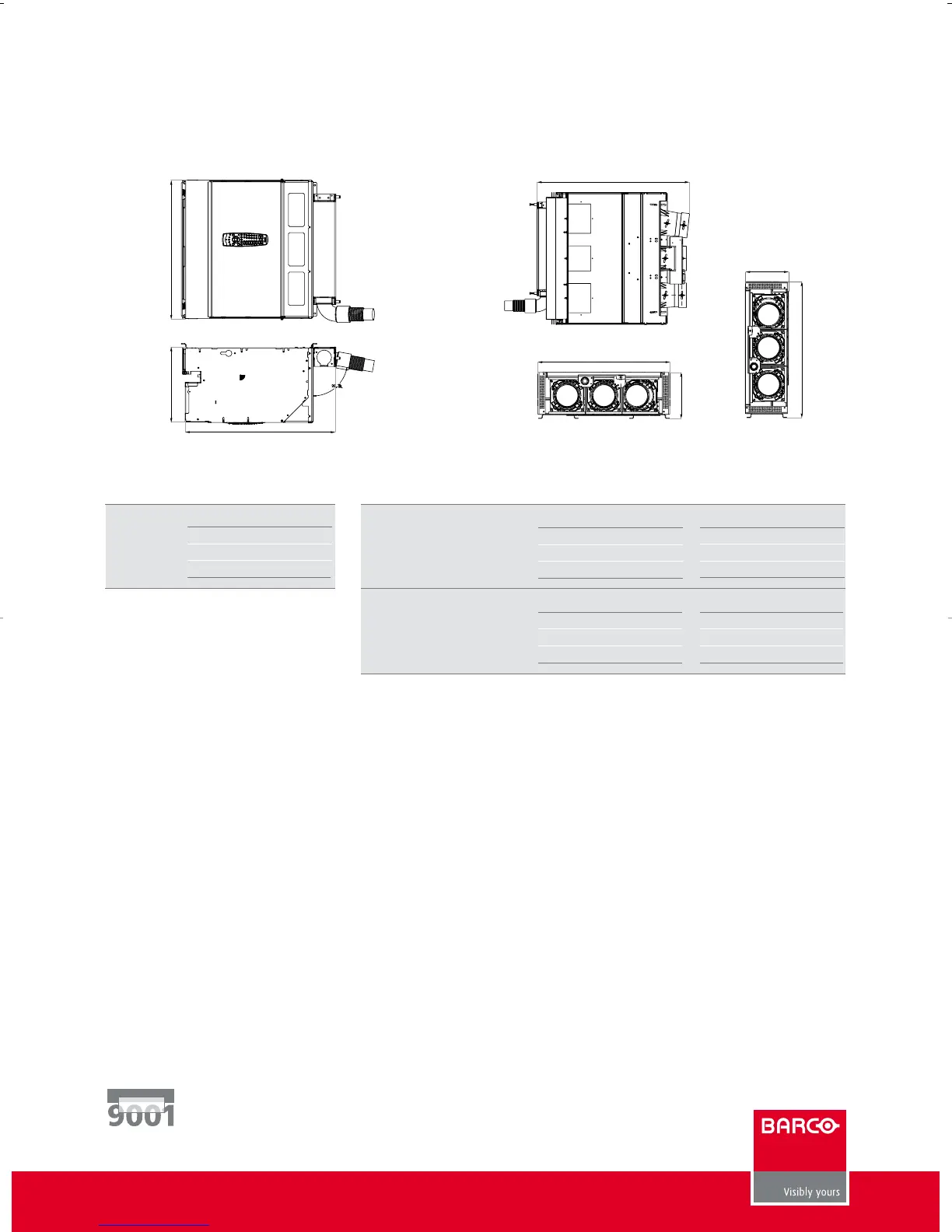

Dimensions electronics
909 chassis
Order information
• BARCO 908 SPLIT PACK R9040080
• B
ARCO
909 SPLIT PACK R9040040
Dimensions optics Horizontal in line* Vertical in line*
Barco 908 S
PLIT PACK Series
Barco 909 S
PLIT PACK Series
*different dimensions of the optic head take into account the vertical or horizontal positioning of the
fixation plates
mm inch
width 200 7.9
Height 650 25.5
depth 714 28.1
mm inch
width 630 24.8
Height 220 8.7
depth 714 28.1
mm inch
width 650 25.6
Height 259 10.2
depth 793 31.2
mm inch
width 259 10.2
Height 670 26.4
depth 793 31.2
W
H
Vertical in line
W
H
Horizontal in line
mm inch
width 562 22.1
Height 305 12.0
depth 627 24.7
