Barco ClickShare Quick Start Guide

- 3 -

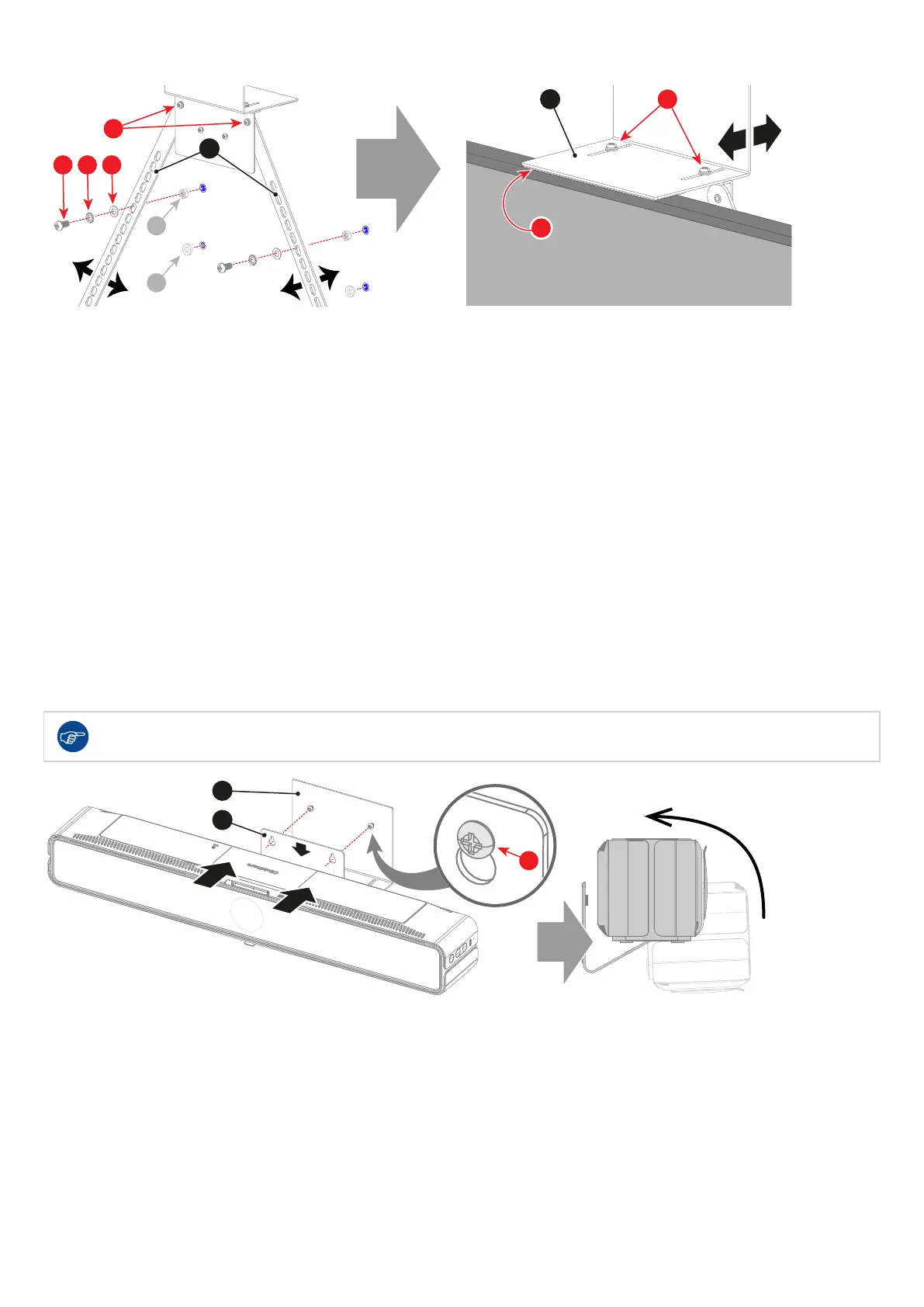

Attaching the TV mount to the display
5 6 7
8
9
2
2
10
G
H
The following procedure describes “above display mounting”. The same general steps must be followed for
“below display mounting”.
1. Position the TV mount over the threaded inserts of the display. Rotate the braces (H) as illustrated.
2. Fixate the TV mount to the display. Depending on the display different screw sets or sizes may be required:
► Use Bag C, including M8 screws (reference 5), spacers (reference 6) and washers (reference 7).
► Use Bag D, including M8 screws (reference 5), spacers (reference 6), washers (reference 7) and nuts
(reference 8).
► Use Bag D1, including M6 screws (reference 5), spacers (reference 6), washers (reference 7) and nuts
(reference 8).
3. Optionally use the washers (reference 9) from bag E.
4. Slide the top plate (G) until sufficient contact between the rubber strip (reference 10) and the display bezel
is made.
5. Tighten all four screws (references 2) to lock the TV mount in place.
Attaching the ClickShare bar
Cover or protect the lens to prevent damage or scratches while attaching!
X
G
1
1. Slide the keyholes of the ClickShare bar wall mount (X) over the screws in the top plate (G).
2. Lock the ClickShare bar in place by pushing the wall mount (X) downwards.
3. Tighten the two screws (reference 1) to secure the ClickShare bar in place.
4. Tilt the ClickShare bar to the desired angle.

Barco ClickShare Specifications

General

Plug-and-Play	Yes
Video Outputs	HDMI
Supported Resolutions	Up to 4K UHD
Number of Concurrent Users	Up to 8 (depending on the specific model)
Operating System Compatibility	Windows, macOS
Security Protocols	WPA2
Maximum Resolution	3840x2160
Connection	USB
Encryption	AES
Supported Video Formats	H.264
Wireless Technology	Wi-Fi
