R5906906-02 Rigging frame F80 series
10
1

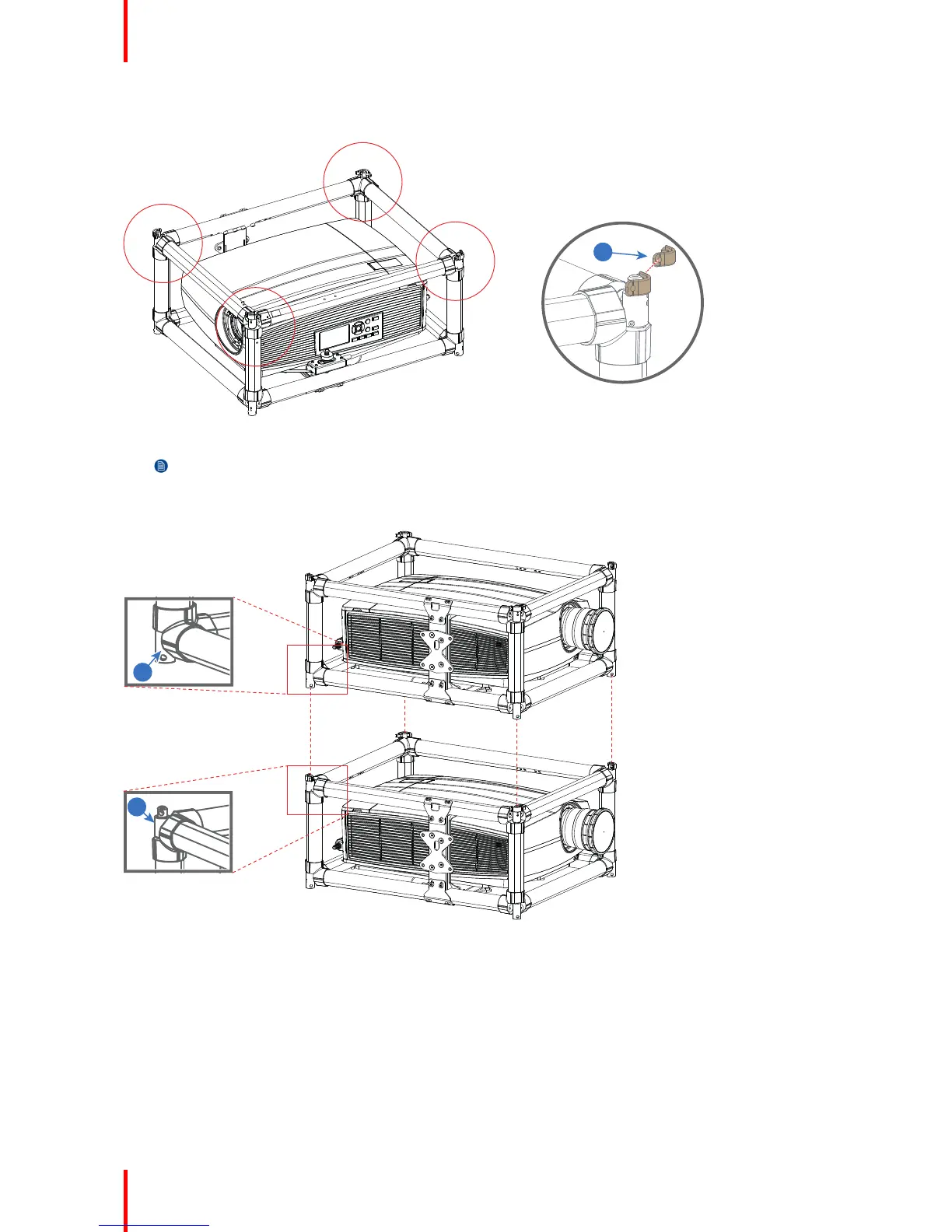

Image 1-7: Lock pins
Note: Even if not all pins are necessary in your current setup, it is important to keep all locking pins to
their respective rigging frame for future use.
3. Stack the multifunctional frames. Make sure the stacking pins of the both frames are aligned.
2
3
Image 1-8: Stack projectors
2 Lower stacking pins
3 Upper stacking pins
4. Install the locking pin (1) through the overlapping hole of both stacking pins.
