R5906906-02 Rigging frame F80 series
12

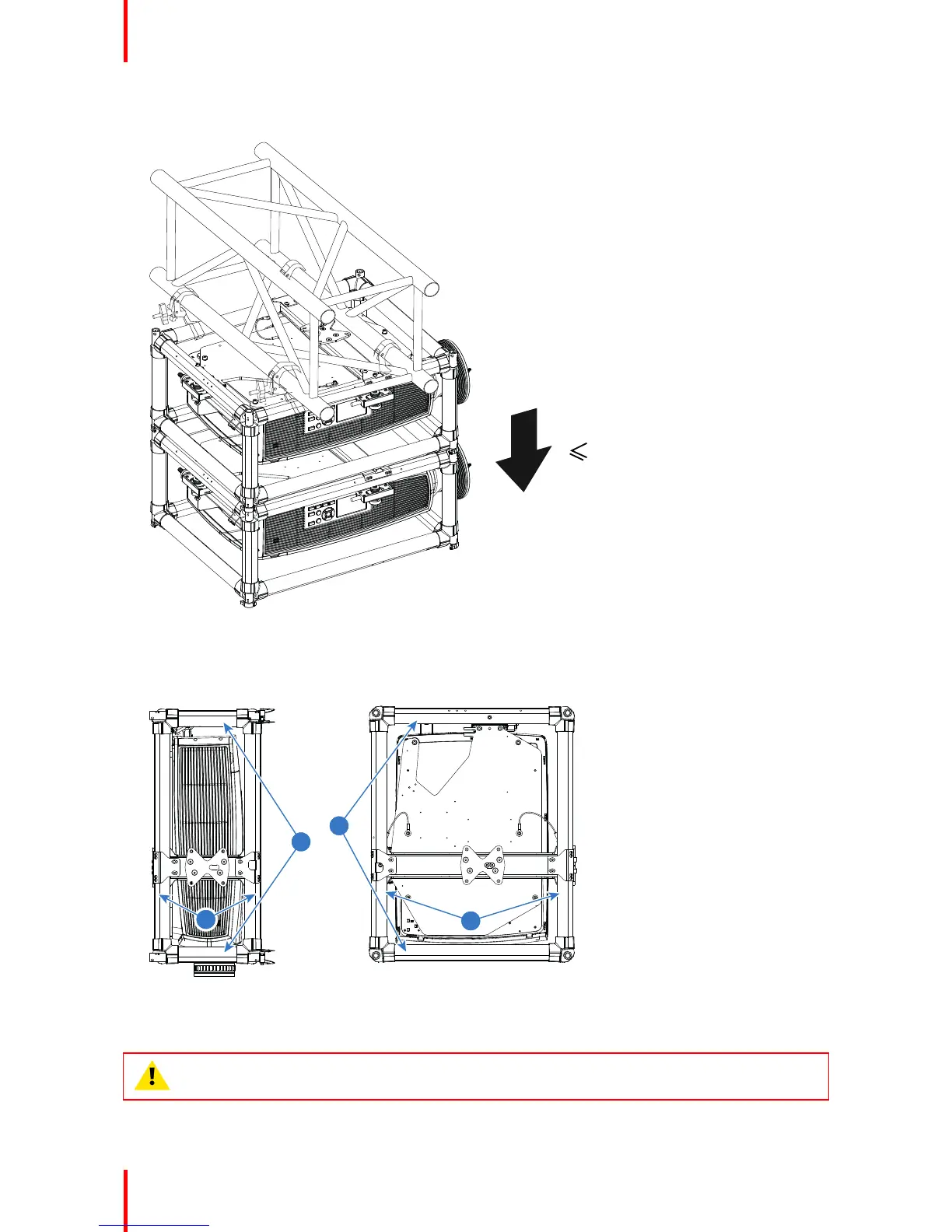

Image 1-10: Hanging limits
• Alternatively, when using a single point of connection, you can use one of the two rigging points for
suspending the frames. When using this method, also make sure to attach two safety cables. Tie these
cables from the truss towards two of the frame bars opposing each other.
Image 1-11: Hanging positions
• When using a single point hanger, take into account that the 4 bolts connecting the single point hanger to
the frame should be M8 bolts that must be inserted at least 15 mm into the frame rigging points.
CAUTION: When using single point suspension (both ceiling or portrait mode), it is not allowed to
incline the frame for more than 20° towards the horizon.
