Barco F80 series

R5906906-02 Rigging frame F80 series
14
X mm

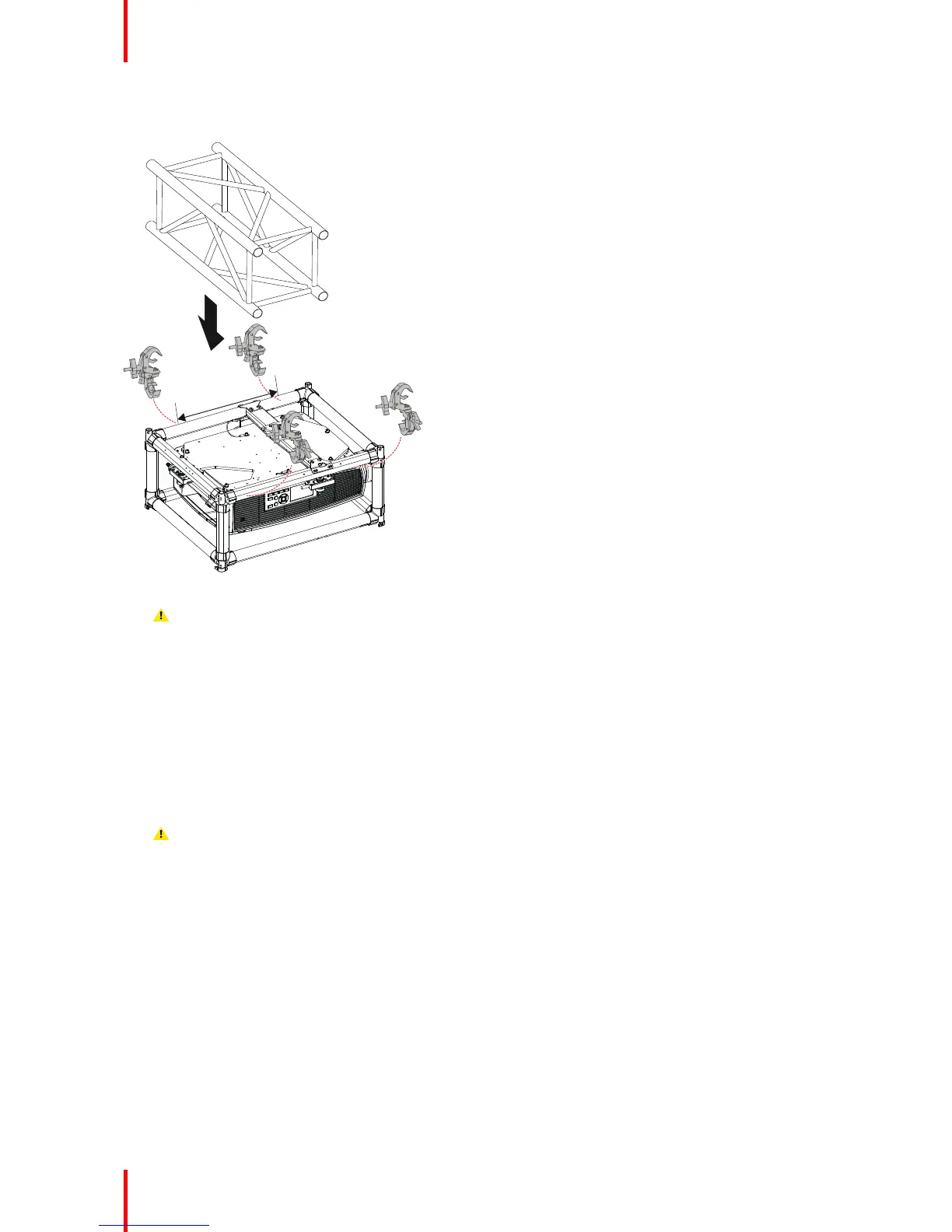

Image 1-14: Example of mounting to truss
Warning: Always secure the rigging points after adjustment.
4. Lock all four rigging clamps.
5. Lift up the truss with the attached projector to the desired height.
How to suspend from a truss, using a single point hanger
1. Turn the projector upside down.
Rotate the single point hanger so that the four big bolts matches the holes in the rigging frame.
Tighten the bolts to the rigging frame.
Caution: When using a single point hanger, take into account that the 4 bolts connecting the single
point hanger to the frame should be M8 bolts that must be inserted at least 15 mm into the frame
rigging points.
F80 series multifunctional frame
