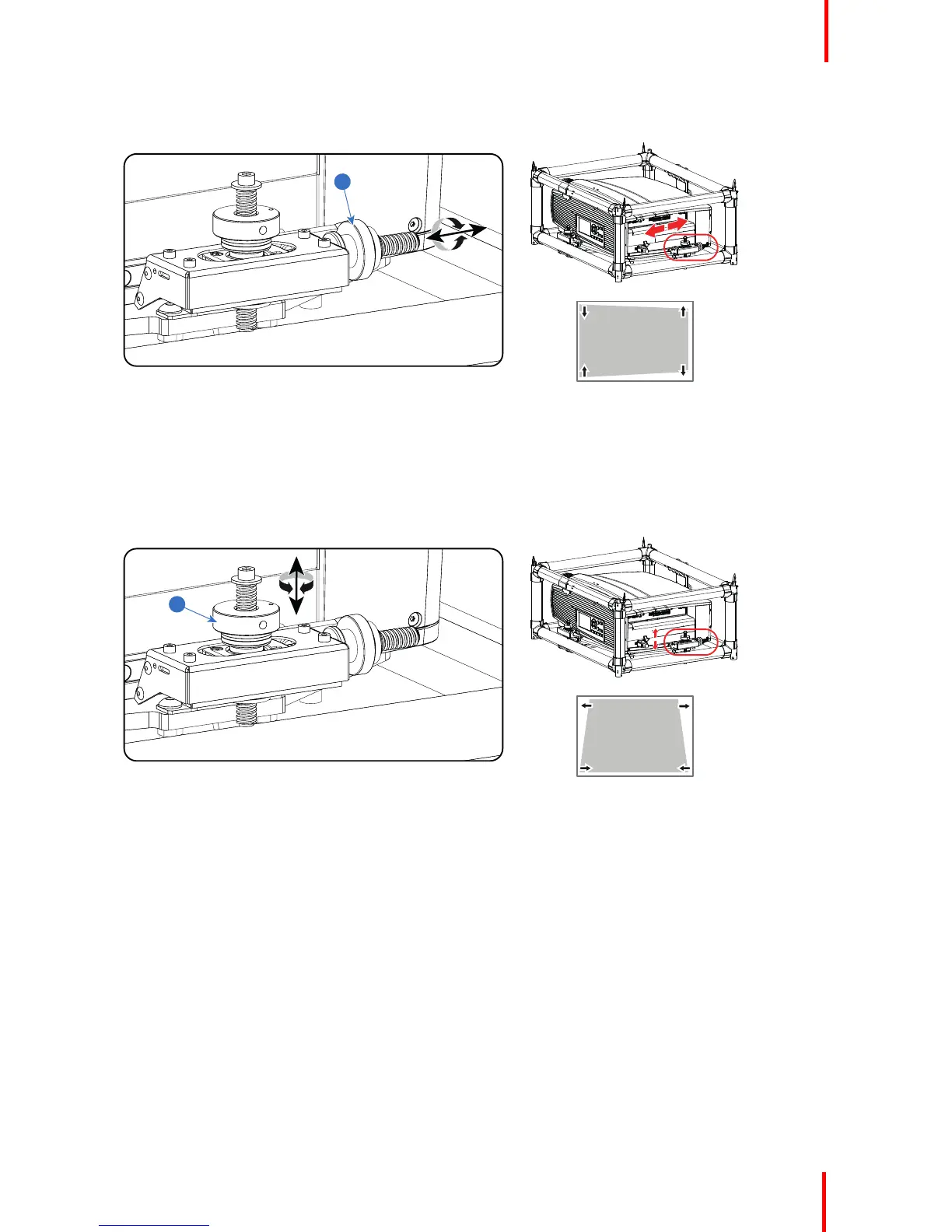

Image 1-19: Skew adjustment
1.7 Tilting the projector
How to tilt the projector
1. Turn the tilt adjustment knob (1) at the back to lift the projector up or down.
1
Image 1-20: Tilt adjustment
1.8 Rotating the projector
How to rotate the projector
1. Turn the rotate adjustment knob on the right side of the projector.
