Barco F80 series Installation Guides

R5906906-02 Rigging frame F80 series
8
1
2
3
4
5
M8:4 Nm
M6: 4 Nm
M8:4 Nm
M6: 4 Nm

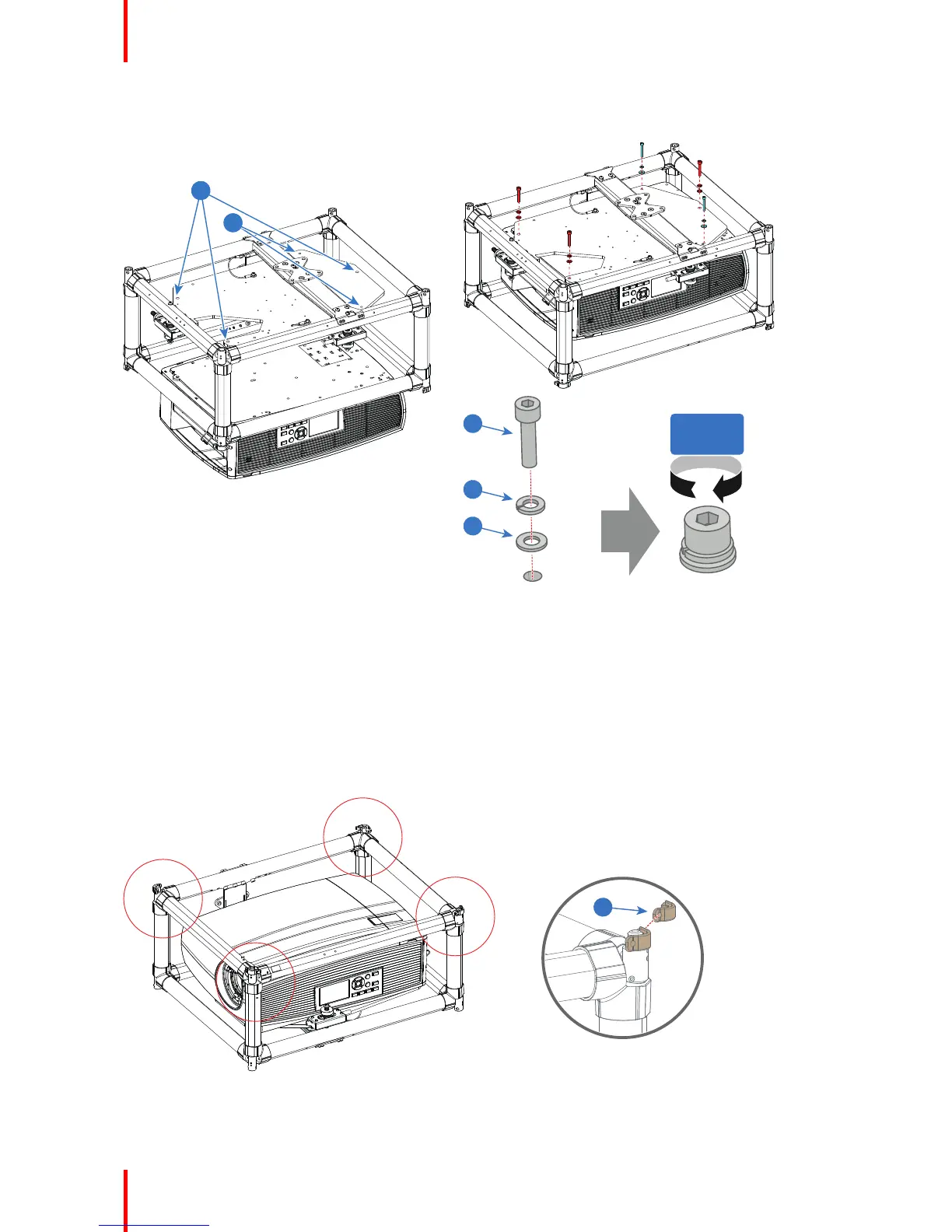

Image 1-3: Mount frame and screws
6. Mount the 3 M8 hex screws (M8x45) and the two M6 hex screws (M6x45) (3) + spring washer (4) + plain
washer (5) on the bottom of the rigging frame to tie the two together. Use a torque of 4 Nm for both type of
screws.
How to finish the installation
1. Make sure that all screws are tightened correctly.
2. Lift up the rigging frame with projector and flip it upside down.
3. install the four locking pins in the top stacking pins.
1
Image 1-4: Lock pins
F80 series multifunctional frame
