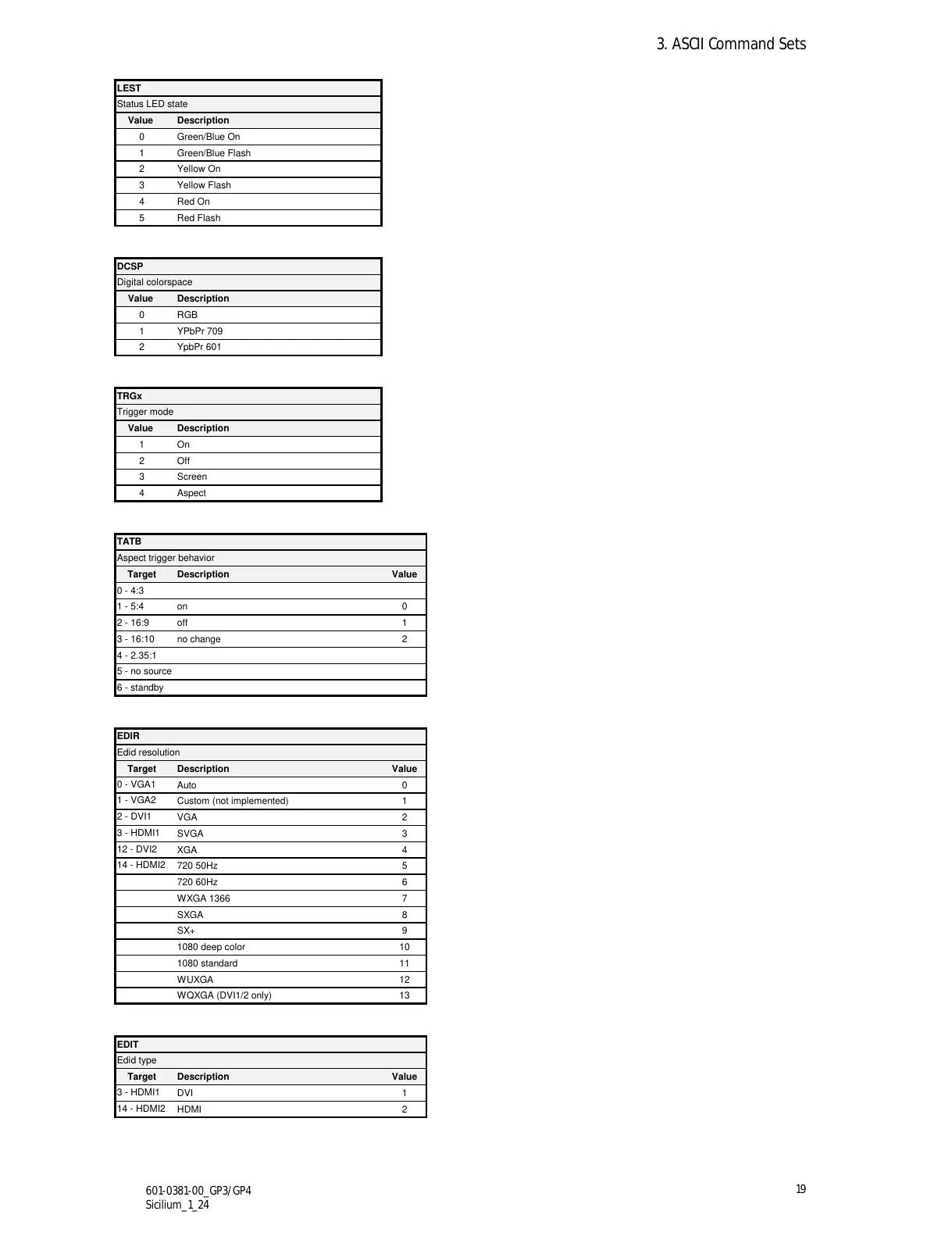

LEST
Status LED state
Value Description
0 Green/Blue On
1 Green/Blue Flash
2 Yellow On
3 Yellow Flash
4 Red On
5 Red Flash
DCSP
Digital colorspace
Value Description
0 RGB
1 YPbPr 709
2 YpbPr 601
TRGx
Trigger mode
Value Description
1 On
2 Off
3 Screen
4 Aspect
TATB
Aspect trigger behavior
Target Description Value
0 - 4:3
1 - 5:4 on 0
2 - 16:9 off 1
3 - 16:10 no change 2
4 - 2.35:1
5 - no source
6 - standby
EDIR
Edid resolution
Target Description Value
Auto 0
Custom (not implemented) 1
VGA 2
SVGA 3
XGA 4
720 50Hz 5
720 60Hz 6
WXGA 1366 7
SXGA 8
SX+ 9
1080 deep color 10
1080 standard 11
WUXGA 12
WQXGA (DVI1/2 only) 13
EDIT
Edid type
Target Description Value
DVI 1
HDMI 2
0 - VGA1
3 - HDMI1
14 - HDMI2
1 - VGA2
2 - DVI1
3 - HDMI1
12 - DVI2
14 - HDMI2
3. ASCII Command Sets
