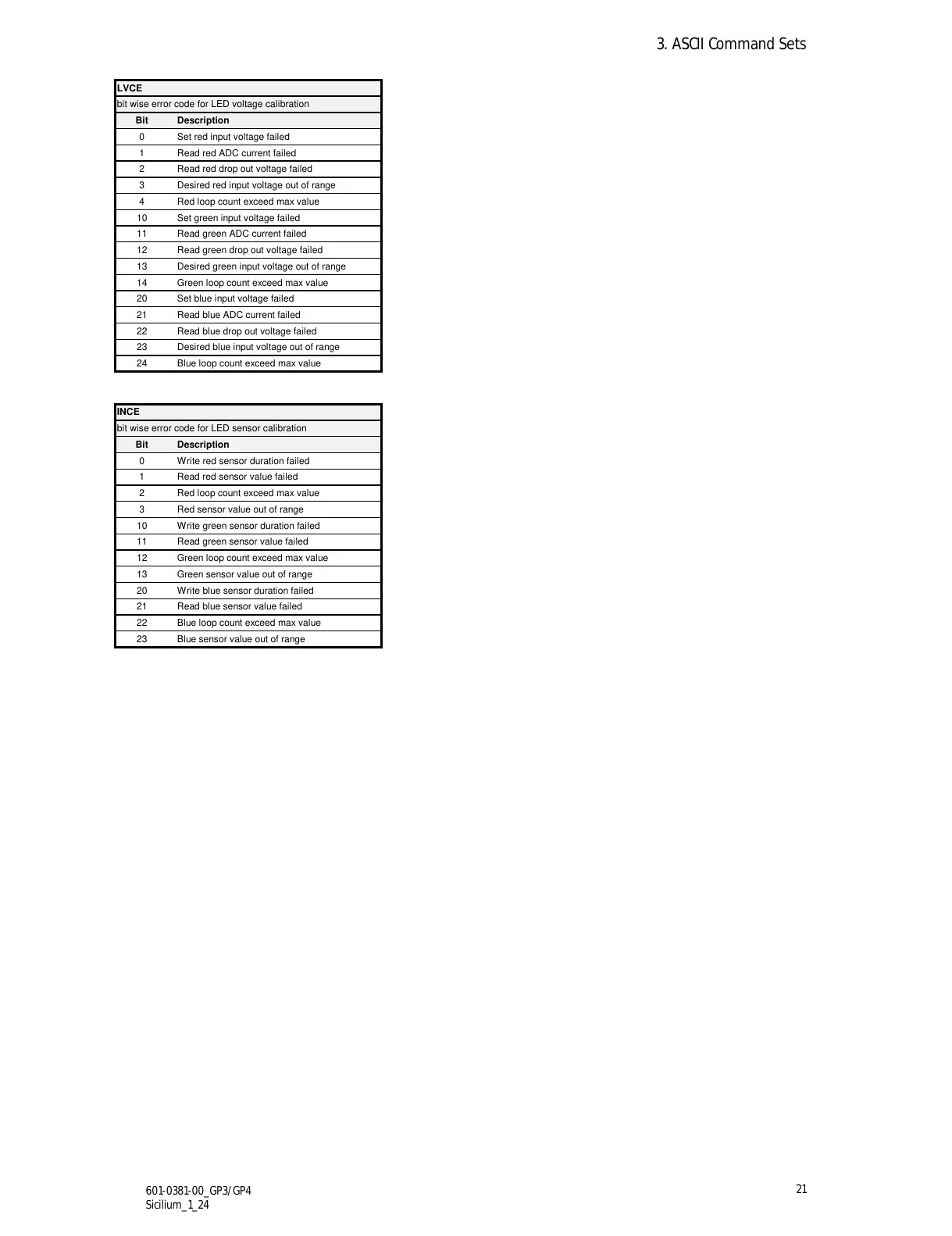

bit wise error code for LED voltage calibration
Bit Description
0 Set red input voltage failed
1 Read red ADC current failed
2 Read red drop out voltage failed
3 Desired red input voltage out of range
4 Red loop count exceed max value
10 Set green input voltage failed
11 Read green ADC current failed
12 Read green drop out voltage failed
13 Desired green input voltage out of range
14 Green loop count exceed max value
20 Set blue input voltage failed
21 Read blue ADC current failed
22 Read blue drop out voltage failed
23 Desired blue input voltage out of range
24 Blue loop count exceed max value
INCE
bit wise error code for LED sensor calibration
Bit Description
0 Write red sensor duration failed
1 Read red sensor value failed
2 Red loop count exceed max value
3 Red sensor value out of range
10 Write green sensor duration failed
11 Read green sensor value failed
12 Green loop count exceed max value
13 Green sensor value out of range
20 Write blue sensor duration failed
21 Read blue sensor value failed
22 Blue loop count exceed max value
23 Blue sensor value out of range
