Barco ImagePRO-II User Guide Addendum

26-0904001-00 Rev 00.00 11
Save and Reset Output Configs

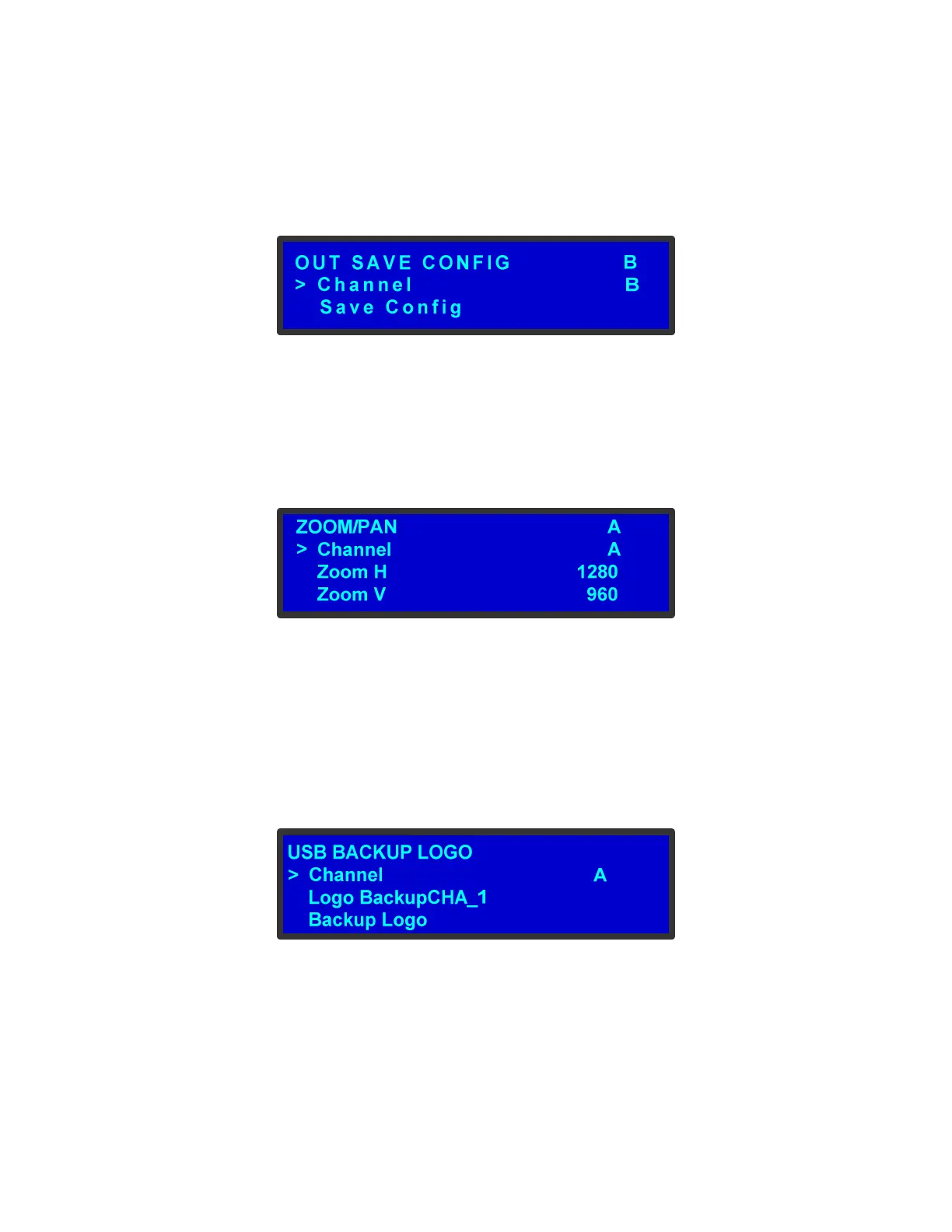

1) Within the SAVE CONFIG and RESET CONFIG submenus under OUTPUT, the first
field allows for the selection of A, B or ALL. Make the appropriate selection when
saving or resetting output configurations.
Pan / Zoom
1) Select the PAN/ZOOM button on the front panel of the ImagePRO-II.
2) The first field (labelled CHANNEL) allows the selection of A or B to allow
independent Pan and Zoom adjustments for each output channel.
3) The same operation is also available under the LED SETUP  IMAGE SIZING
submenu.
Logo Backup and Restore
1) Within the SETUP  LOGO menu the BACKUP LOGO and RESTORE LOGO
submenus have the CHANNEL selection for the first field. This allows for
independent backup or restore of logos for each channel.
