Bard FH085D36D - Lo-Boy Models - Filter Locations; Figure 15 Filter Installation - Lo-Boy Models

Manual 2100-392
Page 22
LO-BOY MODELS – FILTER LOCATIONS
Lo-boy models have the filter installed in the return air cabinet section of the furnace. It is accessible from the rear of
the furnace by removing the blower/filter access door. The electrical switch should be turned “off” prior to removing
the access door. Refer to Figure 15 below.

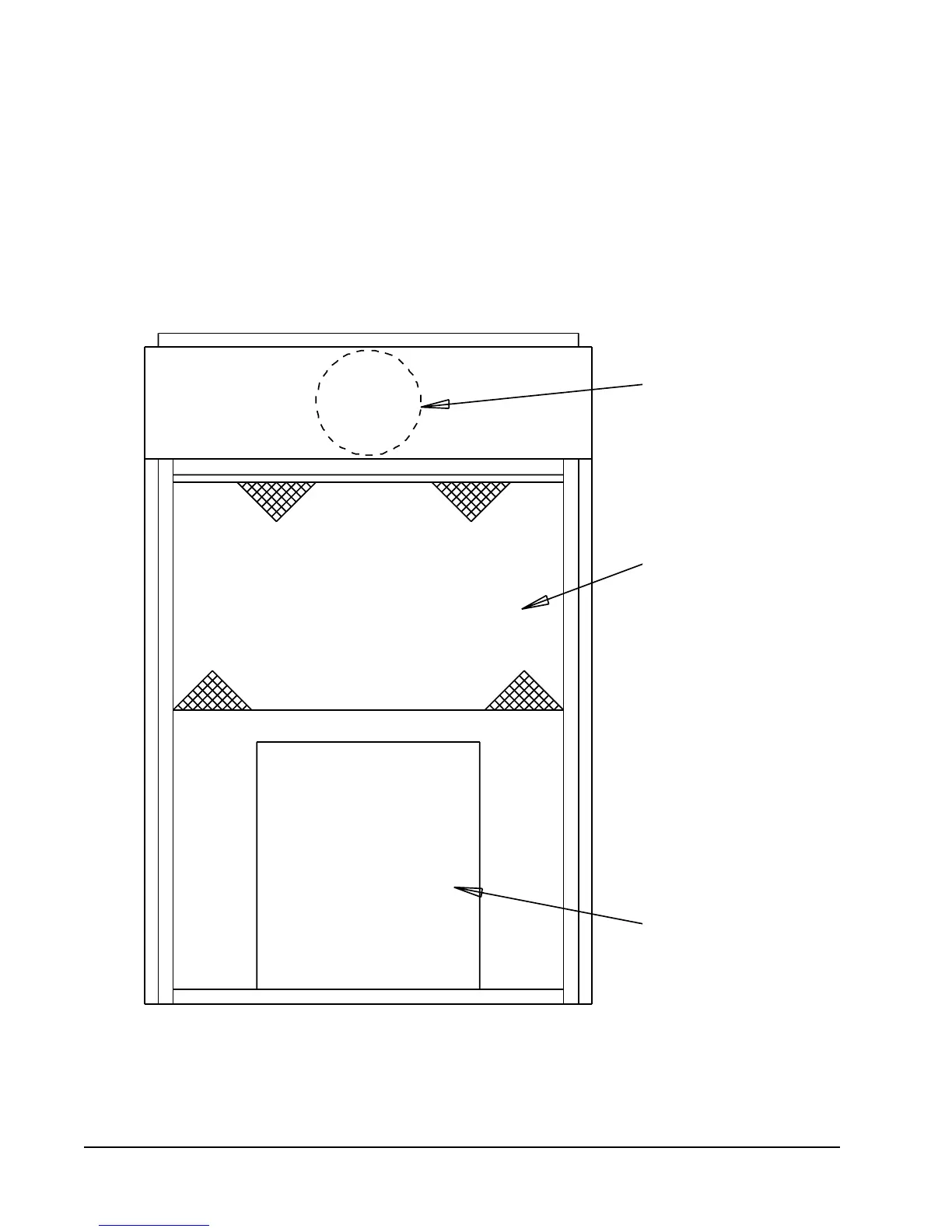

FIGURE 15
FILTER INSTALLATION – LO-BOY MODELS
MIS-1332
FILTER:
FLR/FLF085 16x20x1
FLR/FLF110 20x20x1
FLR140 20x25x1
FLUE PIPE LOCATION
ON FLR MODELS ONLY
BLOWER
