Bard FH085D36D - Blower System Resistance Curves

Manual 2100-392
Page 27
FH RESISTANCE CURVES

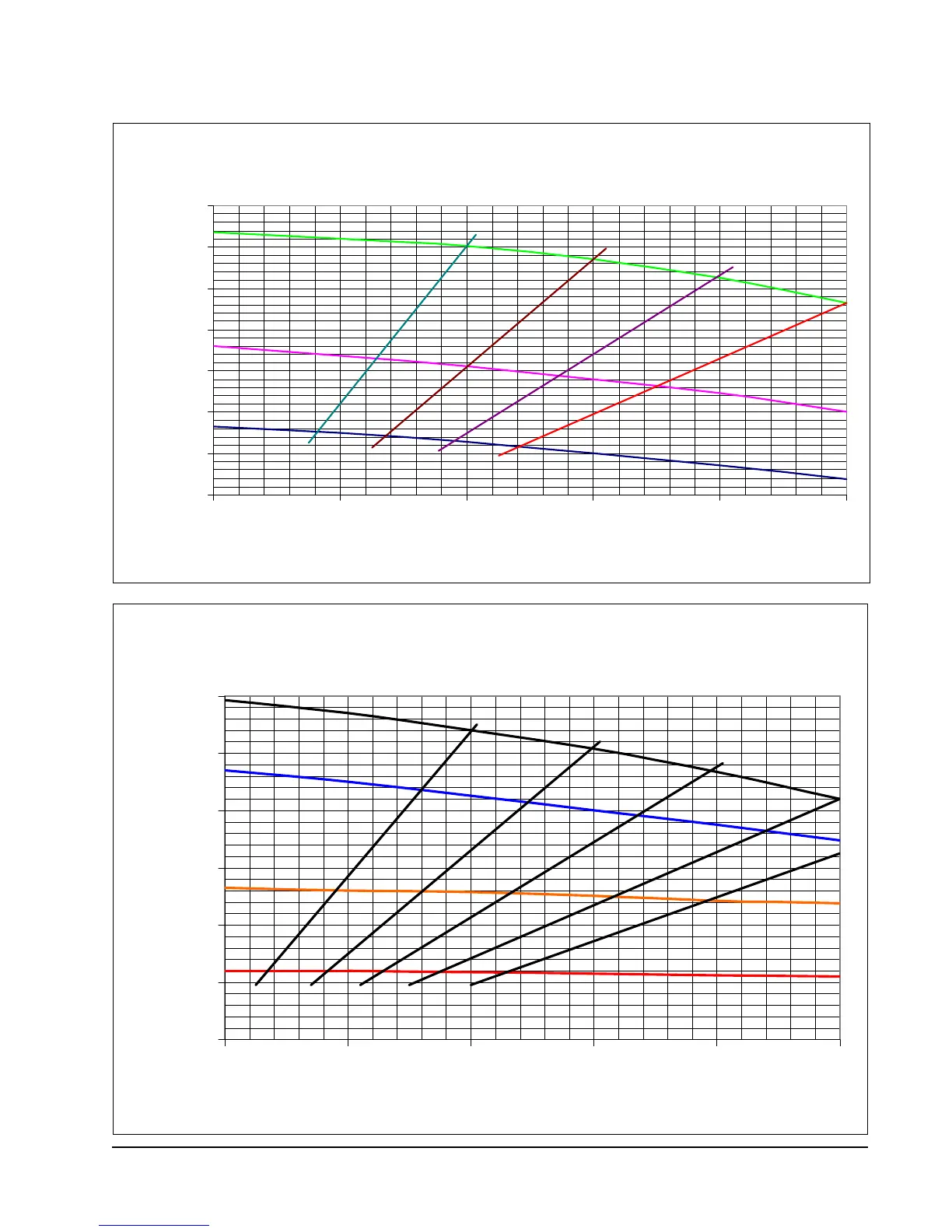

FH085D36D System Resistance Curves
700
800
900
1000
1100
1200
1300
1400
0 0.1 0.2 0.3 0.4 0.5
External Static Pressure in Inches of Water
CFM Standard Airflow
HIGH
MED.
LOW
FH110D48D System Resistance Curves
800
1000
1200
1400
1600
1800
2000
0 0.1 0.2 0.3 0.4 0.5
External Static Pressure in Inches of Water
CFM Standard Airflow
HIGH
MED.HIGH
MED. LOW
LOW
