RESISTANCE CURVES

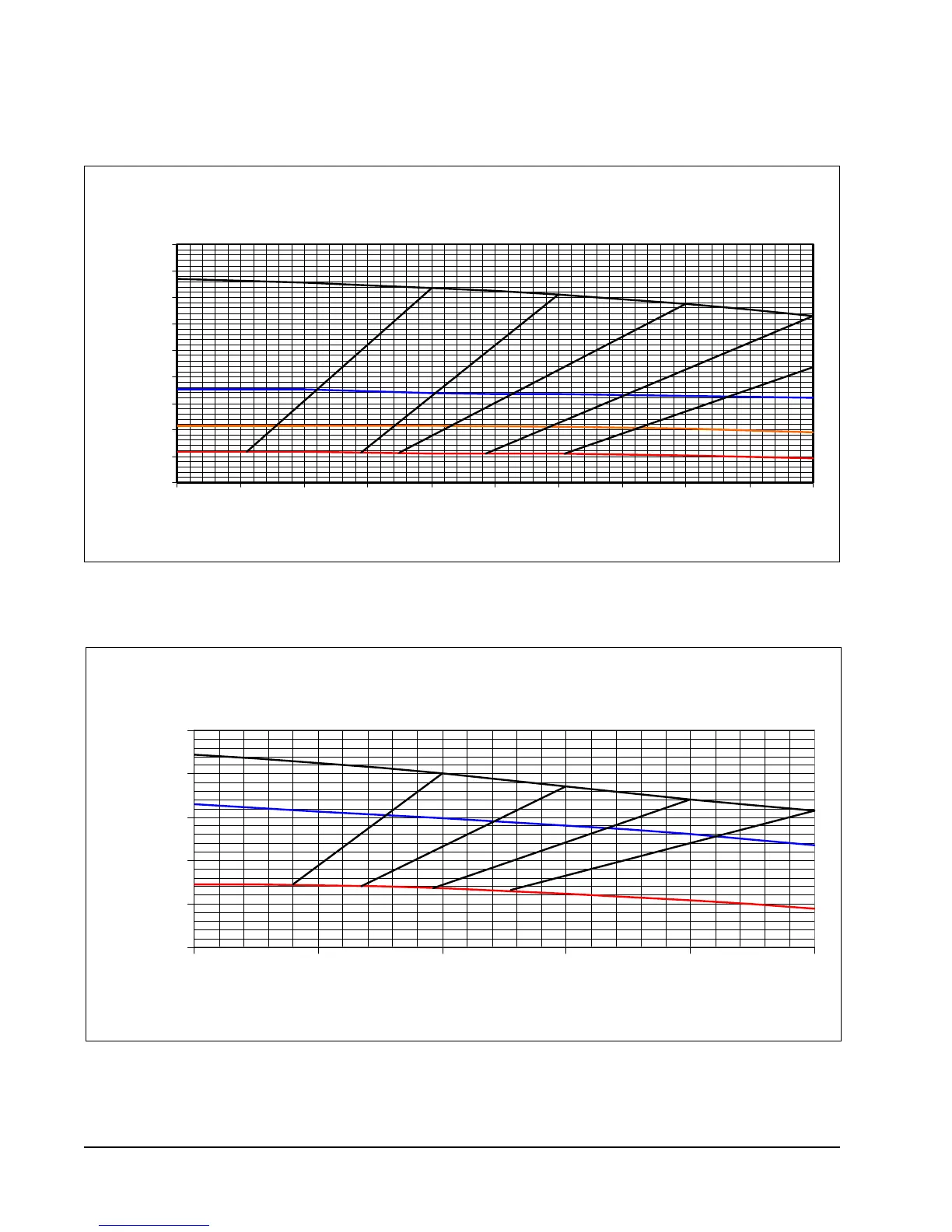

FC085D36D System Resistance Curves
600
800
1000
1200
1400
1600
0 0.1 0.2 0.3 0.4 0.5
External Static Pressure in Inches of Water
CFM Standard Airflow
HIGH
MED.
LOW
FLR140D60D System Resistance Curves
1000
1200
1400
1600
1800
2000
2200
2400
2600
2800
0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5
External Static Pressure in Inches of Water
CFM Standard Airflow
HIGH
MED. HIGH
MED. LOW
LOW
