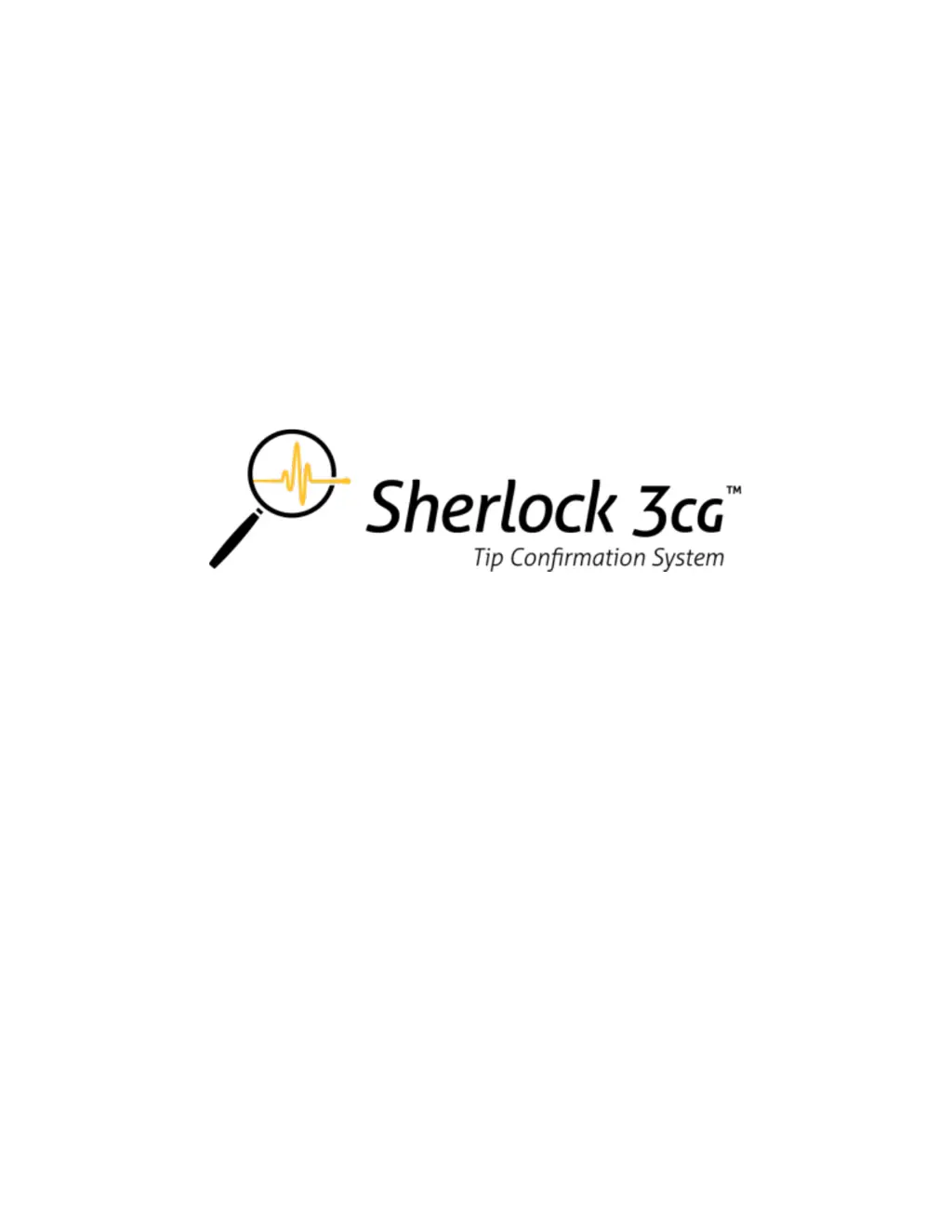

Bard Sherlock 3CG Tip Confirmation System User Manual (English)

Questions and Answers:

M
matthew45Aug 18, 2025
Why does the magnetic navigation stylet icon have erratic behavior on my Bard Sherlock 3CG Tip Confirmation System?
- S
  Sheila SimmonsAug 18, 2025
  If the magnetic navigation stylet icon on your Bard Medical Equipment exhibits erratic behavior, it could be due to the stylet being at the edge of the sensor's depth range (3 to 11 cm) or magnetic interference. Try pulling the catheter back until the stylet icon is stable, verify the catheter is moving in the correct direction, and continue placement. If magnetic interference is the issue, pull the catheter tip back at least 12 inches (30 cm) from the sensor, recalibrate, and re-advance the catheter. It might also be that too much time has passed since calibration, so recalibrating might help.
D
Dominic VillarrealAug 20, 2025
What to do if magnetic navigation does not detect the stylet on Bard Medical Equipment?
- T
  trevor02Aug 20, 2025
  If the magnetic navigation on your Bard Medical Equipment does not detect the stylet, ensure the sensor is correctly oriented per the procedure. If the vein is deep, make sure the top of the sensor on the insertion side is touching the patient's skin. If the vein is shallow, lift the sensor away from the skin. Recalibrate, ensuring the catheter tip is at least 12 inches (30 cm) from the sensor. Also, ensure the stylet is within 1 cm of the catheter tip, and verify that you are using a compatible Bard Access Systems’ catheter kit. If the stylet magnet is trimmed off, replace the catheter with a new one from a labeled kit.
T
Tammy WagnerAug 23, 2025
What does it mean when the magnetic navigation stylet icon disappears on Bard Medical Equipment?
- B
  Brandi ThomasAug 23, 2025
  If the magnetic navigation stylet icon disappears and a "sweeping magnifying glass" is displayed on your Bard Medical Equipment, it is likely that the stylet is out of the sensor’s depth range (3 to 11 cm) or there is magnetic interference. Pull the catheter back until the stylet icon is stable, and verify the catheter is moving in the correct direction, continuing placement using ECG guidance and catheter measurement. If magnetic interference is the cause, pull the catheter tip back at least 12 inches (30 cm) from the sensor, recalibrate, and re-advance the catheter. This issue can also occur if too much time has passed since calibration, so recalibrating might help.
A
anthonycarolineAug 26, 2025
How to troubleshoot a poor ECG signal on Bard Sherlock 3CG Tip Confirmation System Medical Equipment?
- N
  Nancy BarreraAug 26, 2025
  If you observe a poor ECG signal on your Bard Medical Equipment, ensure the fin and stylet connectors are fully seated and the ECG electrode contact area on the skin is oil-free and completely dry. Patient movement or extraneous noise can also cause this issue, so ask the patient to remain still and avoid touching the stylet or electrodes. Damaged ECG electrodes should be replaced. Make sure the catheter is locked with saline and that catheter T-lock connections are fully seated, flushing the catheter lumen with saline. If using an external ECG signal, place the black electrode on the patient’s right shoulder (Lead II view).
S
Susan SchwartzAug 28, 2025
What causes a flat-line ECG signal on Bard Medical Equipment and how to fix it?
- J
  Jonathan WilliamsAug 28, 2025
  If you're experiencing a flat-line ECG signal on your Bard Medical Equipment, fully seat the fin on the sensor. Ensure there is proper ECG electrode connection by making sure the skin where the electrodes are placed is oil-free and completely dry. Replace any damaged ECG electrodes and ensure catheter T-lock connections are fully seated. If there is an air bubble at the catheter tip, flush the catheter lumen containing the stylet with saline. Also, fully seat the stylet connector on the fin.
A
alyssa39Aug 30, 2025
Why is the ECG screen not visible on my Bard Sherlock 3CG Tip Confirmation System Medical Equipment?
- K
  Kevin Black DVMAug 30, 2025
  If the ECG screen is not visible on your Bard Medical Equipment, ensure you are using a compatible sensor with product code number 9770131. Also, verify that the correct PICC Compatibility is selected in the settings. In Ultrasound Mode, select Settings, then ‘Layout’ and choose ‘Ultrasound and S3CG,’ then select ‘Apply.’ In TCS Mode, select Settings, and under ‘PICC Compatibility,’ select ‘Magnet and ECG,’ then ‘Apply.’
K
Karen ThompsonSep 2, 2025
What should I do if the ECG signal is abnormal on my Bard Sherlock 3CG Tip Confirmation System Medical Equipment?
- A
  Amanda MckinneySep 2, 2025
  If you notice an abnormal ECG signal on your Bard Medical Equipment, ensure that the ECG leads are placed correctly. If there is no distinct P-wave, do not rely on ECG guidance for catheter tip confirmation.
C
courtneysantosSep 4, 2025
Why is the ECG baseline wandering on my Bard Sherlock 3CG Tip Confirmation System?
- N
  Noah AndersonSep 5, 2025
  If you are experiencing a wandering ECG baseline on your Bard Medical Equipment, ensure that the area on the skin where the ECG electrodes were placed is oil-free and completely dry. Patient movement or extraneous noise can also cause this issue, so ask the patient to remain still and avoid touching the stylet or electrodes. Additionally, ensure catheter T-lock connections are fully seated and flush the catheter lumen containing the stylet with saline.
S
Sean NguyenSep 7, 2025
What does 'Sensor Error' mean on Bard Sherlock 3CG Tip Confirmation System Medical Equipment?
- G
  ggonzalezSep 7, 2025
  If the Bard Medical Equipment displays a 'Sensor Error,' it may be due to interference from magnetic field changes or sensor movement. Move all metal objects at least 12 inches (30 cm) away from the sensor, lower bed rails, and move active electronic devices at least 5 feet (1.5 m) away. Ensure the sensor is not moving and ask the patient to remain still. Calibrate the system. If the error continues, discontinue use and call the technical support hotline.
M
Maria HallSep 9, 2025
What does 'Magnet Error' mean on Bard Sherlock 3CG Tip Confirmation System?
- R
  Rebekah RussellSep 9, 2025
  If the Bard Medical Equipment displays a 'Magnet Error,' it may be due to interference from magnetic field changes or sensor movement. Move all metal objects at least 12 inches (30 cm) away from the sensor, lower bed rails, and move active electronic devices at least 5 feet (1.5 m) away. Ensure the sensor is not moving and ask the patient to remain still. Also, ensure the catheter tip is at least 12 inches (30 cm) away from the sensor. Calibrate the system. If the error continues, discontinue use and call the technical support hotline.

Bard Sherlock 3CG Tip Confirmation System Specifications

General

Brand	Bard
Model	Sherlock 3CG Tip Confirmation System
Category	Medical Equipment
Language	English

Summary

Sherlock 3CG Instructions for Use

System Symbols and Indicators

Overview and System Description

Indications for Use

Guidance and positioning of Peripherally Inserted Central Catheters (PICCs).

Post Market Clinical Trial

Assessment of ECG method for correct PICC tip positioning in adult patients.

Sherlock 3CG TCS Description

Aid in PICC tip positioning via magnet tracking and ECG technology.

ECG Positioning

Utilizes ECG signal for catheter tip positioning based on P-wave amplitude changes.

Magnetic Navigation Technology

System Components

General Warnings

Usage and Environmental Warnings

ECG Signal Variability and Limitations

Rely on magnetic navigation/X-ray for intermittent P-waves or no observable changes.

MRI and Electrical Safety

Avoid MRI; use correct power cord and grounded outlets; ensure cable insulation.

Electrode Placement and Patient Contact

Place electrodes on intact skin; ensure patient does not contact metal surfaces.

General Precautions

Regulatory and Handling Precautions

Physician order required; do not pull cables, twist, bend, or use excessive force.

Storage and Interference Precautions

Store sensor properly; keep ferromagnetic objects and RF sources at least 5 ft away.

Skin and System Care Precautions

Apply electrodes to clean skin; discontinue if irritation occurs; shutdown via power button.

System Assembly

Connecting the Sherlock TCS Sensor

Connect the Sherlock 3CG™ TCS Sensor to the Site~Rite Vision™ II Ultrasound System via USB.

System Information and Layout

Enabling Ultrasound and TCS Layout

Procedure to enable ultrasound and Sherlock 3CG™ TCS waveform display on the screen.

Graphical Interface Overview

Site-Rite Vision II Ultrasound Mode

Display of Ultrasound Imaging and Sherlock 3CG™ TCS External ECG.

TCS Mode Screen Layout

Magnet Tracking Display and Controls

Sherlock 3CG TCS Controls and Indicators

Description of main controls and indicators for the Sherlock 3CG™ TCS system.

PICC Compatibility and Print Settings

Audio Information and Parallax

Parallax Effect Explained

Explanation of parallax as a difference in object location from two viewpoints.

Catheter Care and Device Preparation

Device Preparation Steps

Steps for preparing the device, positioning patient, and measuring catheter length.

Sensor Preparation and Placement

Procedure for preparing the sensor with the Fin Assembly and placing it in the holder.

ECG Electrode Placement

Calibration and Catheter Insertion

Final Magnet-Tracking Calibration

Procedure for final calibration before catheter insertion in TCS Mode.

Catheter Insertion and Tip Positioning

Guidance on inserting the catheter and using magnetic navigation for tip positioning.

Magnetic Navigation and ECG Tip Navigation

ECG Positioning Guidance

Guidance on using ECG waveforms for catheter tip positioning in the cavo-atrial junction.

Procedural Record and Printout

Magnetic Navigation Only Mode

Troubleshooting and Error Messages

Error Screens and Solutions

Identifies common error screens and provides solutions for sensor and magnet errors.

ECG Troubleshooting

Solutions for flat-line, poor, wandering, absent ECG signals, and abnormal waveforms.

Magnetic Navigation Troubleshooting

Solutions for magnetic navigation failures, erratic behavior, and disappearing icons.

Cleaning and Disinfection Procedures

Product Warranty Information

Service and Repair Information

Technical Specifications and Disposal

Operational and Storage Conditions

Specifies operating and storage temperature and humidity ranges for the system.

Disposal Information

Information on returning the product for end-of-life recycling.
