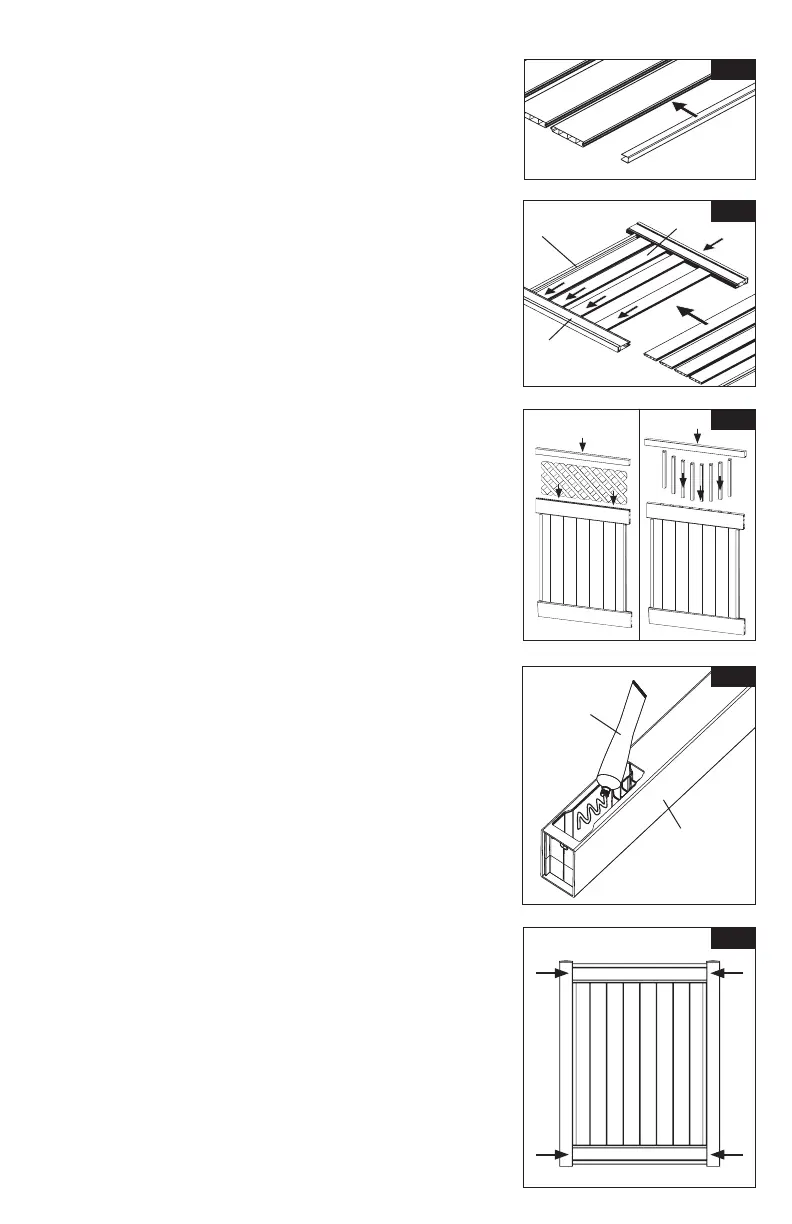

a. Apply provided vinyl cement to all inside
surfaces of the uprights where the rails will be
installed (Fig. 4).
b. Attach uprights to rails (Fig. 5).
Lay gate components on a smooth, at and
clean surface. Begin by arranging the rails in the
correct orientations.
For gates with U-Channels, slide U-Channels
onto end boards (Fig. 1).
For Full Privacy Styles:
a. Slide the boards into the bottom rail, starting
and ending with end boards while locking
each of them together (Fig. 2).
b. Slide the top rail over the boards (Fig. 2).
For Lattice Top, Open Picket Top,
And Closed Picket Top Styles:
a. Slide the boards into the bottom rail, starting
and ending with end boards while locking
each of them together (Fig. 2).
b. Slide the middle rail over the boards.
c. Insert lattice/pickets into middle rail (Fig. 3).
d. Slide the top rail over the lattice/pickets (Fig. 3).
Vinyl Cement
Upright
Assembly
Fig. 4
Fig. 5
Fig. 2
Fig. 3
U-Channel
Boards
Rail
U-Channel
Fig. 1
