Scope:
EXcite
USER MANUAL
BHB 125 / BHB 150
g
Date:
24.11.2014
Rev.:
A
Checked by:
T.H.
Approved by:
EGT
Page:
Page 4 of 12
Document no.:
57-DSP-5
WEB: www.bartec-technor.no PHONE: +47 51 84 41 00 E-MAIL: mail@bartec-technor.no

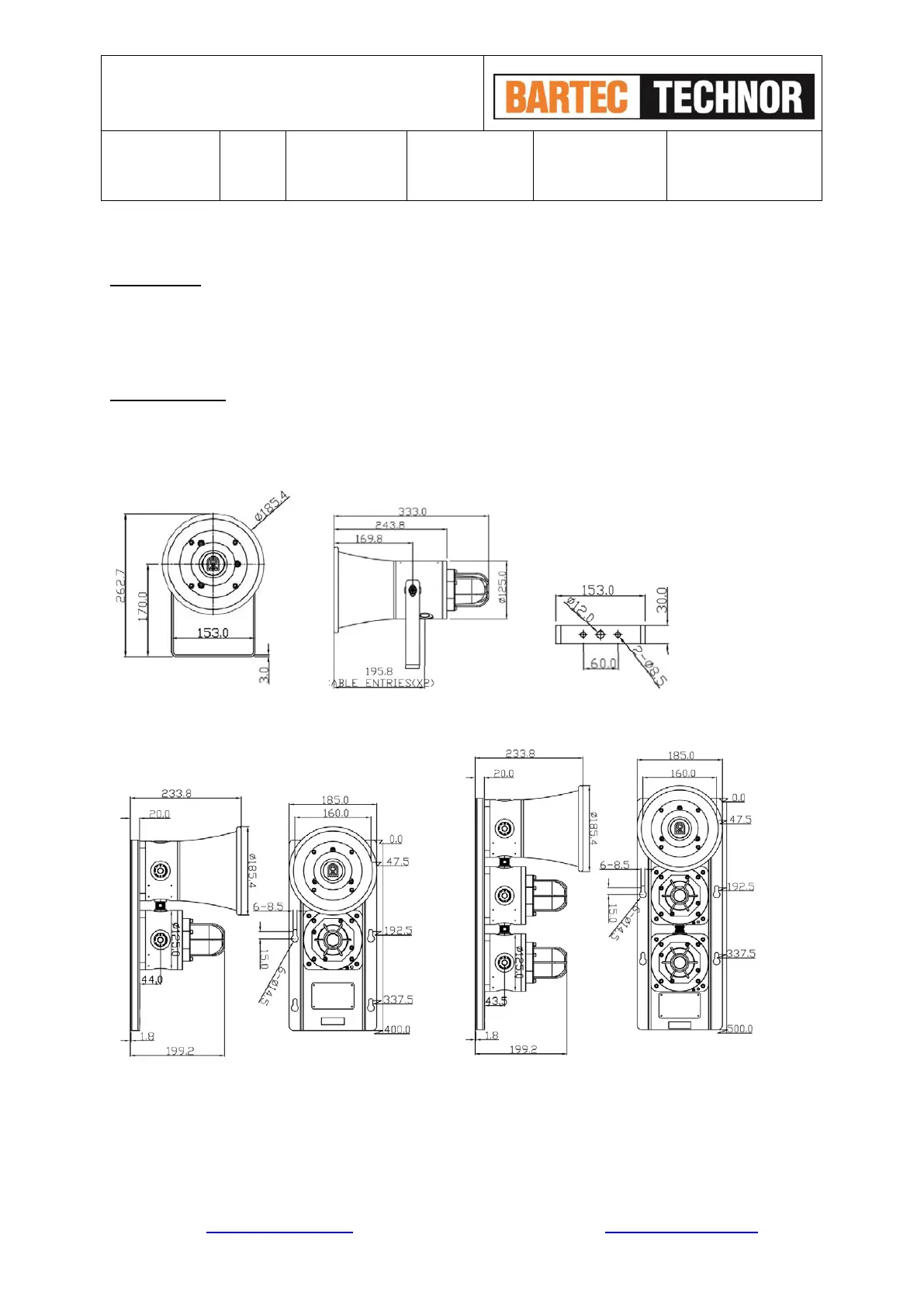

Mounting
SINGLE UNIT
The single unit only comes with one beacon and can be mounted via a ‘U’ shaped stainless steel bracket.
It can be done using one 12mm diameter and two 8,5mm diameter bolt holes in the center of the bracket.
(see fig 1). The alignment and positions can be adjusted by loosening the two M8 screws, whi ch fastened the
stainless steel bracket to the sounder. The sounder should be positioned such that dust, debris or water
cannot enter into the horn opening.
COMBINED UNIT
As for the combines unit it come with either one or two or three beacons and can be mounted on a vertical
surface via a stainless steel mounting plate (see fig. 2 A/B/C/D). The fixing holes on the mounting plate are
designed to fit M8 allen screw only. The diameter is 9mm. Use of stainless steel fastener is recommended by
BARTEC TECHNOR.
Fig. 1
Fig. 2A Fig. 2B
