Scope:
EXcite
USER MANUAL
BHB 125 / BHB 150
g
Date:
24.11.2014
Rev.:
A
Checked by:
T.H.
Approved by:
EGT
Page:
Page 5 of 12
Document no.:
57-DSP-5
WEB: www.bartec-technor.no PHONE: +47 51 84 41 00 E-MAIL: mail@bartec-technor.no

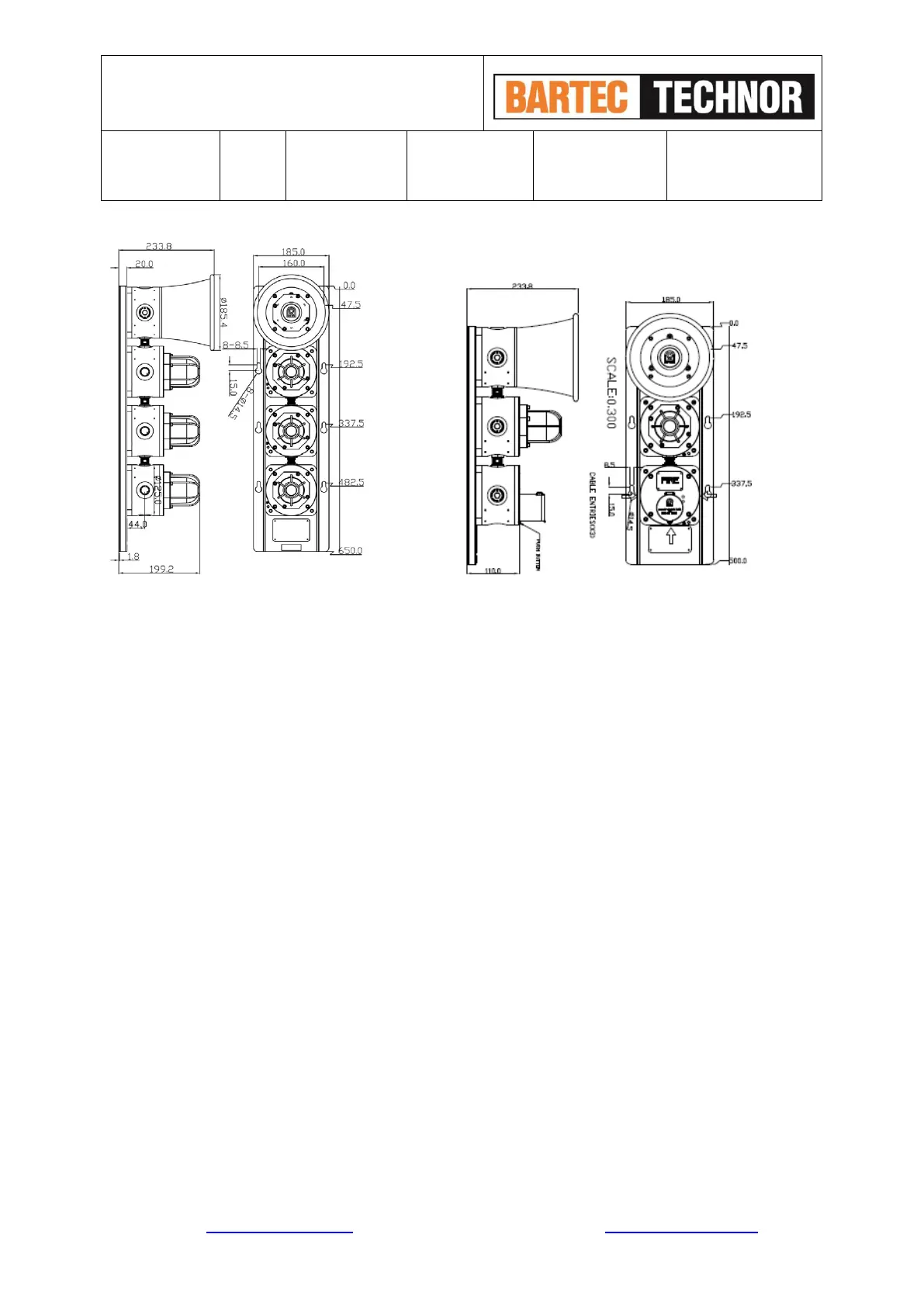

Fig. 2C Fig. 2D
6.0 WIRING
General requirement
BARTEC TECHNOR recommends that all cables and cores should be fully identified (suggest using cable
from 2.0 to 2,5mm
2
)
Ensure that all nuts, bolts and screws are secured. Ensure that only the right and certified cable glands are
used and earthen correctly. Ensure that only the right and certified stopping plugs are used to blank off unused
gland entry points. In order to maintain the IP rating of the product, we recommend SS316L for this application
Cable Connection
The cable connection is connected with the terminal blocks in the electronic PCB assembly located in the
flameproof enclosure of the Beacon Component (for single unit, see fig. 3A), or assemble located in the
bottom unit which can be Beacon Component (for combined unit, see fig. 3B) or Push Button or Junction Box.
Cable connection should be carried out in accordance with relevant technical requirement.
