Bartec BHB 15 User Manual

Scope:
EXcite
USER MANUAL
BHB 125 / BHB 150
g
Date:
24.11.2014
Rev.:
A
Checked by:
T.H.
Approved by:
EGT
Page:
Page 6 of 12
Document no.:
57-DSP-5
WEB: www.bartec-technor.no PHONE: +47 51 84 41 00 E-MAIL: mail@bartec-technor.no

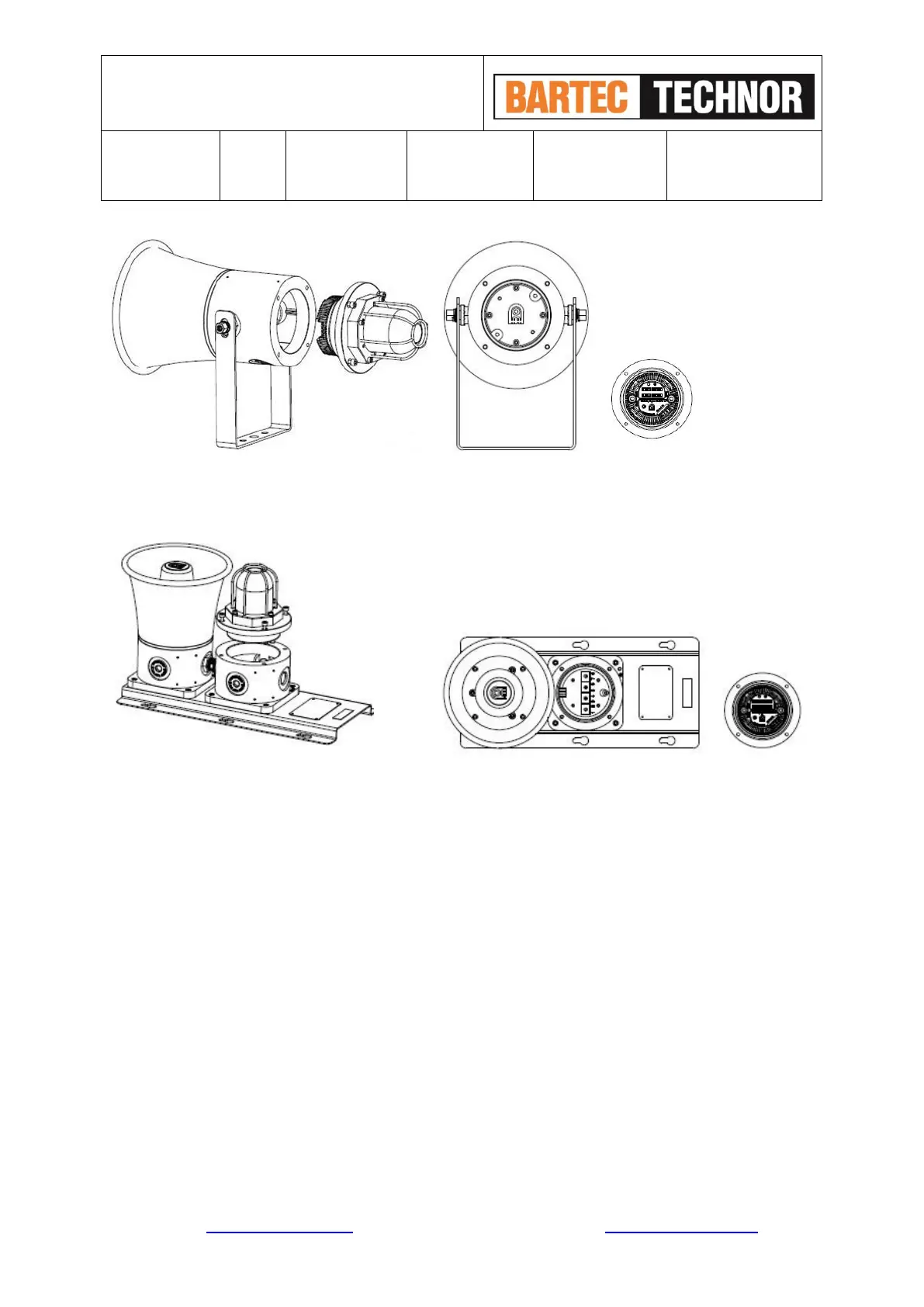

Fig. 3A – Single Unit
Fig. 3B – Combined Unit
Remove End Cover (Beacon Component)
Unscrew the 4 (BHB 125) or 6 (BHB 150) M5 retained hex socket head screws of the Beacon Component
(See fig. 3A/B). This will release the cover from the base and allow the cover to hang on the retaining wire
strap. Before replacing the cover, check that the flameproof joints are clean and not damaged, the gasket is
still retained in its groove.
CAUTION: Before removing the cover, ensure the power to the product is isolated. Remove the four pieces of
M5 socket screws to open the cover. Twist the cover gently clockwise and anti -clockwise, whilst pulling away
from the base until it comes off. Replace the cover in similar way, but operate in reverse manner as above.
