Scope:
EXcite
USER MANUAL
BHB 125 / BHB 150
g
Date:
24.11.2014
Rev.:
A
Checked by:
T.H.
Approved by:
EGT
Page:
Page 7 of 12
Document no.:
57-DSP-5
WEB: www.bartec-technor.no PHONE: +47 51 84 41 00 E-MAIL: mail@bartec-technor.no
Power Supply
Up to 48v DC

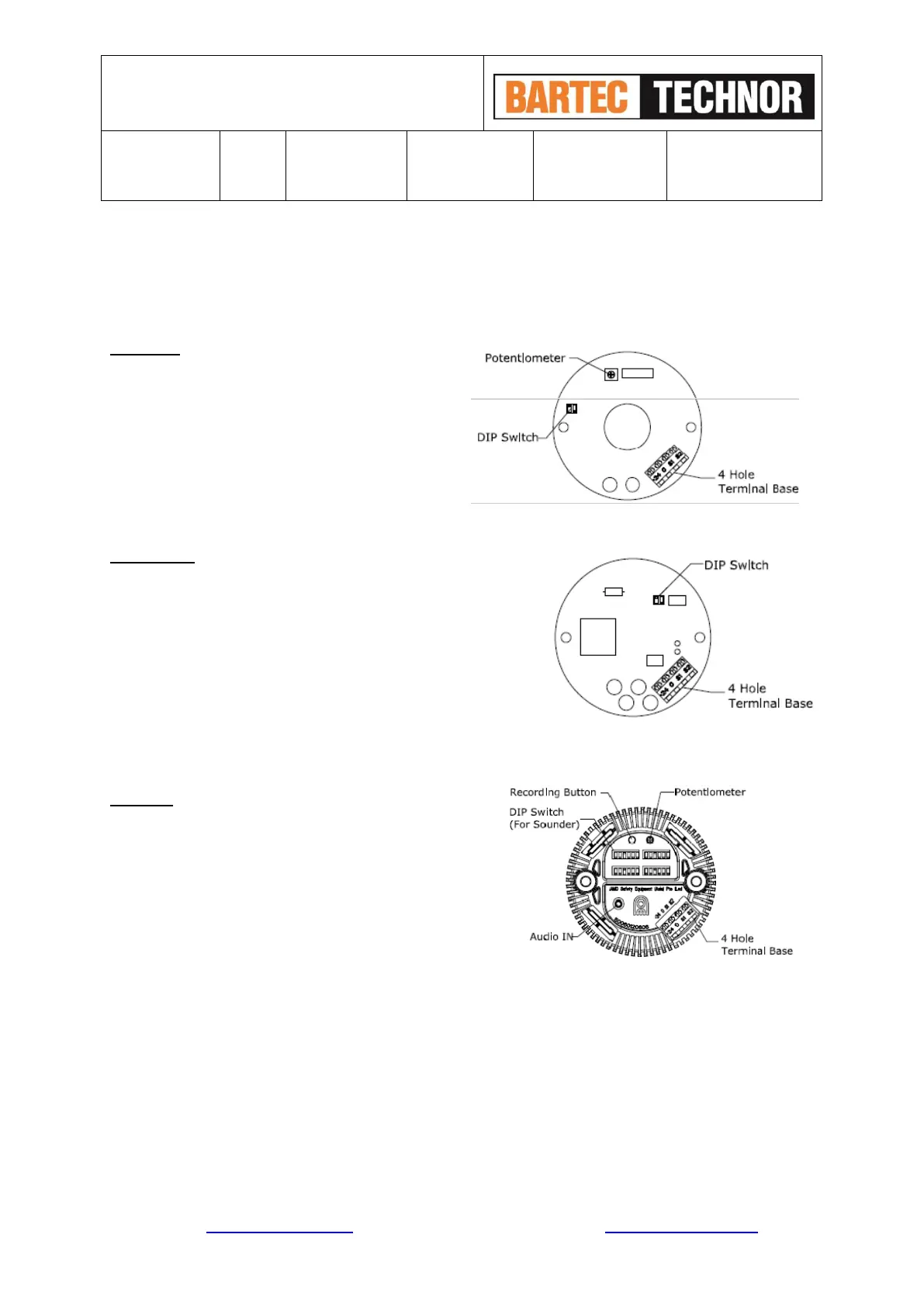

PCB WIRING TERMI NA LS SINGLE UNIT ( DC)
LED Type: (See Fig 4)
0: Power input DC 0/COM
+24V: Power input DC 24V +
S1: Switch 1 for alarm stage selection
S2: Switch 2 for alarm stage selection
Fig. 4
Xenon Type: (see Fig. 5)
0: Power input DC 0/COM
+24V: Power input DC 24V +
S1: Switch 1 for alarm stage selection
S2: Switch 2 for alarm stage selection
Fig. 5
Sounder: (see Fig. 6)
0: Power input DC 0/COM
+24V: Power input DC 24V +
S1: Switch 1 for alarm stage selection
S2: Switch 2 for alarm stage selection
Fig. 6
