If the TPM requires tyre deflation (of the order of 10PSI), then
deflate the tyre, then place the tool alongside the stem whilst
pressing the test key.

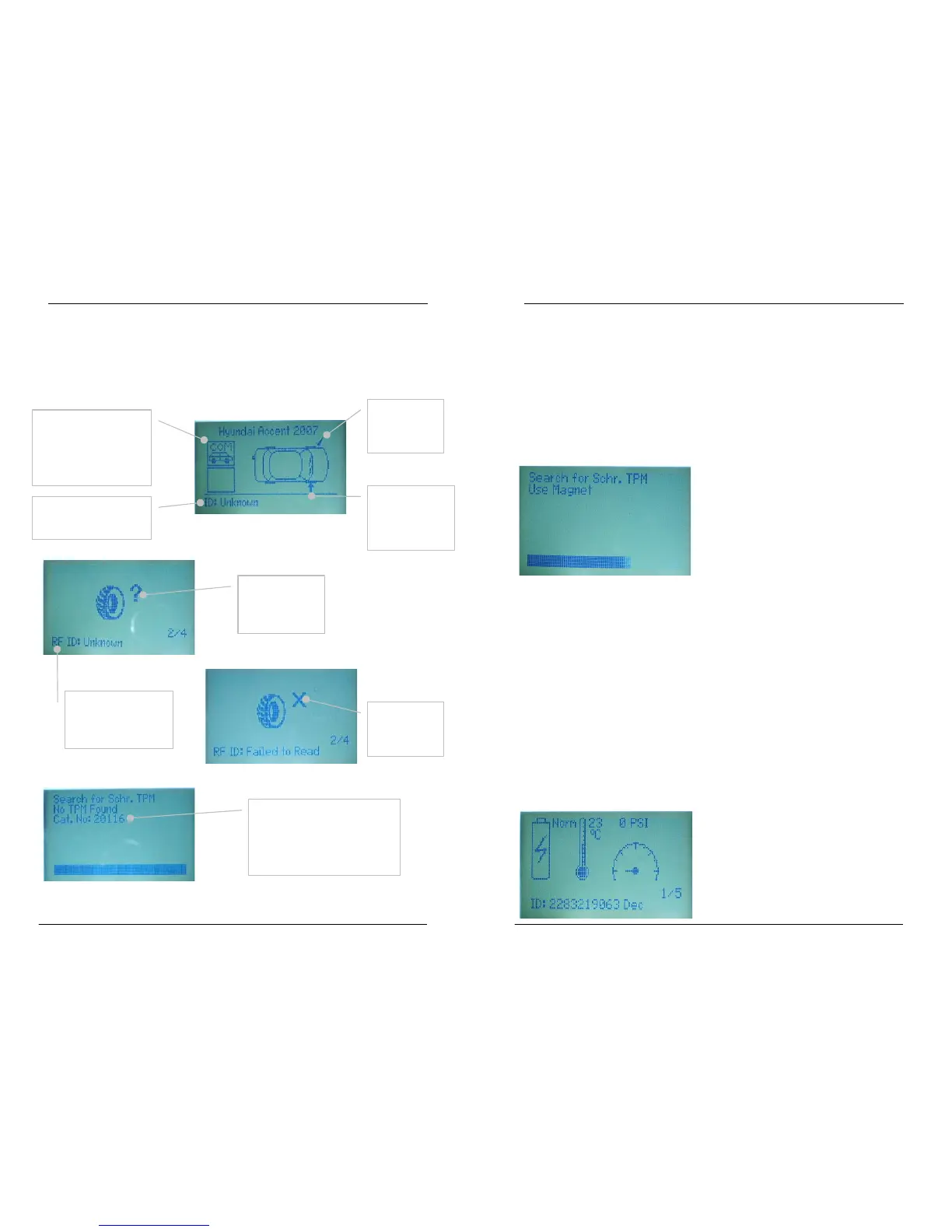

RESULTS/ TEST DISPLAY AREA and DESCRIPTION
Depending upon the chosen mode (1 or 4 wheels), different
screens may be displayed- results and audit test screens are shown
below.
During testing, the screen confirms the TPM type being tested and
displays a pr
ogress bar.
Tick
indicates
read OK
The progress bar shows the maximum possible time for a successful
read- different makes of TPM respond at different speeds/ time
intervals.
COM indicates
vehicle
communications
are available
Arrow
indicates
next wheel
to be read
This TPM is not yet
read
? indicates
not yet read
TPM activation can be aborted at any time by pressing the ESC
key
. When the activation is aborted, the user will be returned to
the previous menu.
TPM Found Response
If a TPM of the indicated type is found, then the Bartec Tech 400
will
emit a series of tones that follows the pattern of received data.
RF indicates
wheel position-
Right Front
X indicates
failed to
read
Depending upon the reading mode (1 or 4 wheel), results are
displayed in different manners.
In 1 wheel mode, TPM data will be stored and displayed
imme
diately.
When TPM fails, the
catalogue number is
displayed (where
available)
