WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
23
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201
CREATED: 07/04
REVISED: 05/10
Item Part Number Description Qty. Item Part Number Description Qty.
27 10897 Flat Washer, 10mm 4 52 10755 Square head set screw, M10, 1.5 lg 4
31 11621 Lockwasher, M10 2 53 10867 Hex Jam Nut, M10-1.5 4
32 10200 Yoke Arm, sm 1 54 10757 Carriage Bolt 4
35 10349 Yoke Arm Pin 1 55 10758 Blade lock bolts 4
36 10743 Lock Pin, 10mm 1 56 10000 Spiderplate 1
47
20646 Finish Blade - 15cm x 35cm metric 4 57 10681 Lift Lever, sm 1
20415 Clip on Float - 10”x14” 4 58 10059 SHCS, M10-1.5x25mm lg 1
20483 Combo Blade - 20cm x 35cm metric 4 59 10760 Cap Plug 1
20414 Finish Blade, 6”x14” - imperial 4 60 10761 Grease Fitting 4
20479 Combo Blade, 8”x14” - imperial 4 61 10660 Pressure Plate 1
48 10001 Trowel Arm 4 62 10664 Thrust Bearing 6009-2RS 1
49
10452 HHCS, M8-1.25x10mm - metric 4 63 10668 Press Plate Cap 1
10401 HHCS, 5/16-18”x1 1/2” lg - imperial 4
108 10286
Spiderplate assembly (blades and
hardware not included)
1
50
11614 Lockwasher, M8 4
10402
Lockwasher - 5/16, med. split - imperial
4

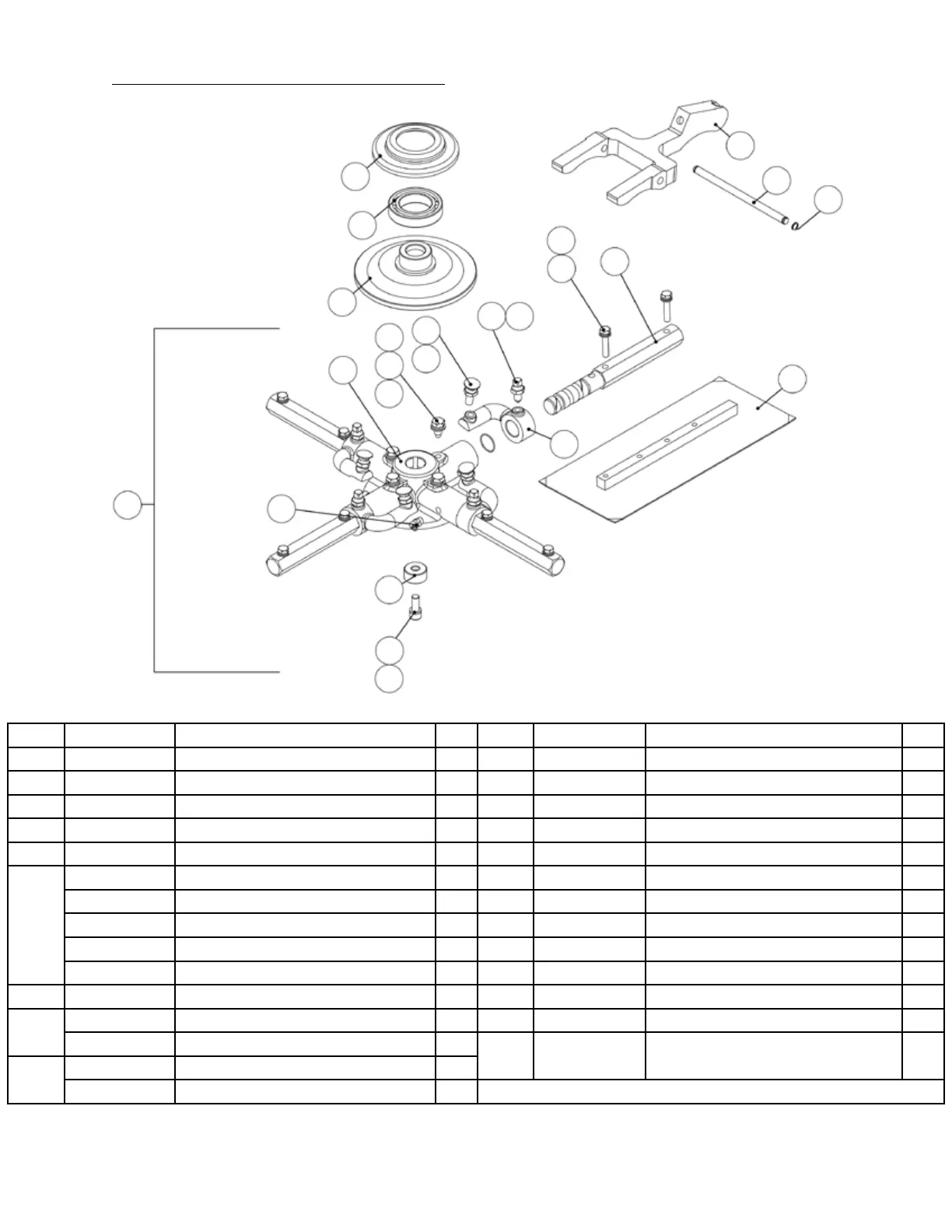

SPIDERPLATE ASSEMBLY (BC90/BC436)
63
62
61
56
55
31
27
54
53
52 53
49
50
48
47
32
35
36
57
31
58
59
60
108
17
To Next Page
