Bartell BC90 - Gearbox Assembly - Complete (Bc90;Bc436)

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX 732-566-5444
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
23
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201
CREATED: 07/04
REVISED: 05/10

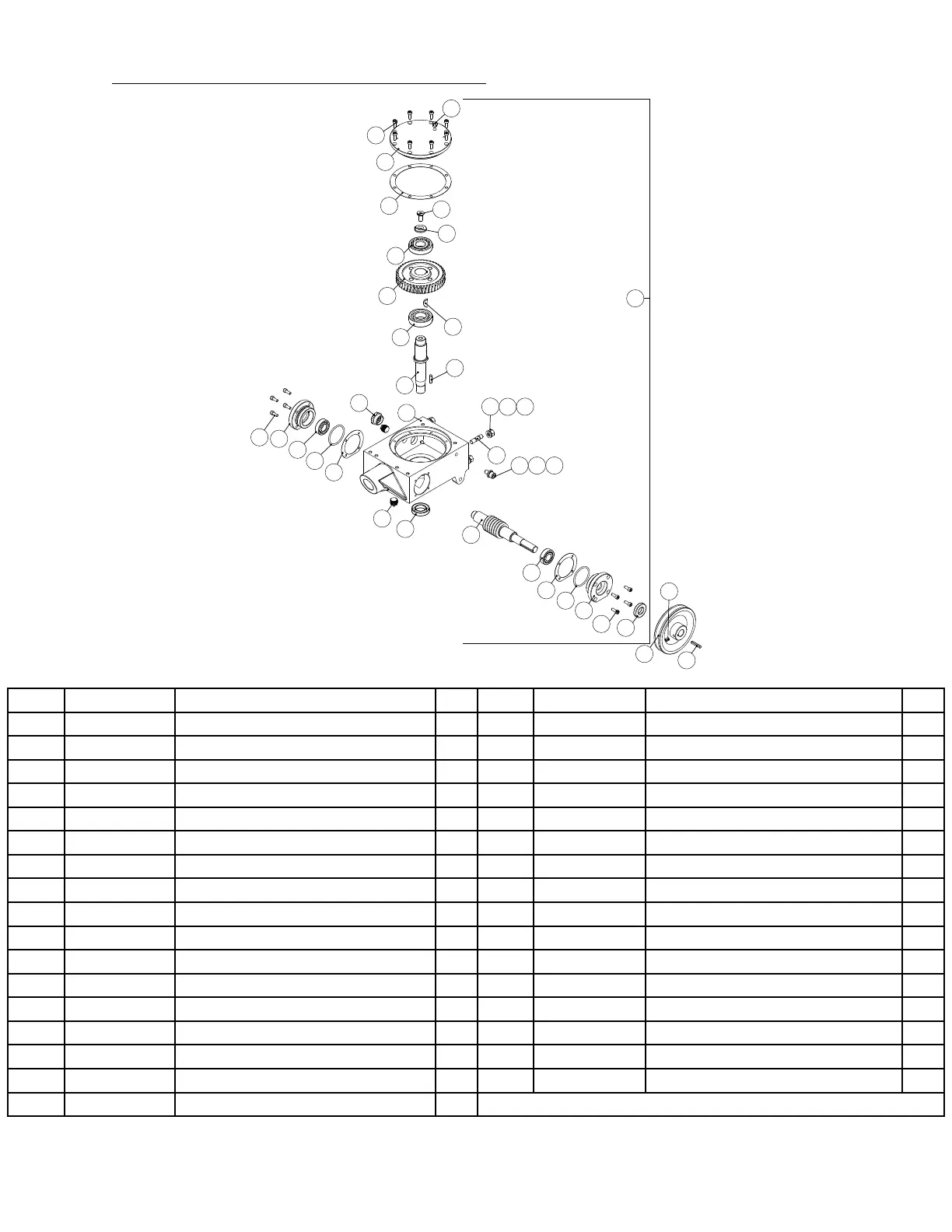

GEARBOX ASSEMBLY - COMPLETE (BC90/BC436)
Item Part Number Description Qty. Item Part Number Description Qty.
27 10897 Flat washer, 10mm 1 67 10764 Flange 1
31 11621 Lockwasher, M10 2 68 10682 Sight glass/oil gauge 1
33 10741 Stud 1 69 10765 Gearbox (casing only) 1
34 11834 SHCS, M10-1.5x16mm 70 11802 Locknut, M10-1.5, nylon insert 1
37 10284 Countershaft w/worm 1 71 10767 Key 1
38 10744 Bearing 32004 1 72 10232 Mainshaft 1
39 10745 Gasket 2 73 10768 Bearing 6206 1
40 10746 O-ring 2 74 10769 Woodruff key 1
41 10747 Flange, sm 1 75 10285 Main gear 1
42 10748 SHCS, M6-1.0x16mm 16 76 10770 Bearing 30305 1
43 10749 Oil seal 20408 1 77 10771 Washer 1
44 10350 Pulley 1 78 10772 M10x2.5 Hex Screw 1
45 10759 SHSS, M8-1.25x10mm 1 79 10773 Gasket 1
46 10751 Key, 5mm x 35mm 1 80 10774 Gearbox cover 1
64 10762 Oil seal 274710 1 81 10775 Release valve 1
65 10763 Bolt, oil drain 1 109 10100 Gearbox assembly (complete) 1
66 31272 Bearing 6004 1
81
42
80
79
78
77
76
75
74
73
71
72
68
69
42
67
66
40
39
65
64
37
38
39
40
41
42
43
45
44
46
109
33
70
31
27
34 31
27
19
