WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
23
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201
CREATED: 07/04
REVISED: 05/10

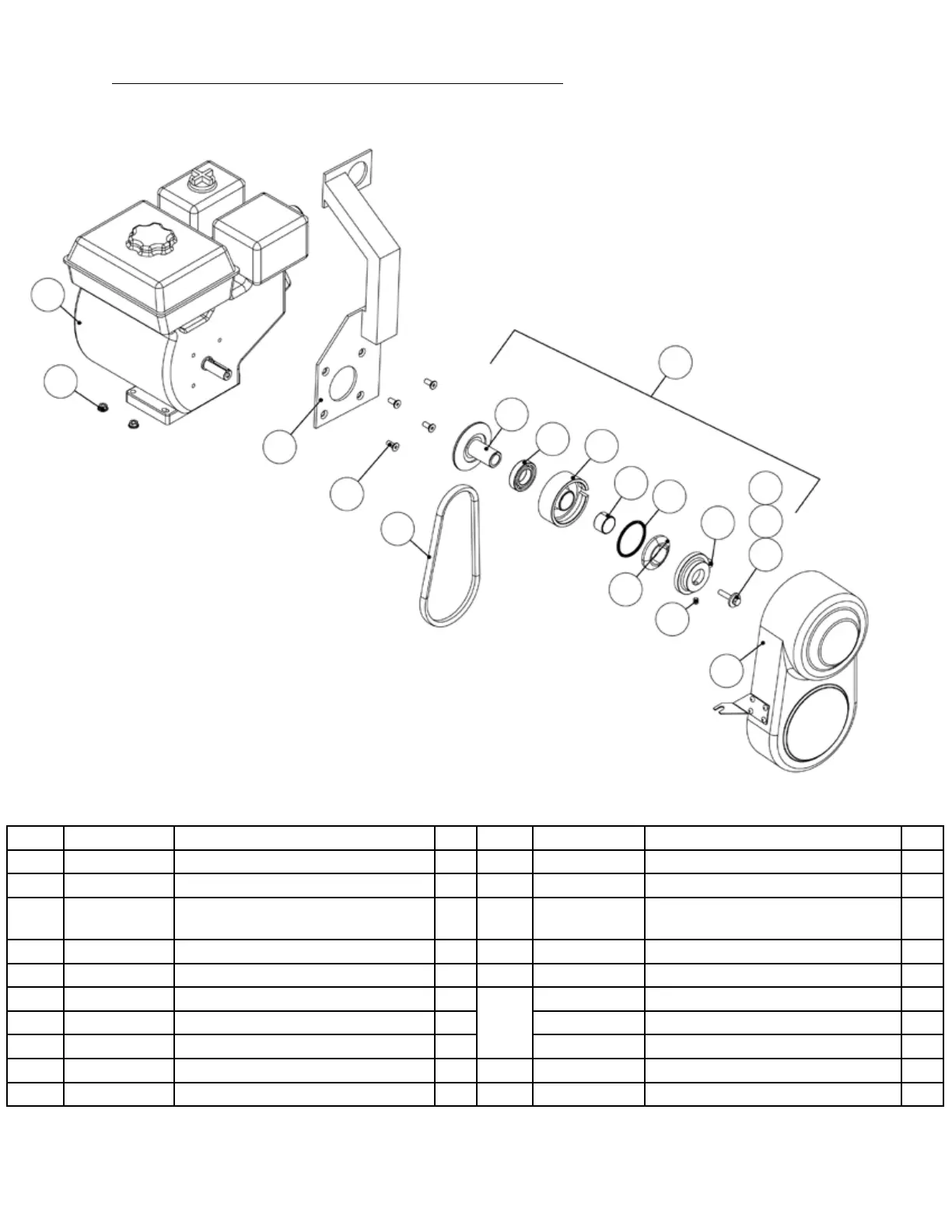

ENGINE/CLUTCH/HOIST HOOK ASSEMBLIES (BC120/BC446)
Item Part Number Description Qty. Item Part Number Description Qty.
59 13491 Lock washer, 7/16” 2 96 11044 Bearing 6007-2RS 1
84 10331 Belt guard 1 97 11045 Spindle 1
88 981135 HHCS, 7/16”-20 x 1/4” LG 1 98 11178
Belt - B29 (Gates Only)
GX270/GX340/GX390
1
89 11355
Plate washer, 50mm x 10mm x 4mm
1 99 30041 FHSCS, 5/16-24 x 3/4”LG 4
90 11015
Faceplate
1 100 10300 Hoist Hook 1
91 50117 Set Screw 1
101
21334 Engine-GX270 1
92 11014 Weight 1 21321 Engine-GX340 1
93 10759 Clutch spring 1 21335 Engine-GX390 1
94 11012 Copper bushing 1 102 11802 M10 nut 8
95 21046 Clutch drum w/bushing 1 114 21029 Clutch assembly (complete), lg 1
114
89
59
88
90
91
92
93
94
95
96
97
98
99
100
102
101
84
28
