WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
23
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201
CREATED: 07/04
REVISED: 05/10

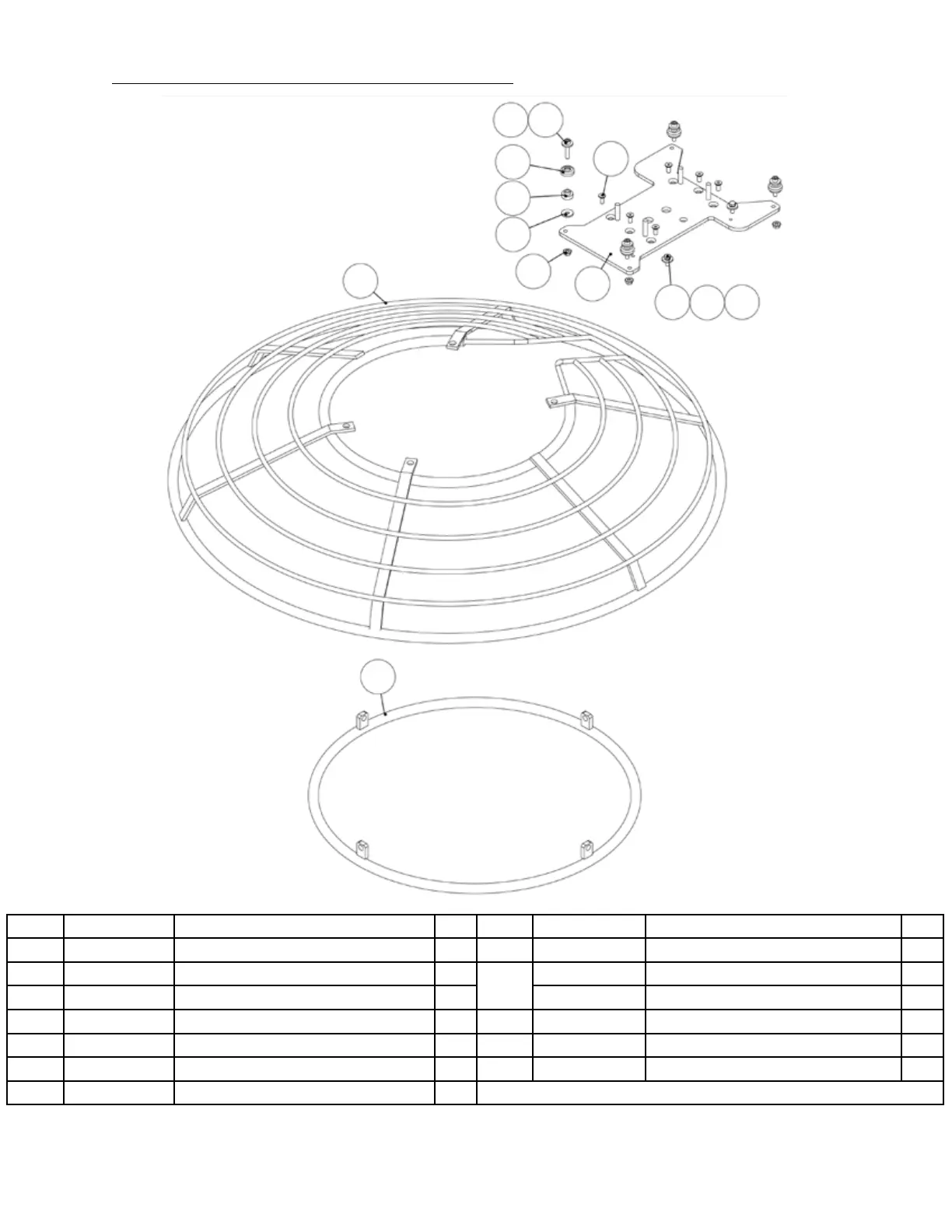

SAFETY RING ASSEMBLY/MTG PLATE (BC120/BC446)
103
104
105
106
107
102
109
110
50
104
111
112
108
Item Part Number Description Qty. Item Part Number Description Qty.
50 11614 Lock washer, 8mm 13 108 10792 FHSCS 1
102 11802 M10 nut 8
109
10340 Mtg plate-GX270 1
103 10787 SHCS 4 10341 Mtg plate-GX340/GX390 1
104 10788 Plate washer, 8mm x 20mm x 2mm 4 110 11515 HHCS 2
105 11358 Cup Washer 4 111 20655 Guard ring (removable) 46” 1
106 10790 Rubber bushing 4 112 11360 Inner stab ring 1
107 10791 Plate washer, 8mm x 26mm x 3mm 4
