WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
23
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201
CREATED: 07/04
REVISED: 05/10

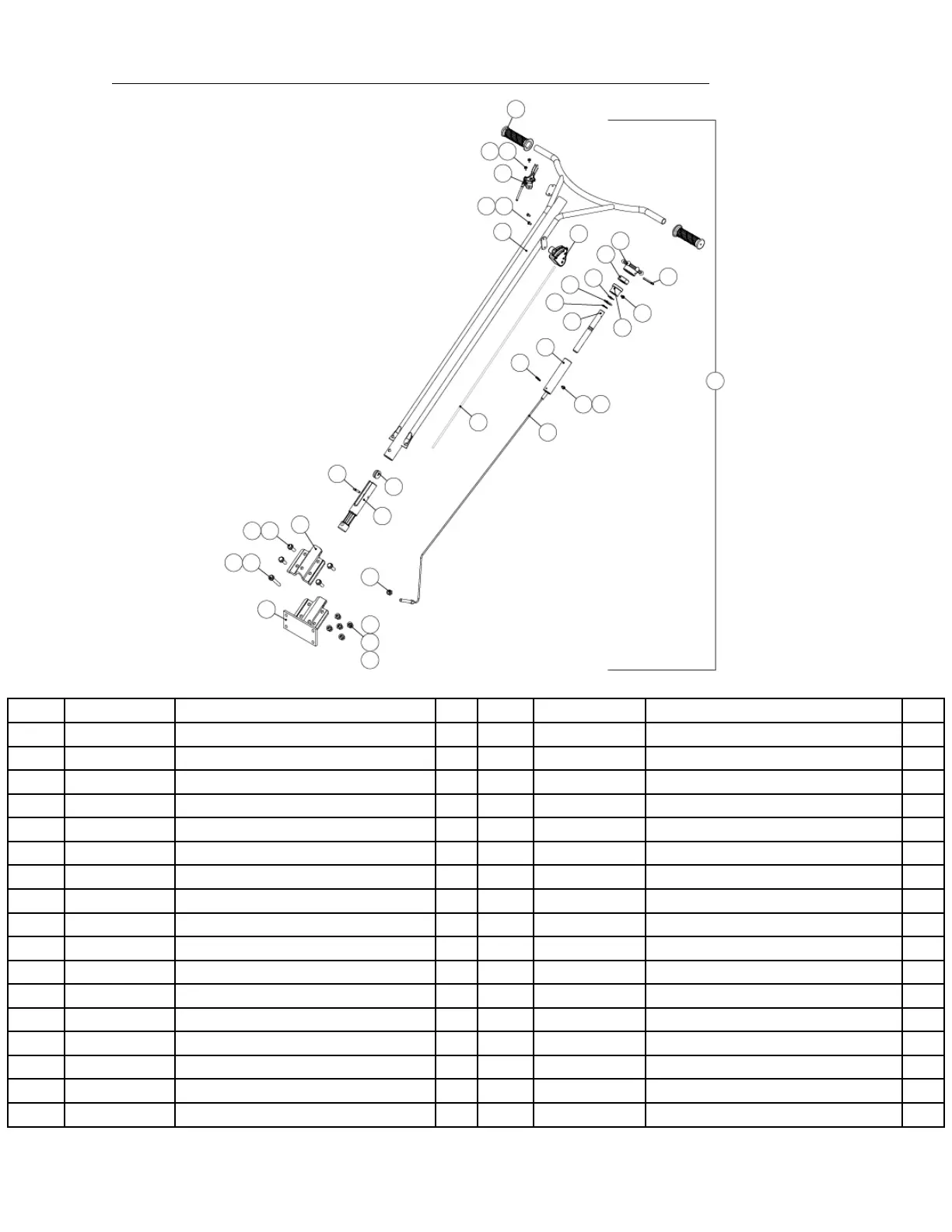

HANDLE ASSEMBLY, BLACK PAINTED: FINE PITCH - COMPLETE (BC120/BC446)
1
23
4
56
7
8
9
10
11
12
13
14
15
16
17
19
20
17
18
21
22
23
24
25
26
27
27
28
29
30
31
27
30
Item Part Number Description Qty. Item Part Number Description Qty.
1 10684 Handle Grips (ea) 2 17 10694 M6-8 inner hex bolt 2
2 21728 RHMS, M5-0.8x8mm 2 18 14448 6mm spring washer 1
3 10793 Flat washer, 4mm 2 19 10800 Slide bushing 1
4 10508 Throttle cable assembly 1 20 10696 5mm-30 spring pin 1
5 21728 RHMS, M5-0.8x8mm 2 21 10876 Pitch control cable 1
6 10703 Lockwasher, 5mm 2 22 10877 Pulley 1
7 10794 Handle (tube only) - powder coated 1 23 10878 6mm-30 pin 1
8 20713 Deadman switch (centrifugal style) 1 24 10879 Cable support block 1
9 10795 Pitch adjust knob 1 25 10880 Handle clamp (upper) 1
10 10689 Pin, 5x50 1 26 10077 M10x35 hex bolt 4
11 10796 Bearing 51204 1 27 10897 Flat washer, 10mm 14
12 10797 Pitch control bushing 1 28 13349 M10x70-30 hex bolt 1
13 10798 Wave washer, 18mm 1 29 10898 Handle clamp (low) 1
14 10692 20mm x 34mm x 3mm plate washer 1 30 11802 M10 self lock nut 6
15 10693 Lock pin, 18mm 1 31 11621 Spring washer, 10mm 10
16 10799 Pitch adjust shaft 12 32 20703 Wire Assembly 1
116 20670 Handle assembly (complete) 1
116
24
32
