BASF D 6160 - Page 7

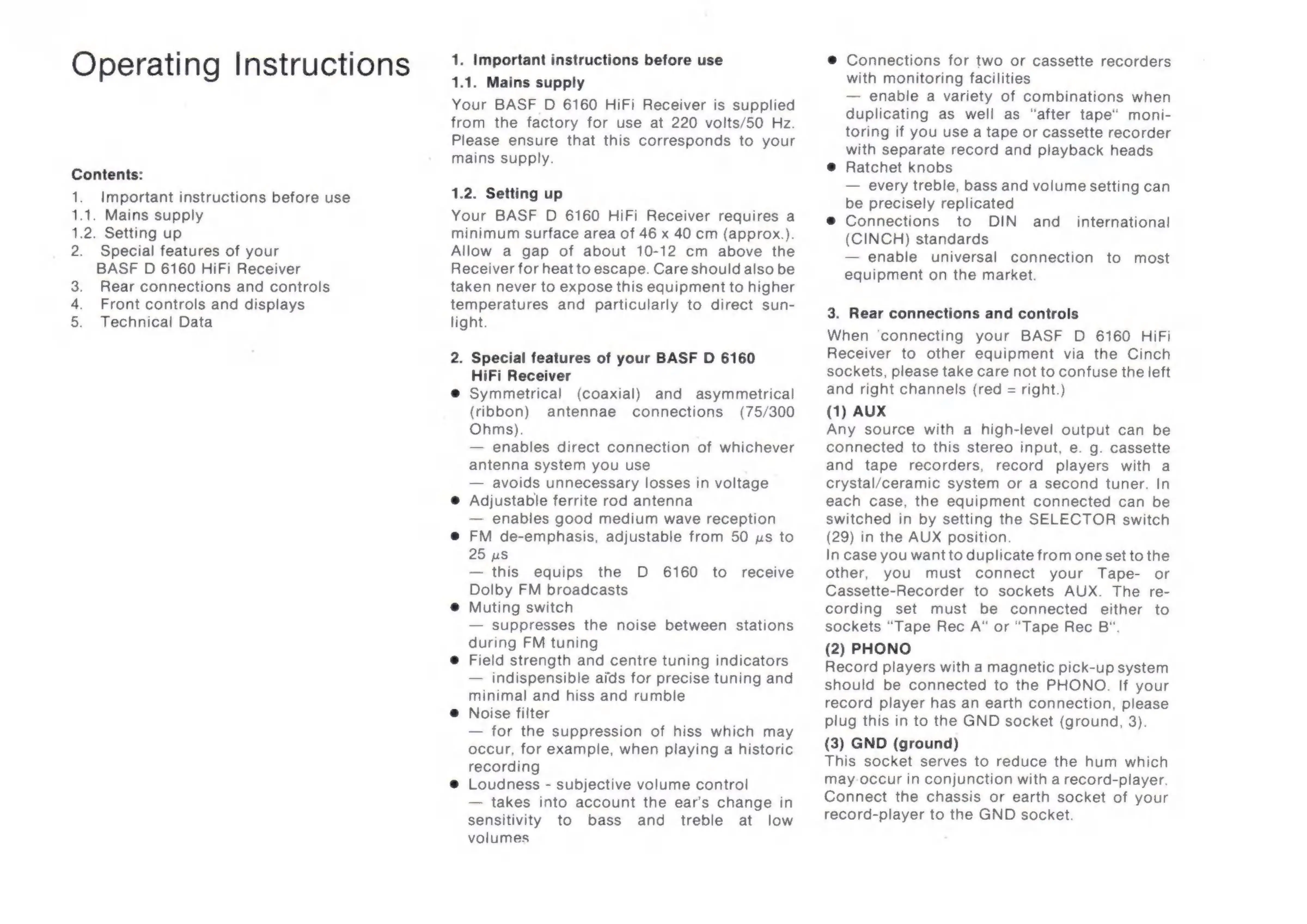

Operating Instructions
Contents:
1. Important instructions before use
1.1. Mains supply
1.2. Setting up
2. Special features of your
BASF D 6160 HiFi Receiver
3. Rear connections and controls
4. Front controls and displays
5. Technical Data
1. Important instructions before use
1.1. Mains supply
Your BASF D 6160 HiFi Receiver is supplied
from the factory for use at 220 volts/50 Hz.
Please ensure that this corresponds to your
mains supply.
1.2. Setting up
Your BASF D 6160 HiFi Receiver requires a
minimum surface area of 46 x 40 cm (approx.).
Allow a gap of about 10-12 cm above the
Receiver for heat to escape. Care should also be
taken never to expose this equipment to higher
temperatures and particularly to direct sun-
light.
2. Special features of your BASF D 6160
HiFi Receiver
@ Symmetrical (coaxial) and asymmetrical
(ribbon) antennae connections (75/300
Ohms).
— enables direct connection of whichever
antenna system you use
— avoids unnecessary losses in voltage
e
Adjustable
ferrite
rod
antenna
—
enables
good
medium
wave
reception
@ FM de-emphasis, adjustable from 50 us to
25 us
— this equips the D 6160 to receive
Dolby FM broadcasts
@
Muting
switch
—
suppresses
the
noise
between
stations
during
FM
tuning
e Field strength and centre tuning indicators
— indispensible aids for precise tuning and
minimal and hiss and rumble
e
Noise
filter
—
for
the
suppression
of
hiss
which
may
occur,
for
example,
when
playing
a
historic
recording
@ Loudness - subjective volume control
— takes into account the ear's change in
sensitivity to bass and treble at low
volumes
e
Connections
for
two
or
cassette
recorders
with
monitoring
facilities
—
enable
a variety
of
combinations
when
duplicating
as
well
as
“after
tape“
moni-
toring
if
you
use
a
tape
or
cassette
recorder
with
separate
record
and
playback
heads
@ Ratchet knobs
— every treble, bass and volume setting can
be precisely replicated
@ Connections to DIN and
(CINCH) standards
—
enable
universal
connection
to
most
equipment on the market.
international
3. Rear connections and controls
When connecting your BASF D 6160 HiFi
Receiver to other equipment via the Cinch
sockets, please take care not to confuse the left
and right channels (red = right.)
(1) AUX
Any source with a high-level output can be
connected to this stereo input, e. g. cassette
and tape recorders, record players with a
crystal/ceramic system or a second tuner. In
each case, the equipment connected can be
switched in by setting the SELECTOR switch
(29) in the AUX position.
In case you want to duplicate from one set to the
other, you must connect your Tape- or
Cassette-Recorder to sockets AUX. The re-
cording set must be connected either to
sockets “Tape Rec A“ or “Tape Rec B“.
(2) PHONO
Record players with a magnetic pick-up system
should be connected to the PHONO. If your
record player has an earth connection, please
plug this in to the GND socket (ground, 3).
(3) GND (ground)
This socket serves to reduce the hum which
may occur in conjunction with a record-player.
Connect the chassis or earth socket of your
record-player to the GND socket.
