TOOL kIT PARTS LISTING
E85515 Upholstery Tool
E88959 Spray Jet
E88960 Extension, Spray Wand
E88961 Brush, Flip Tool
E88963 Retaining Ring
E88964 Carpet Head Assembly
E88965 Trigger Valve
E88969 Mounting Bar, Brush
E88970 O-Ring
E88971 Screw, Squeegee Mount
E88972 Screw, Brush Mount
E88973 Squeegee Blade
E88976 Spray Wand Assembly
E88978 Solution Hose, Spray Wand
E89551 Screw, Brush Mount Bar"
EP50171 Brush Assembly, Complete
EP50172 Complete Flip Tool Assembly With Brush
Part # Description Part # Description

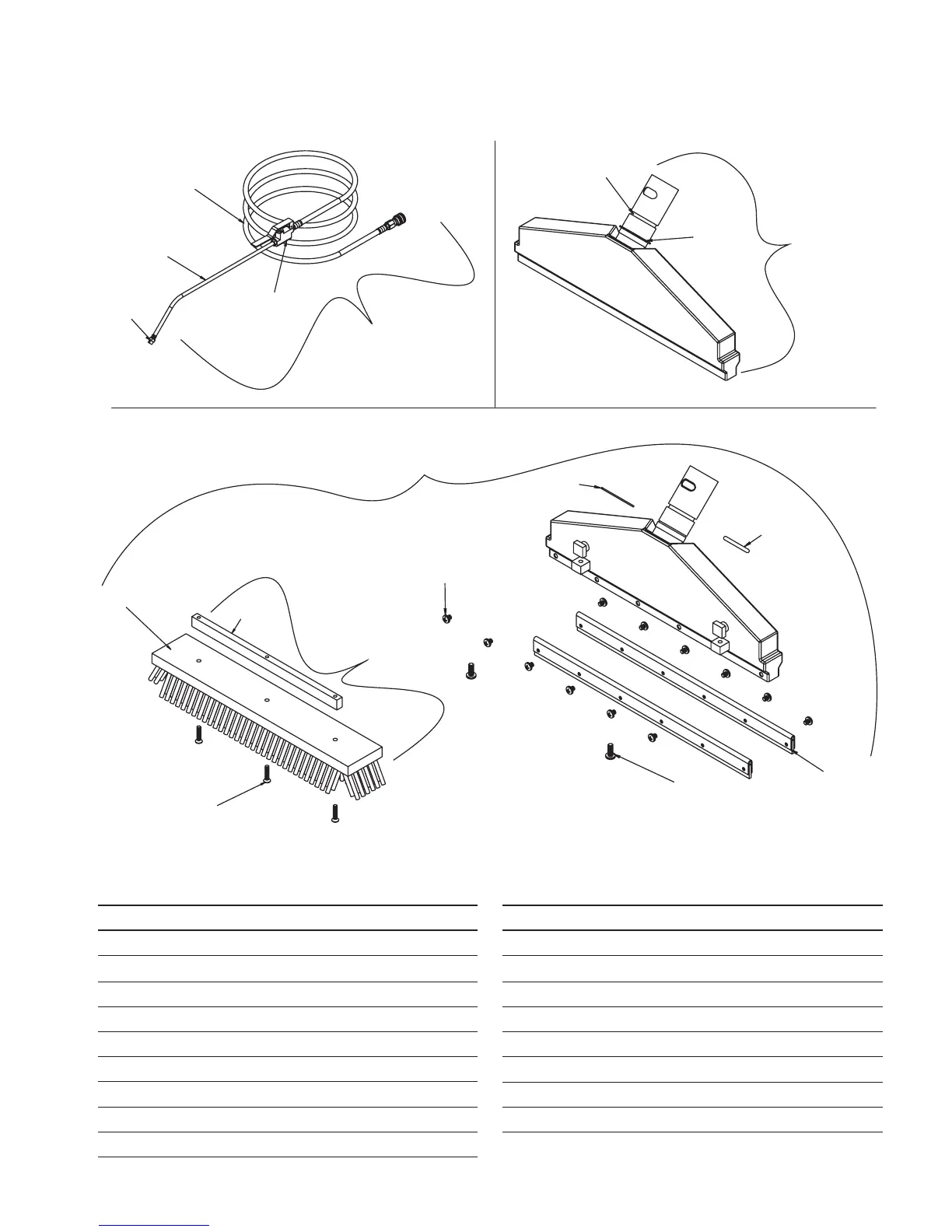

TOOL kIT DIAGRAM
Tool Head
FLIP TOOL
BRUSH ASSEMBLY
EP50171
E89551
E88961
E88969
E88959
E88960
E88965
E88978
SPRAY WAND
ASSEMBLY
E88976
E88963
E88970
CARPET HEAD
ASSEMBLY
E88964
E88963
E88970
E88972
E88973
E88971
FLIP TOOL
ASSEMBLY
EP50172
