SECTION 2 • CONTROLS AND INDICATORS
INTRODUCTION
Controls and indicators are located on the front panel. The controls and indicators are shown in Figure 2-
1 and described in Table 2-1. Figure 2-1 illustrates a relay with the maximum number of controls and
indicators. Your relay may not have all of the controls and indicators shown and described here.

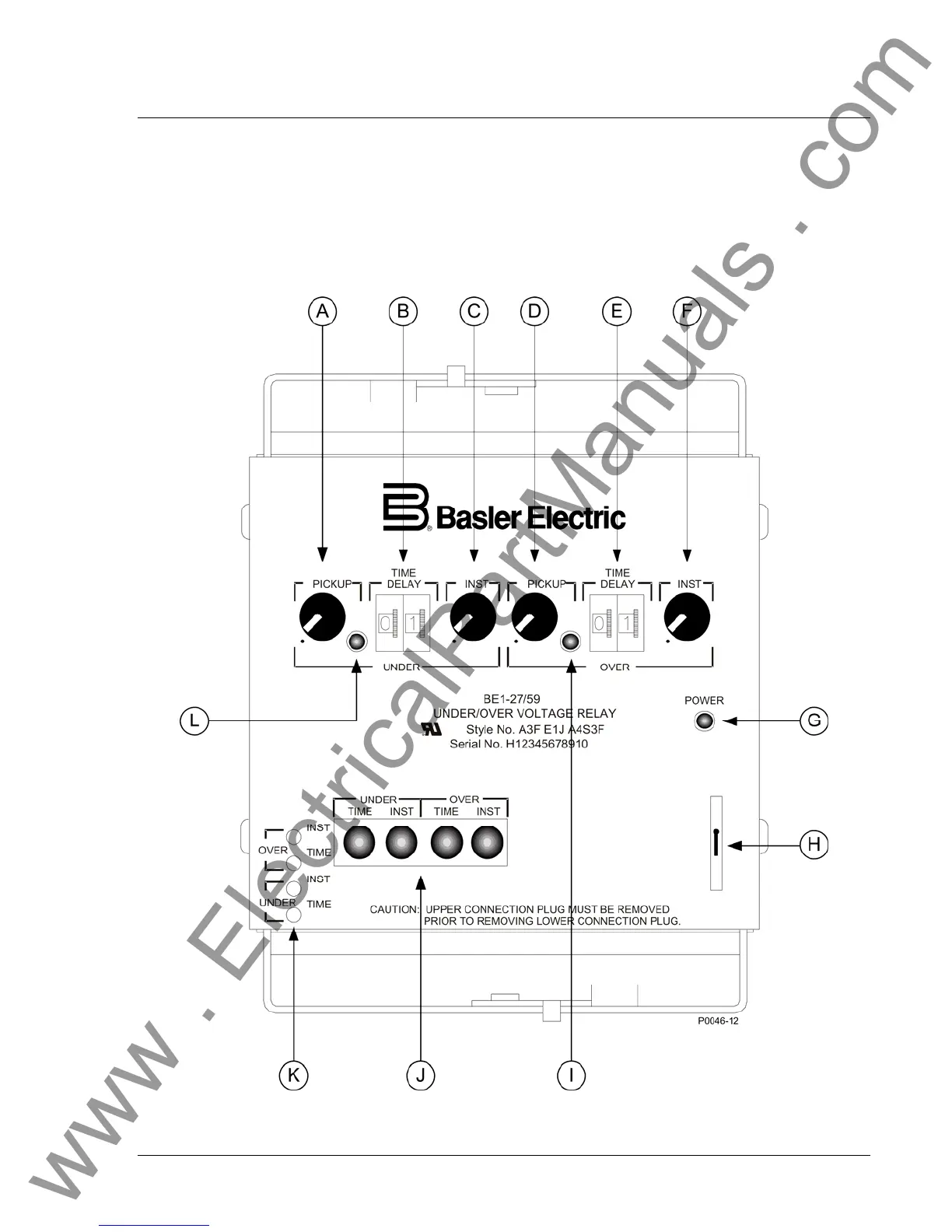

Figure 2-1. Location of Controls and Indicators
9170600990 Rev H BE1-27/59 Controls and Indicators 2-1
