Basler V3E Z1P B2C1F - Page 40

4-8 BE1-51 Installation 9137200997 Rev D

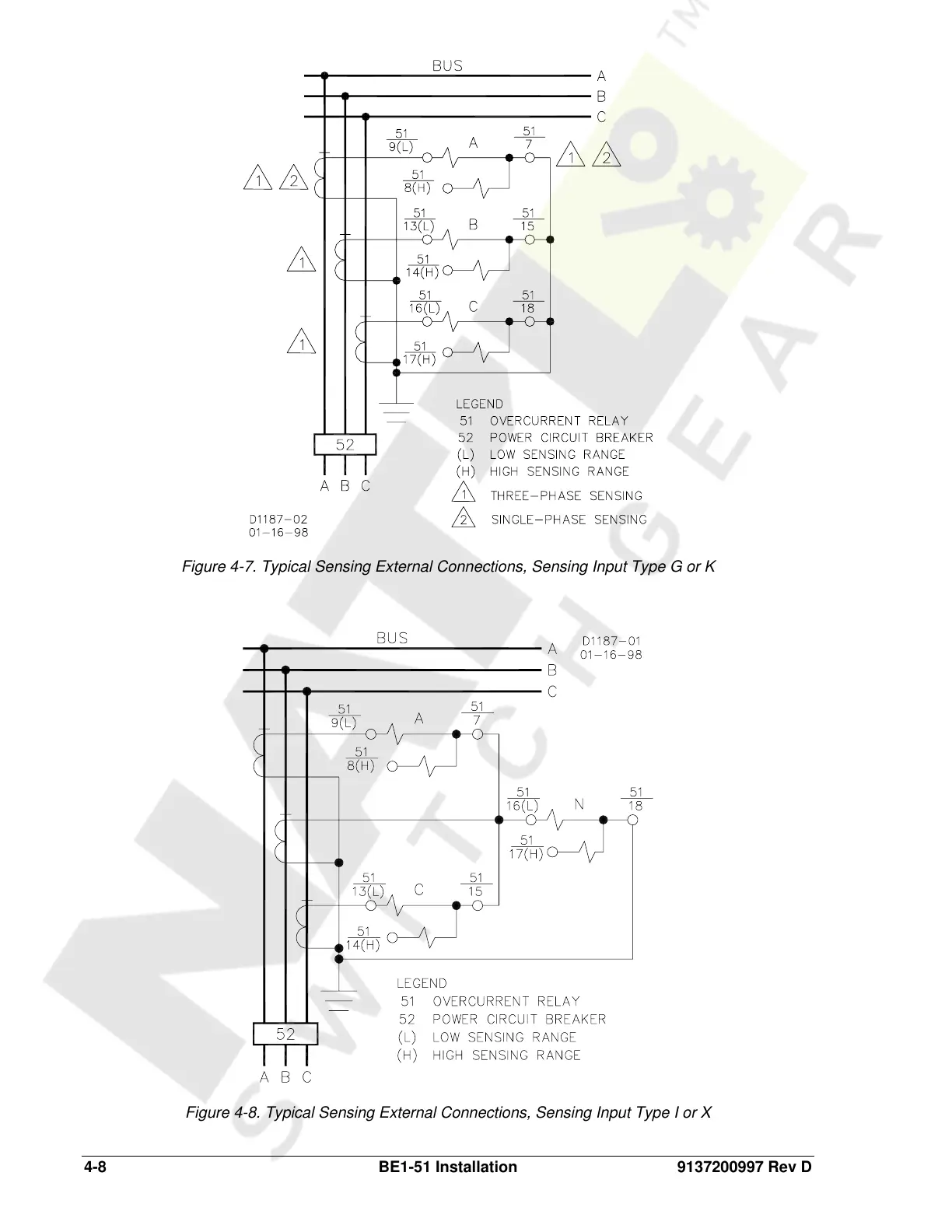

Figure 4-7. Typical Sensing External Connections, Sensing Input Type G or K
Figure 4-8. Typical Sensing External Connections, Sensing Input Type I or X
